Voltage Range 48V DC
Dimensions 50 mm x 27 mm x 1000 mm
Width 27 mm
Height 50 mm
Voltage Range
48V DC
Dimensions
50 mm x 27 mm x 1000 mm
Width
27 mm
Height
50 mm
Fitting Material
Aluminium
Magnetic Track 20mm 1m Suspended 48V
Ref. Ledkia: 88674
Colour Black
20,29 €
VAT includedPre-Order, estimated shipping from 27/05/2026
Are you a lighting professional or a company?
- Great discounts off PVP
- Extended Warranty
- Exclusive Services
Buy now, pay later
Credit payment30 calendar days to return
You can renounce to this product during the first 30 calendar days from receipt, provided that the product remains in perfect condition for use.
Custom-made products and cut-to-size strips are excluded.
Full conditions here: After-Sales Service.
5-7 days Delivery
If you place your order today before 18:00h, delivery within 5-7 days (working days).
Shipping is free on purchases over 49,99 € (incl. VAT).
Full conditions here: Shipping methods.
100% secure payments
At Ledkia we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation.
More information: Payment methods.
Warranty up to 5 years
Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.
You will find the exact product warranty in the technical details.
Full conditions here: After-Sales Service.

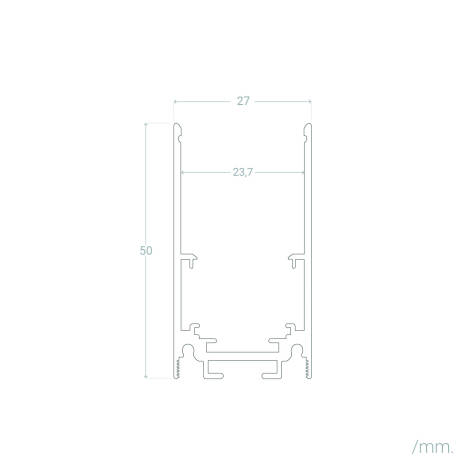

Dimensions
- Weight1.1 kg
- Depth1000 mm
- Width27 mm
- Height50 mm
Downloads
Technical Data Sheet PDF
DoC_88674_184902
Certificates and Stamps
Technical Specifications
Mechanical Features
- InstallationSurface
- LocationIndoor
- Type Of TrackMagnetic 20 mm
Product Information
- CertificatesCE, RoHS, UKCA
- Guarantee3 years
- Product SeriesBosia
Electrical Features
- Voltage Range48V DCVoltage level required for the product to function correctly.
Materials and Finishes
- ColourBlack
- Fitting MaterialAluminium
Driver Information
- WifiNo
Description

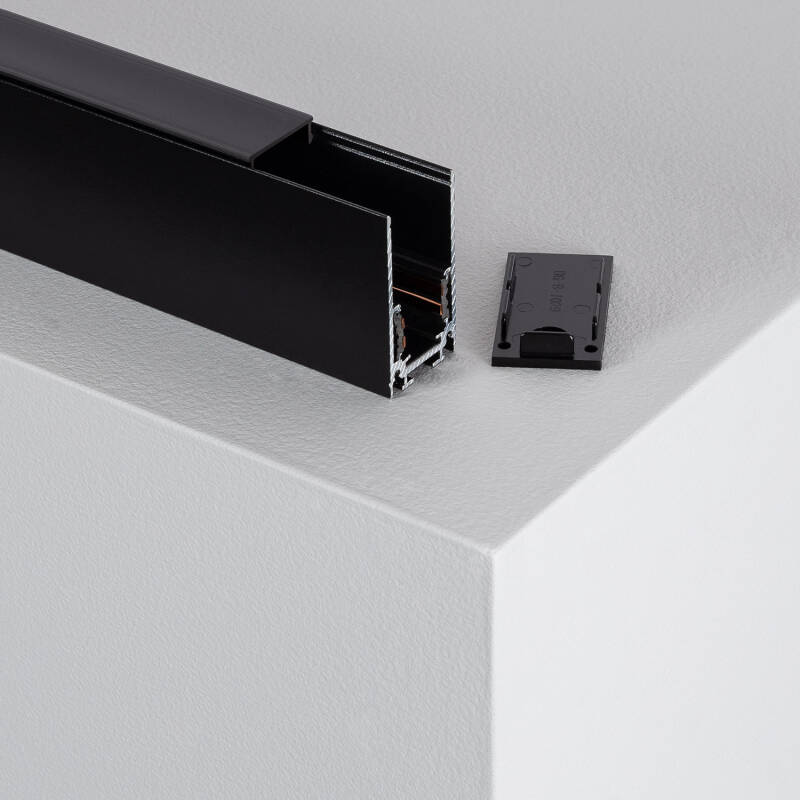

The 1m Suspended 20mm 48V Magnetic Track is the main component for installing the 48V Magnetic Track Spotlights. This system makes working with the lighting much easier, as the lamps can be installed and moved along the track without the need for specific tools.
Features of the 1m Suspended 20mm 48V Magnetic Track
The 20mm Single Circuit Magnetic Track is manufactured from high quality materials. With magnetic rail systems we save on maintenance costs and get a higher quality light.
This track can be powered by a 48V DC 150W 3.12A Power Supplywhich is inserted into the track or by an external power supply using the Connector with Cable for External Power Supply for 20mm 48V Magnetic Track. Also included is a 1 metre cover to cover the space between the spotlight and the spotlight and a suspension kit for hanging the track.
Installation of the 1m Suspended 20mm 48V Magnetic Track
To install the Suspended Magnetic Track we will have to screw the steel cable to the ceiling. Then remove the nut from the head and insert it into the track and screw the other part of the head to join the track to the head of the steel cable.
Its applications are mainly in spaces such as showrooms, premises with different atmospheres, halls, shopping centres, clothes shops, furniture shops and, in general, commercial spaces that are always being re adapted according to the products to be exhibited and need a good quality of light.
* For the connection between rails, the Feed Connector for 20mm 48V Magnetic Track or the Feed Connector for Corner Connections 20mm 48V Magnetic Trackis required.
