  • 5 mm x 12 mm x 7 m
    Dimensions 5 mm x 12 mm x 7 m
  • 12 mm
    Width 12 mm
  • 5 mm
    Height 5 mm
Image of 220V AC 120 LED/m High Lumen Daylight 6000K - 6500K IP65 Dimmable 12mm Wide LED Strip Autorectified Custom Cut every 10 cm
    Image of 220V AC 120 LED/m High Lumen Daylight 6000K - 6500K IP65 Dimmable 12mm Wide LED Strip Autorectified Custom Cut every 10 cm
    Image of 220V AC 120 LED/m High Lumen Daylight 6000K - 6500K IP65 Dimmable 12mm Wide LED Strip Autorectified Custom Cut every 10 cm
1 / 2
  • 5 mm x 12 mm x 4 m

    Dimensions

    5 mm x 12 mm x 4 m

  • 12 mm

    Width

    12 mm

  • 5 mm

    Height

    5 mm

  • 220-240V AC

    Voltage Range

    220-240V AC

  • Daylight

    Light Colour

    Daylight

  • Daylight

    Light Colour

    Daylight

  • 10 cm

    Cut Points

    10 cm

  • 50 m

    LED Strip Installation

    50 m

  • TRIAC

    Type Of Dimming

    TRIAC

  • 0.91

    Power Factor

    0.91

  • IP65

    IP Rating

    IP65

  • No

    Battery Operated

    No

  • 107 lm/W

    Luminous Efficiency

    107 lm/W

  • PCB, Resin, Silicone

    Fitting Material

    PCB, Resin, Silicone

  • Yes

    Dimmable

    Yes

220V AC 120 LED/m High Lumen Daylight 6000K - 6500K IP65 Dimmable 12mm Wide LED Strip Autorectified Custom Cut every 10 cm

Download technical datasheet

Ref. Ledkia: 85458

Length 4 m

143,32 €

VAT included

In Stock, delivery in 15-20 days

PRO CLUB badge

Are you a lighting professional or a company?

  • Great discounts off PVP
  • Extended Warranty
  • Exclusive Services

Buy now, pay later

Credit payment

    • 30 calendar days to return

      You can renounce to this product during the first 30 calendar days from receipt, provided that the product remains in perfect condition for use.


      Custom-made products and cut-to-size strips are excluded.


      Full conditions here: After-Sales Service.

    • 5-7 days Delivery

      If you place your order today before 18:00h, delivery within 5-7 days (working days).


      Shipping is free on purchases over 49,99 € (incl. VAT).


      Full conditions here: Shipping methods.

    • 100% secure payments

      payment method image 1

      payment method image 2

      At Ledkia we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation.


      More information: Payment methods.

    • Warranty up to 5 years

      Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.


      You will find the exact product warranty in the technical details.


      Full conditions here: After-Sales Service.

    • Returns 30 days

      You can renounce to this product during the first 30 calendar days from receipt, provided that the product remains in perfect condition for use.


      Custom-made products and cut-to-size strips are excluded.


      Full conditions here: After-Sales Service.

    • 5-7 days Delivery

      If you place your order today before 18:00h, delivery within 5-7 days (working days).


      Shipping is free on purchases over 49,99 € (incl. VAT).


      Full conditions here: Shipping methods.

    • 100% secure payments

      payment method image 1

      payment method image 2

      At Ledkia we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation.


      More information: Payment methods.

    • Warranty up to 5 years

      Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.


      You will find the exact product warranty in the technical details.


      Full conditions here: After-Sales Service.

Dimensions

  • Width12 mm
  • Length4 m
  • Height5 mm

Videos

  • How to Install Monochrome or RGB LED Strips
Scheme image

Downloads

  • pdf file

    Technical Data Sheet PDF

Certificates and Stamps

CertificateCertificateCertificate

Technical Specifications

  • Electrical Features

    • Electrical Insulation ClassII
    • Frequency50-60 Hz
    • LED Strip Installation50 m
    • Light SourceSMD2835
    • Mains connectionDirect to mains
    • Type Of DimmingTRIAC
    • Voltage level required for the product to function correctly.
      Voltage Range220-240V AC

  • Mechanical Features

    • Temperature range in which the product can operate optimally, ensuring its performance without overheating or damage.
      Ambient Working Temperature-20 °C~+50 °C
    • Measurement at which the product can be cut.
      Cut Points10 cm
    • The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
      IP RatingIP65
    • LocationOutdoor, Indoor

  • LED Features

    • Defines the light tone, from warm white to cool white, measured in Kelvin (K).
      Colour Temperature6000K
    • Estimated lifespan of the product before it loses performance. Based on optimal, non-continuous use, and measured in hours of operation under controlled conditions.
      Hours40.000 hours
    • Light ColourDaylight
    • Luminosity Per Meter1700 lm/m
    • Ratio between light output (lumens) and energy consumed (watts). A high value indicates better efficiency, ideal for saving energy without compromising lighting.
      Luminous Efficiency107 lm/W
    • Number of LEDs Per Metre120 led/m
    • Power Factor0.91
    • Power Per Meter16 W/m

  • Product Information

    • CertificatesCE, RoHS, UKCA
    • Guarantee3 years
    • Product SeriesEDGE-12

  • Materials and Finishes

    • Fitting MaterialPCB, Resin, Silicone

  • Driver Information

    • WifiNo

Description

220V AC 120 LED/m High Lumen Daylight 6000K - 6500K IP65 Dimmable LED Strip Autorectified Custom Cut every 10 cm does not require any type of power supply as it is connected directly to the mains. Its flexibility allows it to adapt to almost any surface.

220V AC 120 LED/m High Lumen Daylight 6000K - 6500K IP65 Dimmable LED Strip Autorectified Custom Cut every 10 cm

The 120 LED/m SMD 2835 LED strip consumes only 16W per meter. Manufactured with top quality materials, it offers maximum protection against solid external agents as well as excellent protection against liquids, which is summarised in the strip's IP65 protection factor, making it suitable for both indoor and outdoor use.

With LED Strip Autorectified 220V AC 120 LED/m Daylight 6000K - 6500K IP65 High Lumen Custom Cut LED Strip every 10 cm includes a rectifier cable and a strip end cap, parts that it is recommended to protect properly, with some silicone or a suitable type of sealant, so that the IP65 protection is not compromised. A maximum of 50 metres of LED strip can be connected to a rectifier.

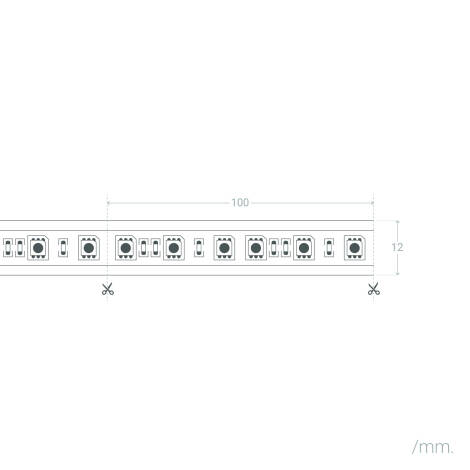

If the strip is to be cut, it must be taken into account that LED strip 220V AC 120 LED/m High Lumen Daylight 6000K - 6500K IP65 LED Strip Autorectified Custom Cut every 10 cm can only be cut in complete 10 cm sections and only in the area provided. Its great flexibility means that it can be adjusted to the particularities of the space or element to be illuminated, although it is not possible to make right angles or acute angles.

220V AC 120 LED/m High Lumen Daylight 6000K - 6500K IP65 Dimmable LED Strip Autorectified Custom Cut every 10 cm

The versatility of this type of LED lighting makes it widely used as secondary lighting and/or decorative element on facades, ceilings, showcases and cabinets, shelves, shop windows, pictures and mirrors and even for the illumination of stairs and corridors. The options are endless.

*For correct operation and to avoid incidents, the connections must be protected with an insulating element against humidity and water.

*LED strips should never be switched on when they are wound up, as this could cause overheating and burn out the LEDs.

* Product made in accordance with your specifications, and therefore exempt from the right of withdrawal.

*The customer's visual perception of sizes, colours, textures, and so on, of our products, can be affected by factors such as ambient lighting, screen calibration, viewing angle or the device of each user. The customer must bear in mind that any returns made for reasons not related to the functionality of the product will be at the customer's expense.
