Range Expert
  • 6 W
    Wattage 6 W
  • 220-240V AC
    Voltage Range 220-240V AC
  • 480 lm
    Lumen 480 lm
  • 70 mm
    Diameter 70 mm
Image of ECLIPSE M LED Downlight Ø53mm Cut Out
    Image of ECLIPSE M LED Downlight Ø53mm Cut Out
    Video of ECLIPSE M LED Downlight Ø53mm Cut Out
    Image of ECLIPSE M LED Downlight Ø53mm Cut Out
    Image of ECLIPSE M LED Downlight Ø53mm Cut Out
    Image of ECLIPSE M LED Downlight Ø53mm Cut Out
    Image of ECLIPSE M LED Downlight Ø53mm Cut Out
    Video of ECLIPSE M LED Downlight Ø53mm Cut Out
    Image of ECLIPSE M LED Downlight Ø53mm Cut Out
    Image of ECLIPSE M LED Downlight Ø53mm Cut Out
1 / 9
  • 6 W

    Wattage

    6 W

  • 220-240V AC

    Voltage Range

    220-240V AC

  • 480 lm

    Lumen

    480 lm

  • 70 mm

    Diameter

    70 mm

  • 0.5

    Power Factor

    0.5

  • UGR <3

    Glare Factor

    UGR <3

  • IP20

    IP Rating

    IP20

  • No

    Battery Operated

    No

  • 62 mm x Ø70 mm

    Dimensions

    62 mm x Ø70 mm

  • 62 mm

    Height

    62 mm

  • 88 lm/W

    Luminous Efficiency

    88 lm/W

  • Aluminium

    Fitting Material

    Aluminium

Aurlux Lighting

ECLIPSE M LED Downlight Ø53mm Cut Out

Aurlux Lighting
Download technical datasheet

Ref. Ledkia: 179925

Manuf. ref.: 0096731

Installation type Recessed

Colour Black

Wattage 6 W

Colour Temperature 2700K

Type Of Driver Standard

    In Stock, delivery in 16-21 days

    Aurlux Lighting Surface

    53,83 €

    VAT included

    In Stock, delivery in 16-21 days

    Includes Driver

    PRO CLUB badge

    Are you a lighting professional or a company?

    • Great discounts off PVP
    • Extended Warranty
    • Exclusive Services

    Buy now, pay later

    Credit payment

      • 30 calendar days to return

        You can renounce to this product during the first 30 calendar days from receipt, provided that the product remains in perfect condition for use.


        Custom-made products and cut-to-size strips are excluded.


        Full conditions here: After-Sales Service.

      • 5-7 days Delivery

        If you place your order today before 18:00h, delivery within 5-7 days (working days).


        Shipping is free on purchases over 49,99 € (incl. VAT).


        Full conditions here: Shipping methods.

      • 100% secure payments

        payment method image 1

        payment method image 2

        At Ledkia we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation.


        More information: Payment methods.

      • Warranty up to 5 years

        Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.


        You will find the exact product warranty in the technical details.


        Full conditions here: After-Sales Service.

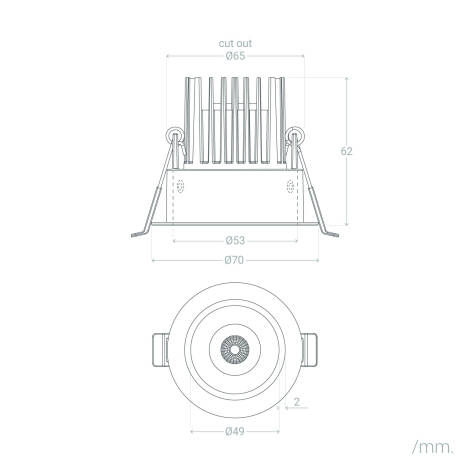

    Dimensions

    • Height62 mm
    • Diameter70 mm
    Scheme image

    Downloads

    • pdf file

      Technical Data Sheet PDF

    • pdf file

      DoC_179925_364083

    Certificates and Stamps

    CertificateCertificateCertificate

    Technical Specifications

    • Electrical Features

      • Electrical Insulation ClassII
      • Frequency50-60 Hz
      • Light SourceCITILED COB
      • Voltage level required for the product to function correctly.
        Voltage Range220-240V AC
      • Wattage6 W

    • Product Information

      • BrandAurlux Lighting
      • CertificatesCE, RoHS, UKCA
      • Guarantee3 years
      • Product SeriesEclipse

    • LED Features

      • Measures how accurately a light source displays colours compared to natural light. A high CRI (close to 100) ensures accurate colour rendering.
        Colour Rendering Index97
      • Defines the light tone, from warm white to cool white, measured in Kelvin (K).
        Colour Temperature2700K
      • Low-glare products offer more comfortable lighting, suitable for extended use.
        Glare FactorUGR <3
      • Estimated lifespan of the product before it loses performance. Based on optimal, non-continuous use, and measured in hours of operation under controlled conditions.
        Hours50.000 hours
      • Light ColourWarm White
      • Lumen480 lm
      • Ratio between light output (lumens) and energy consumed (watts). A high value indicates better efficiency, ideal for saving energy without compromising lighting.
        Luminous Efficiency88 lm/W
      • Power Factor0.5

    • Mechanical Features

      • Ability to move or rotate the spotlight to direct the light as desired.
        DirectionalNo
      • Indicates whether the product or its materials are fire-resistant, enhancing safety in high-temperature or flame-risk areas.
        Fire RatedNo
      • InstallationRecessed, False ceiling
      • The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
        IP RatingIP20
      • LocationIndoor
      • ShapeCircular

    • Materials and Finishes

      • ColourBlack
      • Fitting MaterialAluminium
      • IncludesDriver

    • Driver Information

      • Driver BrandLIFUD
      • Driver Intensity135 mA
      • Driver ModelLF-008S
      • Driver Power54 W
      • Voltage level that the driver uses to power the LEDs or electrical components of the product, ensuring their proper functioning.
        Driver Tension30 V-40 V
      • Type Of DriverStandard
      • WifiNo

    Description

    The ECLIPSE M LED Downlight Ø53mm Cut Out is a LED downlight featuring a high-performance driver and advanced optical control with Darklight technology, ensuring precise light delivery and visual comfort with minimal glare.

    General information about ECLIPSE M LED Downlight Ø53mm Cut Out

    This downlight incorporates Darklight technology, an optical system that removes direct visibility of the light source, delivering light exactly where required through precise optical angles and micro-reflectors. Constructed with an aluminium fitting, it offers a robust and lightweight solution with a luminous efficiency of 88 lm/W and a colour rendering index of 97, ensuring high-quality colour fidelity. The product operates at 220-240V AC and includes a CITILED COB light source with a multi-mount LED core design that supports various installation options. It features electrical insulation class II and a lifespan of 50.000 hours. The design focuses on architectural integration and high visual comfort, making it suitable for professional indoor lighting projects.

    Use and applications

    The ECLIPSE M LED Downlight is designed to provide controlled and efficient lighting in indoor environments, making it ideal for office spaces where visual comfort is essential due to its Darklight optical system and high CRI. It also fits well in retail settings, where precise light placement enhances product presentation thanks to its accurate beam control. Additionally, it suits technical rooms that require reliable and consistent illumination supported by its robust aluminium construction and long operational life.

    This downlight functions within a standard voltage range of 220-240V AC and is compatible with various mounting configurations, enabling flexible integration in different ceiling types. Its design excludes IP rating considerations as it is intended for interior use. The solution ensures excellent optical control, reducing glare and enhancing comfort, ideal for professional installations where lighting quality and precision are priorities.

    Key benefits

    • Advanced optical control thanks to Darklight technology, which eliminates visible LED sources for enhanced visual comfort.
    • High colour fidelity with a CRI of 97, ensuring accurate colour reproduction in indoor environments.
    • Long lifespan of 50.000 hours, reducing maintenance frequency and costs.
    • Robust aluminium fitting that provides durability and lightweight installation.
    • Efficient luminous output with 88 lm/W, optimising energy use without compromising light quality.

    Highlighted specifications

    Luminous efficiency: 88 lm/W; Colour rendering index (CRI): 97; Electrical insulation class: II; Voltage range: 220-240V AC; Lifespan: 50.000 hours.

    Installation and maintenance

    Installation follows the indicated mounting system compatible with the multi-mount LED core design, allowing for trim and trimless ceiling integration. The aluminium fitting facilitates handling and secure fixing. Ensure the electrical connection complies with class II insulation requirements. Disconnect the power supply before any intervention. Maintenance is simplified by the long operational life and robust construction, supporting professional use and reducing downtime.


    Specialized lighting distribution in Ireland. If you are looking to buy ECLIPSE M LED Downlight Ø53mm Cut Out with a professional warranty, it is a leading choice for durability and efficiency. Estimated shipping in 5 to 6 days (subject to stock availability). Quality certified by CE, RoHS, UKCA for professional installations and projects. Check price and availability here.

    Frequently asked questions

    • What is the expected lifespan of the downlight? — The product offers an operational life of 50.000 hours, supporting long-term use.
    • Is the downlight suitable for outdoor use? — It is designed exclusively for indoor environments without IP rating for outdoor protection.
    • Does the product include a driver? — Yes, the downlight comes with an integrated driver.
    • Can the light intensity be regulated? — There is no information indicating dimming capability for this model.
    • What type of light source is used? — The downlight uses a CITILED COB module for high-quality illumination.
