Power:
18 W
Voltage:
220-240V AC
Lumens:
1800 lm
Power Factor:
0.95
UGR (Glare Rating):
UGR 19
IP Protection:
IP40
Size:
295x295x30 mm
Width:
295 mm
Height:
30 mm
Frame:
30x30 cm
IK Protection:
IK05
Luminous Efficiency:
100 lm/W

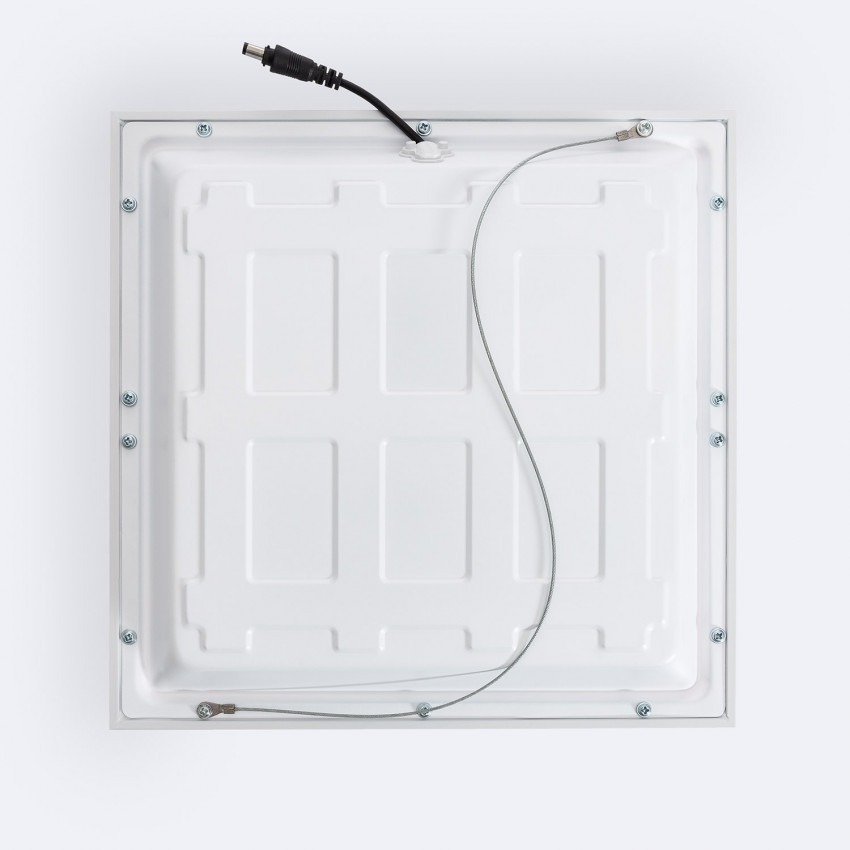

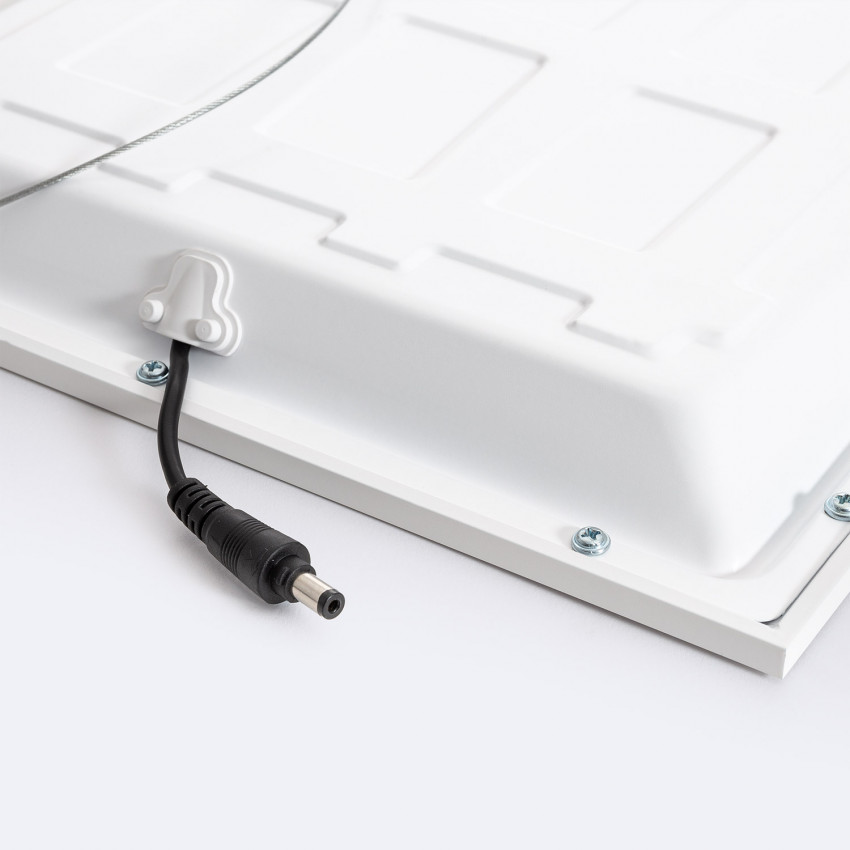

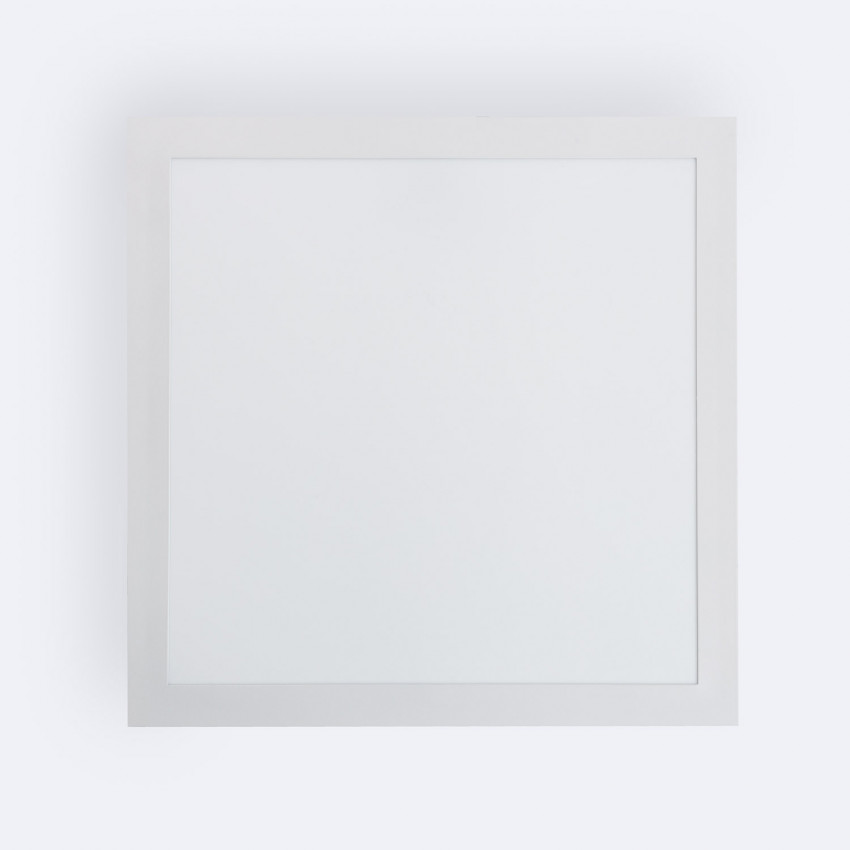

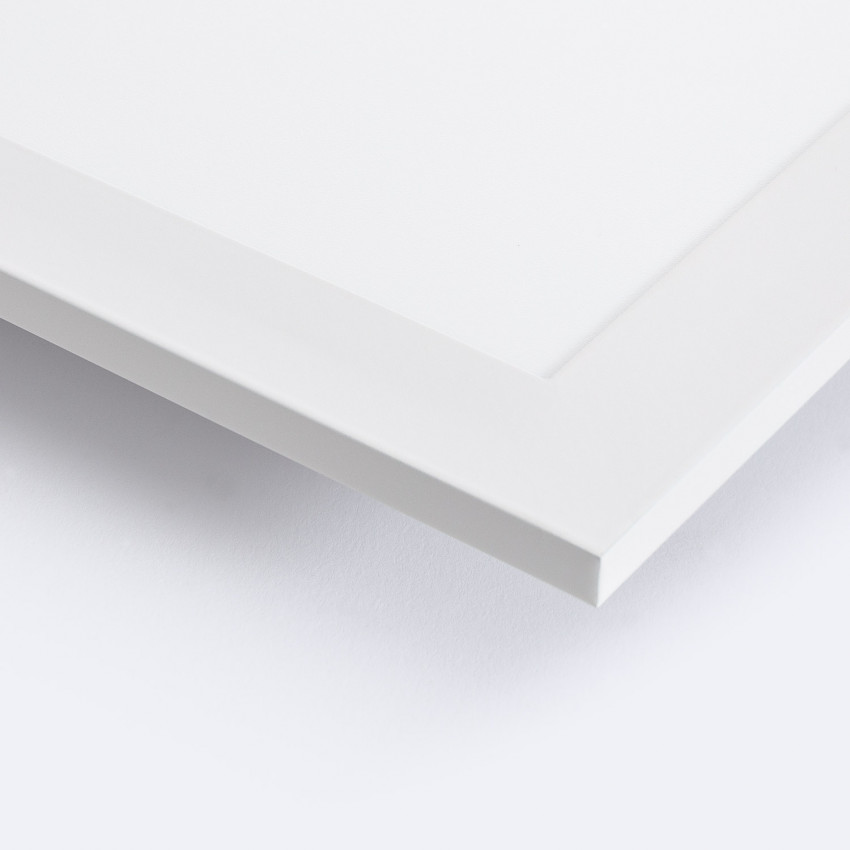

18W 30x30 cm 1800lm LED Panel
Ref. Ledkia: 71286
Ref. Fab: PNL-30x30-18W-BF-LFD-NR
Choose Colour Temperature
Daylight 5500K - 6000K

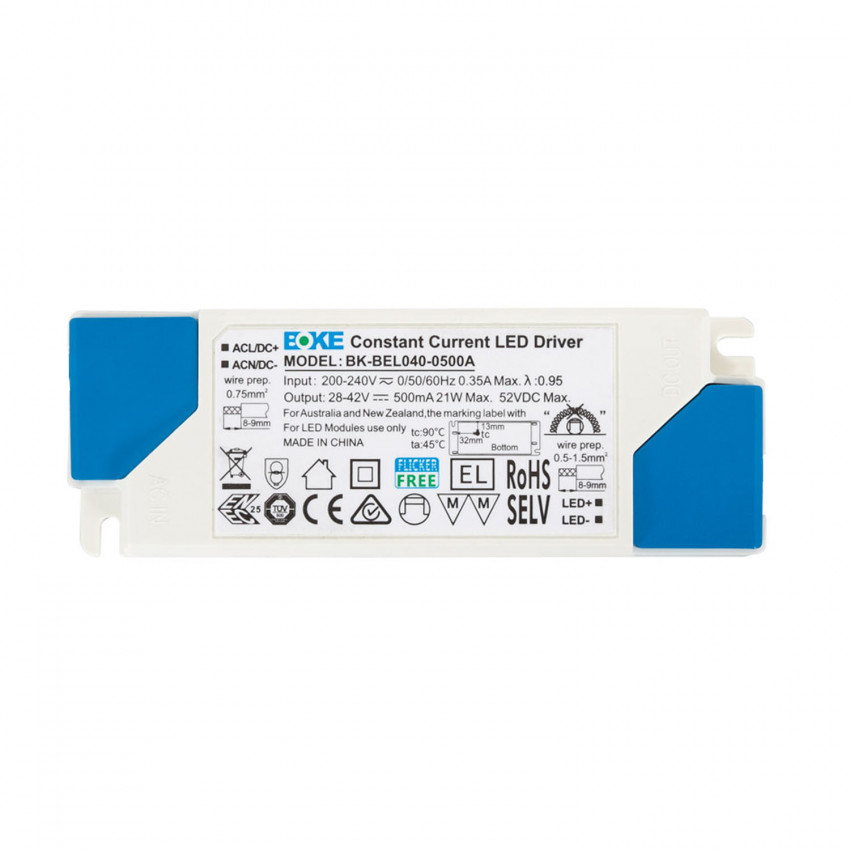

Choose Driver
LIFUD No Flicker
In Stock, delivery in 15-20 days
18,08 €
23% VAT includedIn Stock, delivery in 15-20 days
Are you a lighting professional or a company?
- Great discounts on RRP
- Extended warranty
- Exclusive services
Buy now, pay later
Credit payment30 Day Return
You can renounce to this product during the first 30 calendar days from receipt, provided that the product remains in perfect condition for use.
Custom-made products and cut-to-size strips are excluded.
Full conditions here: After-sales service.
5-7 days Free Delivery
If you place your order today before 18:00h, delivery within 5-7 days (working days).
Shipping is free on purchases over 49,99 € (incl. VAT).
Full conditions here: Delivery methods.
100% secure payments
At Ledkia we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation.
More information: Payment methods.
Up to 5 year warranty
Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.
You will find the exact product warranty in the technical details.
Full conditions here: After-sales service.
Don't forget the accessories 6
Y Suspension Kit for LED Panels
In Stock, delivery in 15-20 days
3,45 €
Suspension Kit for LED Panels
In Stock, delivery in 15-20 days
3,34 €
Recessed Frame for 30x30 cm LED Panel
In Stock, delivery in 15-20 days
1 options5,28 €
Recessed Panel Kit
In Stock, delivery in 15-20 days
1 options1,62 €
Surface Kit for a 30x30 cm LED Panel
In Stock, delivery in 15-20 days
1 options6,50 €
Adapter for Three-Phase Track compatible with 30x30, 60x30 and 120x30 panels.
In Stock, delivery in 15-20 days
1 options21,34 €
Dimensions
- Size:295x295x30 mm
- Height:30 mm
- Width:295 mm
- Length:295 mm
Downloads
Technical Data Sheet PDF
CE Certificate Panel
ENEC Certificate Panel
Certificates and Stamps
Energy Efficiency
Regulation 2021Regulation 2023Technical Specifications
- Power:18 W
- Power Factor:0.95
- Voltage:220-240V AC
- Multi-Voltage:85-265V AC
- Frequency:50-60 Hz
- Output:25-40V DC // 500 mA
- Intensity Level:0.080 A
- Protection Class:II
- Light Source:SMD3014
- CRI:80
- Lumens:1800 lm
- Luminous Efficiency:100 lm/W
- Energy Efficiency 2021 (UE-1369/2017):A+
- Energy Efficiency 2023 (UE-2019/2015):F
- Beam Angle: 120º
- Lens Type:Frost
- Use:Indoor
- IP Protection:IP40
- IK Protection:IK05
- UGR (Glare Rating):UGR 19
- Photobiological Risk:RG0 (Exempt group)
- Material:PC, Aluminium
- Installation:False Ceiling
- Size:295x295x30 mm
- Height:30 mm
- Width:295 mm
- Length:295 mm
- Frame:30x30 cm
- Working Temperature:-22ºC ~ +45ºC
- Life Span:50,000 Hours
- Warranty:5 Years
- Certifications:CE & RoHS, TÜV
Our advantages
Team of experts at your service
Personal customer service
24-hour express delivery
Stock of more than 12,000 references
Warranty up to 5 years
Our professionals guarantee you the highest quality and reliability
Best price guarantee
Compared to the most outstanding websites in the industry
Description
The 18W 30x30cm 1800lm LED Panel combines a very modern square design with excellent light efficiency and quality.
The light source of the LED panel has a brightness of 1800 lumens that is equivalent to that of a conventional 40W panel . In this way, very important savings are achieved compared to this type of traditional low-consumption luminaires. Supports multi- voltage between 85V 265V AC and a working ambient temperature range of -22ºC to 45ºC .
Applications of the 18W 30x30cm 1800lm LED Panel
Specially designed for installation on technical ceilings, it is used above all in commercial or work spaces such as: hotels, restaurants, supermarkets, showrooms, museums or offices . It provides a high quality and very uniform light that improves working conditions. It also includes an opal diffuser that reduces glare.
* They are installed in a removable false ceiling, to be installed in a false ceiling the panel needs the recessed kit and to be installed on the ceiling it needs the surface kit or the suspension kit.
