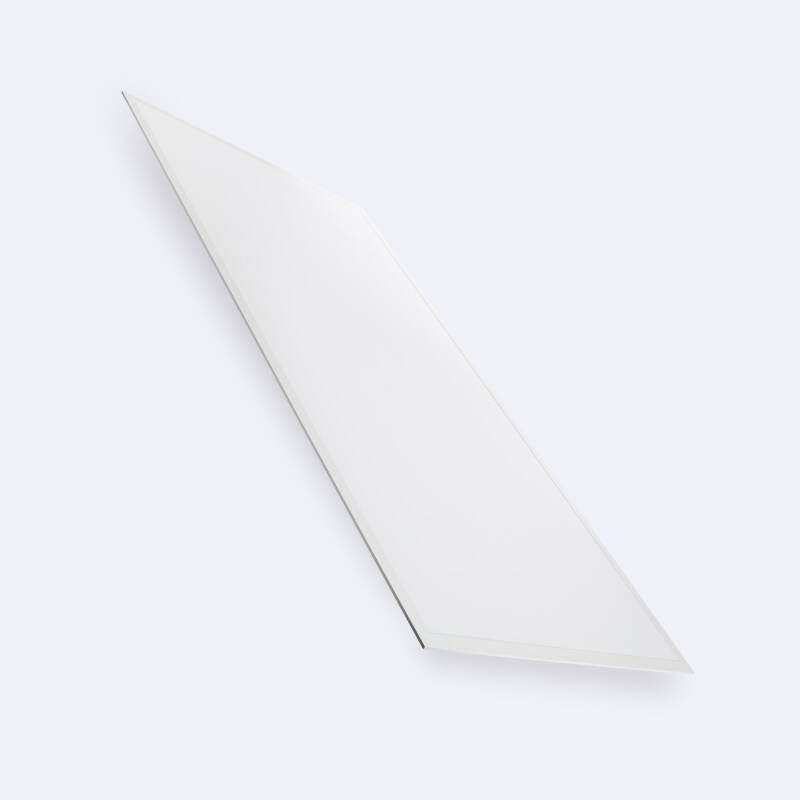

1200x600mm 24W LED Panel 170lm/W High Efficiency PHILIPS Certadrive

Technical Specifications

• LED Features

  • Measures in degrees how light spreads from the source. A wide angle covers more area, while a narrow one is ideal for highlighting details.
    Beam Angle120º
  • Measures how accurately a light source displays colours compared to natural light. A high CRI (close to 100) ensures accurate colour rendering.
    Colour Rendering Index80
  • Defines the light tone, from warm white to cool white, measured in Kelvin (K).
    Colour Temperature4000K
  • Equivalent power250 W
  • Low-glare products offer more comfortable lighting, suitable for extended use.
    Glare FactorUGR <21
  • Estimated lifespan of the product before it loses performance. Based on optimal, non-continuous use, and measured in hours of operation under controlled conditions.
    Hours50.000 hours
  • Efficiency of the LEDs, measured as the amount of light generated per unit of energy consumed (lumens per watt). High efficiency ensures energy savings without losing light quality.
    LED Performance210 lm/W
  • Light ColourCool White
  • Lumen4080 lm
  • Ratio between light output (lumens) and energy consumed (watts). A high value indicates better efficiency, ideal for saving energy without compromising lighting.
    Luminous Efficiency170 lm/W
  • Technology that ensures stable, flicker-free light. It improves visual experience and reduces eye fatigue.
    No FlickerNo Flicker
  • Power Factor0.9
  • Standard colour deviation (MacAdam)SDCM ≤ 6

• Materials and Finishes

  • Box FormatIndustrial
  • ColourMatt White
  • Fitting MaterialAluminium, Metal
  • IncludesDriver

• Electrical Features

  • Electrical Insulation ClassII
  • Frequency50-60 Hz
  • Voltage level required for the product to function correctly.
    Voltage Range220-240V AC
  • Wattage24 W

• Mechanical Features

  • Temperature range in which the product can operate optimally, ensuring its performance without overheating or damage.
    Ambient Working Temperature-20 °C~+65 °C
  • Frame120x60 cm
  • Protection grade that the product offers against physical impacts. It is measured on a scale from IK00 to IK10, with IK10 being the highest level of resistance to impact and mechanical damage.
    IK ProtectionIK04
  • InstallationFalse ceiling
  • The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
    IP RatingIP22
  • LocationIndoor
  • Special Installation EnvironmentClean room

• Product Information

  • CertificatesCE, RoHS, ERP, EMC
  • Guarantee5 years

• Driver Information

  • Driver BrandPHILIPS Certadrive
  • Driver Intensity552 mA - 648 mA
  • Driver Power18 W-24 W
  • Voltage level that the driver uses to power the LEDs or electrical components of the product, ensuring their proper functioning.
    Driver Tension30 V-40 V
  • Type Of DriverPHILIPS Certadrive
  • WifiNo
