Wattage 42 W
Voltage Range 220-240V AC
Lumen 4000 lm
Type Of Dimming 1-10 V
Wattage
42 W
Voltage Range
220-240V AC
Lumen
4000 lm
Type Of Dimming
1-10 V
Power Factor
0.94
Glare Factor
UGR <17
IP Rating
IP40
Battery Operated
No
Dimensions
30 mm x 1195 mm x 295 mm
Width
1195 mm
Height
30 mm
IK Protection
IK05

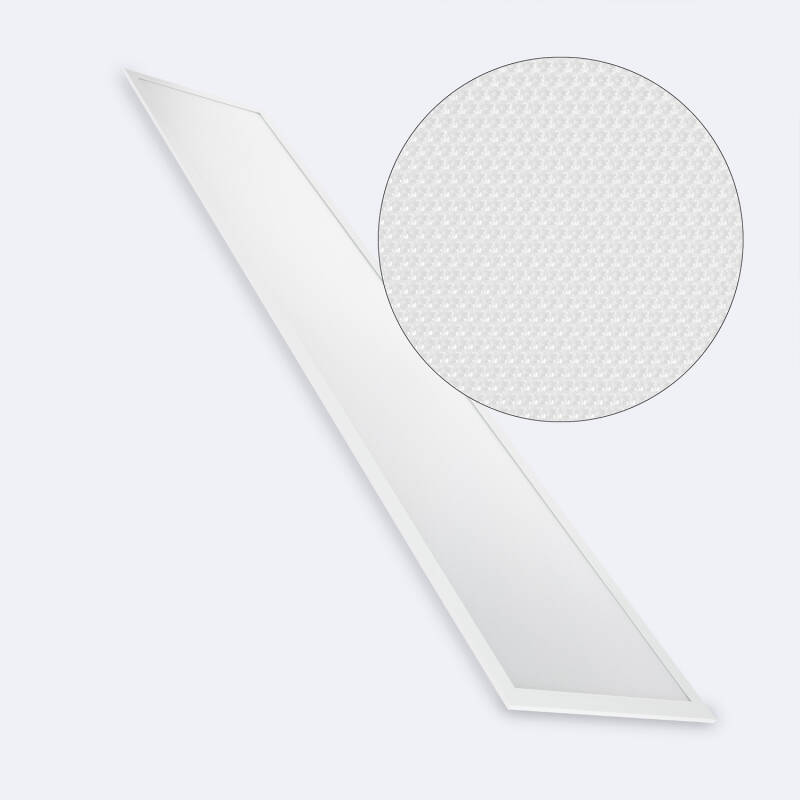

1200x30mm 40W Microprismatic UGR17 LED Panel 4000lm PHILIPS Xitanium with Quick Connection Box
Ref. Ledkia: 125216
Colour Temperature Daylight 6000K
Type Of Driver 1-10V
Box Format Individual
In Stock, delivery in 15-20 days
33,79 €
VAT included
In Stock, delivery in 15-20 days
Are you a lighting professional or a company?
- Great discounts off PVP
- Extended Warranty
- Exclusive Services
Buy now, pay later
Credit payment30 calendar days to return
You can renounce to this product during the first 30 calendar days from receipt, provided that the product remains in perfect condition for use.
Custom-made products and cut-to-size strips are excluded.
Full conditions here: After-Sales Service.
5-7 days Delivery
If you place your order today before 18:00h, delivery within 5-7 days (working days).
Shipping is free on purchases over 49,99 € (incl. VAT).
Full conditions here: Shipping methods.
100% secure payments
At Ledkia we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation.
More information: Payment methods.
Warranty up to 5 years
Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.
You will find the exact product warranty in the technical details.
Full conditions here: After-Sales Service.
Dimensions
- Dimensions30 mm x 1195 mm x 295 mm
Downloads
PDF Datasheet 125216_260251 IE
DoC_125216_260251
Certificates and Stamps
Technical Specifications
Electrical Features
- DimmableYes
- Electrical Insulation ClassII
- Frequency50-60 Hz
- Light SourceSMD2835
- Nominal Voltage220 V - 240 VMinimum and maximum voltage fluctuation that the product can withstand momentarily.
- Type Of Dimming1-10 V
- Voltage Range220-240V ACVoltage level required for the product to function correctly.
- Wattage42 W
Materials and Finishes
- Box FormatIndividual
- ColourWhite
- Fitting MaterialAluminium, PC
- Type Of LensMicroprismatic
LED Features
- Beam Angle120ºMeasures in degrees how light spreads from the source. A wide angle covers more area, while a narrow one is ideal for highlighting details.
- Colour Rendering Index80Measures how accurately a light source displays colours compared to natural light. A high CRI (close to 100) ensures accurate colour rendering.
- Colour Temperature6000KDefines the light tone, from warm white to cool white, measured in Kelvin (K).
- Glare FactorUGR <17Low-glare products offer more comfortable lighting, suitable for extended use.
- Hours50.000 hoursEstimated lifespan of the product before it loses performance. Based on optimal, non-continuous use, and measured in hours of operation under controlled conditions.
- Light ColourDaylight
- Lumen4000 lm
- Luminous Efficiency100 lm/WRatio between light output (lumens) and energy consumed (watts). A high value indicates better efficiency, ideal for saving energy without compromising lighting.
- No FlickerNo FlickerTechnology that ensures stable, flicker-free light. It improves visual experience and reduces eye fatigue.
- Power Factor0.94
Mechanical Features
- Ambient Working Temperature50 °CTemperature range in which the product can operate optimally, ensuring its performance without overheating or damage.
- Frame120x30 cm
- IK ProtectionIK05Protection grade that the product offers against physical impacts. It is measured on a scale from IK00 to IK10, with IK10 being the highest level of resistance to impact and mechanical damage.
- InstallationFalse ceiling
- IP RatingIP40The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
- LocationIndoor
Product Information
- CertificatesCE, RoHS, TÜV, UKCA, ENEC
- Guarantee3 years
- Product SeriesNexa
Driver Information
- Driver BrandPHILIPS Xitanium
- Driver Intensity1050 mA
- Driver Power42 W
- Driver Tension30 V-42 VVoltage level that the driver uses to power the LEDs or electrical components of the product, ensuring their proper functioning.
- Type Of Driver1-10V
- WifiNo
Description
This LED panel delivers 42 W of power with a luminous efficiency of 100 lm/W, incorporating a PHILIPS Xitanium driver and a microprismatic lens that ensures a UGR below 17 for excellent visual comfort.
General information about 1200x30mm 40W Microprismatic UGR17 LED Panel 4000lm PHILIPS Xitanium with Quick Connection Box
The panel is constructed with an aluminium and PC housing, combining durability and light diffusion. It features an IK05 impact resistance and an IP40 rating, suitable for indoor environments. The product operates with a power factor of 0.94 and is equipped with a high-quality PHILIPS Xitanium driver that guarantees stable performance. Measuring 30 mm x 1195 mm x 295 mm, it integrates a microprismatic lens designed to reduce glare and enhance uniform light distribution, making it ideal for professional lighting.
Use and applications
This LED panel is designed for indoor lighting solutions, particularly suited for office environments where ergonomic and visual comfort are essential, supported by its UGR<17 glare control. It also fits well in workstations within the offices sector due to its high luminous efficiency and consistent light output.
The product is compatible with false ceiling installations and functions reliably within ambient temperatures up to 50 °C. Its electrical insulation class II and voltage range of 220–240 V AC ensure safe and stable operation. This combination makes it a solution oriented to professional spaces requiring efficient and comfortable lighting.
Key benefits
- Provides high visual comfort thanks to UGR below 17 glare control.
- Ensures efficient lighting with a luminous efficacy of 100 lm/W.
- Durable construction with IK05 protection against impacts.
- Reliable operation via PHILIPS Xitanium driver for stable power supply.
- Easy integration in false ceiling installations for flexible mounting.
Highlighted specifications
Power factor: 0.94; Colour rendering index (CRI): 80; Beam angle: 120º; Electrical insulation class: II.
Installation and maintenance
The panel is designed for mounting in false ceilings, ensuring a clean and professional finish. Installation requires adherence to the specified mounting system to guarantee safety and performance. It is essential to disconnect the power supply before any intervention.
Maintenance is simplified by the robust materials used, aluminium and PC, which resist typical indoor wear. The product’s electrical insulation class II ensures added safety during handling and installation.
Disconnect the power supply before any intervention.
Frequently asked questions
- What is the lifetime of the LED panel? — It operates for 50,000 hours, ensuring long-term use.
- Is the panel suitable for damp environments? — It has an IP40 rating, suitable for indoor dry areas but not for damp locations.
- Can the panel be dimmed? — The product includes a PHILIPS Xitanium driver compatible with certain dimming controls.
- What mounting options are available? — It is designed for false ceiling installation.
- What is the beam angle of the light? — The panel emits light with a 120º beam angle.
