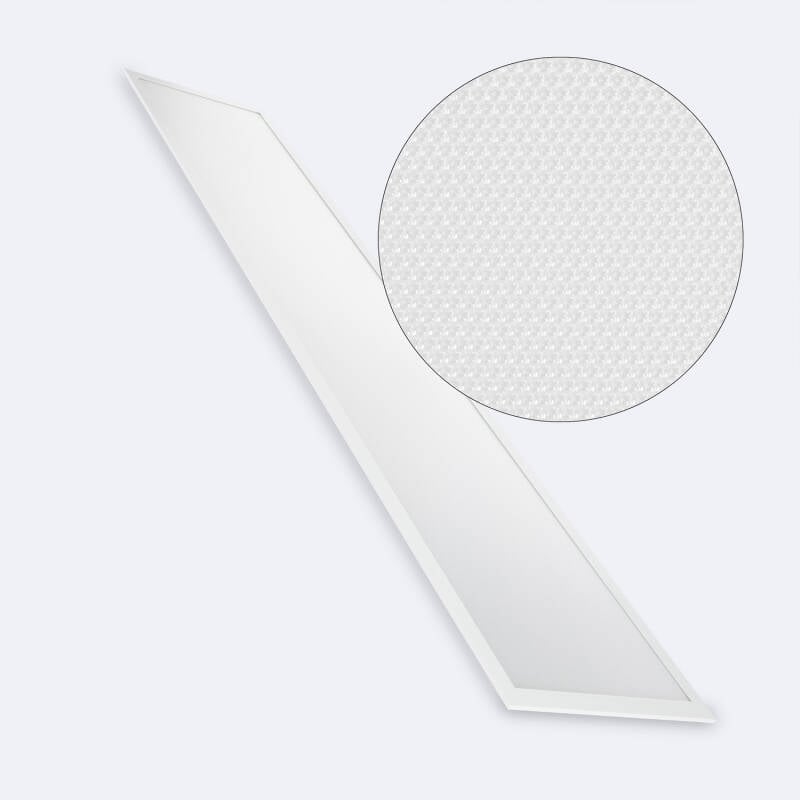

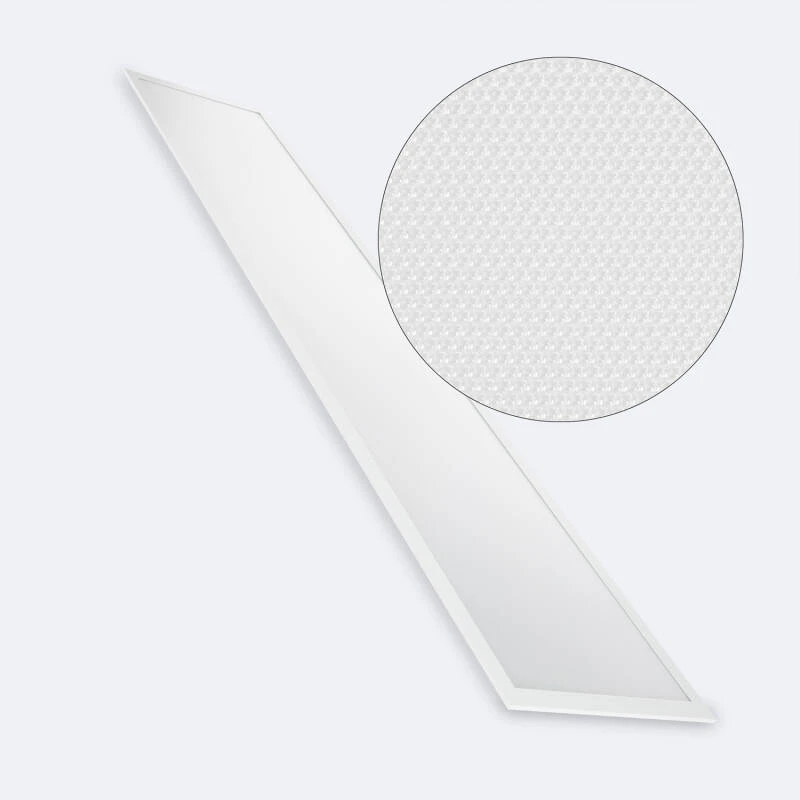

1200x30mm 40W Microprismatic UGR17 LED Panel 4000lm with Quick Connection Box

This 40W LED panel delivers a 4000 lm luminous output with a microprismatic lens and UGR <17 for enhanced visual comfort. It incorporates an efficient driver ensuring consistent performance and a sleek design measuring 1200x30 mm, ideal for professional interior lighting.

General information about 1200x30mm 40W Microprismatic UGR17 LED Panel 4000lm with Quick Connection Box

The panel is constructed with a robust aluminium and PC fitting, combining durability with lightweight design. It features an IP40 rating and IK05 impact protection, suitable for controlled indoor environments. Equipped with a high-quality SMD2835 light source and a power factor of 0.94, it achieves a luminous efficiency of 100 lm/W. The microprismatic lens ensures excellent glare control, maintaining a CRI of 80 for accurate colour rendering. This panel is part of the VisualConfort series, designed for ergonomic lighting in professional spaces.

Use and applications

This LED panel addresses lighting needs in office workstations by providing uniform illumination that reduces eye strain, supported by its UGR <17 glare control. It fits seamlessly into indoor office environments where quality lighting is essential for productivity and comfort. Additionally, it suits professional sectors such as offices, where the aluminium structure and IK05 protection guarantee reliable performance under typical usage conditions.

Designed for installation in false ceilings, it operates efficiently within an ambient temperature range of -20 °C to +50 °C and a voltage range of 220-240V AC. Its compatibility with quick connection boxes simplifies integration into existing electrical systems, making it a practical solution for modern office lighting requirements.

Key benefits

• Provides controlled glare thanks to the microprismatic lens and UGR <17, enhancing visual comfort in work environments.
• Delivers consistent and efficient illumination with a luminous efficiency of 100 lm/W, optimising energy use.
• Ensures reliable operation within a wide ambient temperature range (-20 °C to +50 °C), suitable for various indoor settings.
• Features robust aluminium and PC materials, offering durability and lightweight installation.
• Includes IK05 impact resistance, protecting the panel from minor mechanical shocks.

Highlighted specifications

Power factor: 0.94; Colour rendering index (CRI): 80; Electrical insulation class: II; Beam angle: 110º.

Installation and maintenance

The panel is designed for mounting in false ceilings, ensuring a flush and secure fit. Installation requires adherence to the specified mounting system and electrical connection standards. The product includes a quick connection box facilitating straightforward wiring and maintenance. Regular inspection is recommended to maintain optimal performance and safety.

Disconnect the power supply before any intervention.

Frequently asked questions

• What type of lens does the panel use? — It uses a microprismatic lens for improved glare control.
• Is this panel suitable for outdoor use? — The panel is designed for indoor environments only.
• What is the expected lifespan of the panel? — The product offers a lifespan of 50,000 hours.
• Can this panel be dimmed? — Dimming compatibility is not specified for this model.
• What certifications does the product have? — It holds CE, RoHS, TÜV, and UKCA certifications.
