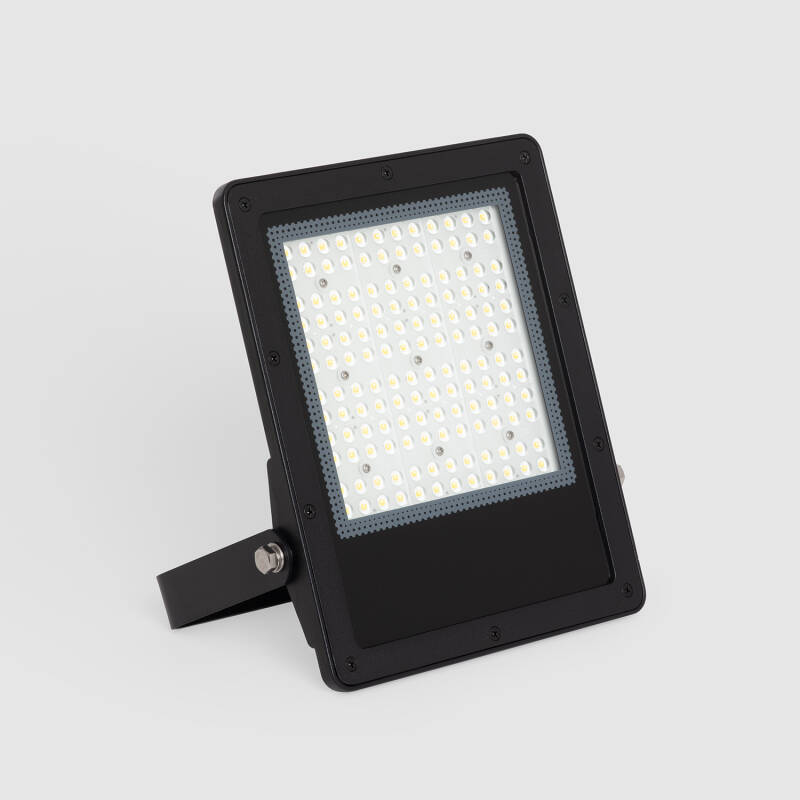

TRIAC Dimmable ELEGANCE Slim PRO 100W LED Floodlight 170lm/W IP65 in Black

Technical Specifications

• Electrical Features

  • Electrical Insulation ClassI
  • Frequency50-60 Hz
  • Light SourceSMD2835
  • Minimum and maximum voltage fluctuation that the product can withstand momentarily.
    Nominal Voltage190 V - 260 V
  • Type Of DimmingTRIAC
  • Voltage level required for the product to function correctly.
    Voltage Range220-240V AC
  • Wattage100 W

• LED Features

  • Measures how accurately a light source displays colours compared to natural light. A high CRI (close to 100) ensures accurate colour rendering.
    Colour Rendering Index70
  • Defines the light tone, from warm white to cool white, measured in Kelvin (K).
    Colour Temperature3000K
  • Estimated lifespan of the product before it loses performance. Based on optimal, non-continuous use, and measured in hours of operation under controlled conditions.
    Hours50.000 hours
  • Efficiency of the LEDs, measured as the amount of light generated per unit of energy consumed (lumens per watt). High efficiency ensures energy savings without losing light quality.
    LED Performance170 lm/W
  • Light ColourWarm White
  • Lumen12000 lm
  • Ratio between light output (lumens) and energy consumed (watts). A high value indicates better efficiency, ideal for saving energy without compromising lighting.
    Luminous Efficiency120 lm/W
  • Number of LEDs144
  • Power Factor0.95
  • Standard colour deviation (MacAdam)SDCM ≤ 5
  • ULOR5 %

• Mechanical Features

  • Temperature range in which the product can operate optimally, ensuring its performance without overheating or damage.
    Ambient Working Temperature-30 °C~+50 °C
  • Protection grade that the product offers against physical impacts. It is measured on a scale from IK00 to IK10, with IK10 being the highest level of resistance to impact and mechanical damage.
    IK ProtectionIK08
  • InstallationSurface
  • Installation of the bracketWall with U-bracket, On-wall base with U-bracket, Ceiling with U-bracket
  • The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
    IP RatingIP65
  • LocationOutdoor
  • Type of lens that determines the distribution and quality of the light. It influences the illumination angle and light efficiency.
    Optic90º
  • Internal temperature range in which the product can operate efficiently and safely. It is important to ensure its reliability under different usage conditions.
    Working Temperature-30 °C~+45 °C

• Product Information

  • CertificatesCE, RoHS, TÜV
  • Guarantee7 years
  • Product SeriesElegance

• Materials and Finishes

  • ColourBlack
  • Fitting MaterialGlass, Aluminium, PC

• Driver Information

  • Driver Intensity409 mA - 431 mA
  • Driver Power95 W-105 W
  • Voltage level that the driver uses to power the LEDs or electrical components of the product, ensuring their proper functioning.
    Driver Tension190 V - 260 V
  • WifiNo
