Wattage 10 W
Voltage Range 220-240V AC
Lumen 1350 lm
Number of LEDs 12
Wattage
10 W
Voltage Range
220-240V AC
Lumen
1350 lm
Number of LEDs
12
Type Of Dimming
TRIAC
Power Factor
0.93
IP Rating
IP65
Battery Operated
No
Dimensions
130 mm x 110 mm x 38 mm
Width
110 mm
Height
130 mm
IK Protection
IK08

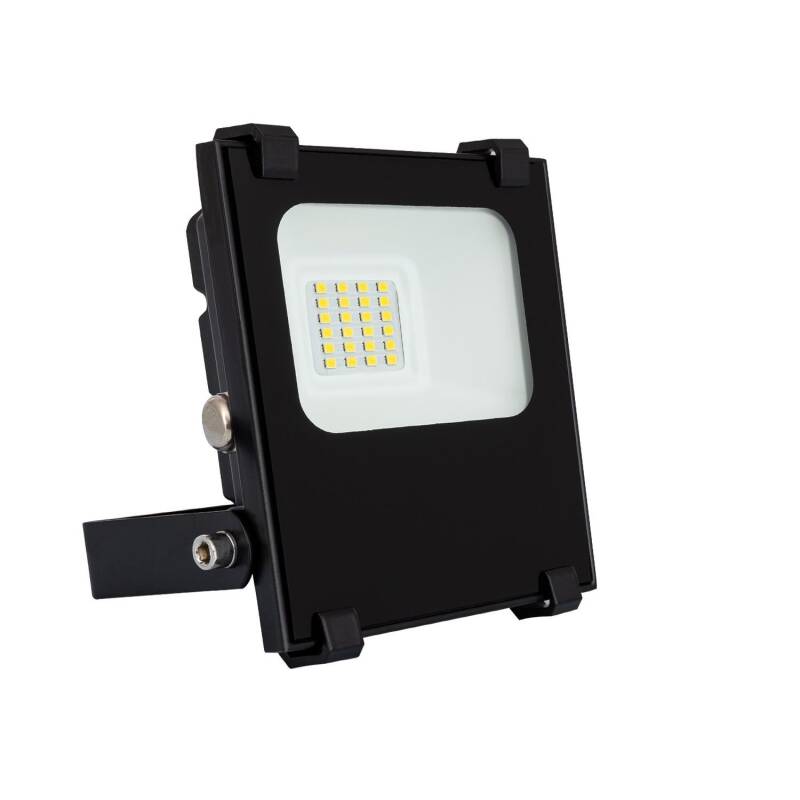

Dimmable HE PRO 10W LED Floodlight 145lm/W IP65
Ref. Ledkia: 51761
(3)5 out of 5 stars
Before 11,19 €
7,79 €
VAT included
Colour Temperature Cool White 4000K
Pre-Order, estimate delivery from 90 days
Are you a lighting professional or a company?
- Great discounts off PVP
- Extended Warranty
- Exclusive Services
Buy now, pay later
Credit payment30 calendar days to return
You can renounce to this product during the first 30 calendar days from receipt, provided that the product remains in perfect condition for use.
Custom-made products and cut-to-size strips are excluded.
Full conditions here: After-Sales Service.
5-7 days Delivery
If you place your order today before 18:00h, delivery within 5-7 days (working days).
Shipping is free on purchases over 49,99 € (incl. VAT).
Full conditions here: Shipping methods.
100% secure payments
At Ledkia we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation.
More information: Payment methods.
Warranty up to 5 years
Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.
You will find the exact product warranty in the technical details.
Full conditions here: After-Sales Service.
Dimensions
- Dimensions130 mm x 110 mm x 38 mm
- Cable Length400 cm
Downloads
PDF Datasheet 51761_103208 IE
DoC_51761_103208
Certificates and Stamps
Technical Specifications
Electrical Features
- DimmableYes
- Electrical Insulation ClassI
- Frequency50-60 Hz
- Light SourceLUMILEDS SMD2835
- Nominal Voltage190 V - 260 VMinimum and maximum voltage fluctuation that the product can withstand momentarily.
- Type Of DimmingTRIAC
- Voltage Range220-240V ACVoltage level required for the product to function correctly.
- Wattage10 W
LED Features
- Beam Angle120ºMeasures in degrees how light spreads from the source. A wide angle covers more area, while a narrow one is ideal for highlighting details.
- Colour Rendering Index80Measures how accurately a light source displays colours compared to natural light. A high CRI (close to 100) ensures accurate colour rendering.
- Colour Temperature4000KDefines the light tone, from warm white to cool white, measured in Kelvin (K).
- Hours50.000 hoursEstimated lifespan of the product before it loses performance. Based on optimal, non-continuous use, and measured in hours of operation under controlled conditions.
- LED Performance145 lm/WEfficiency of the LEDs, measured as the amount of light generated per unit of energy consumed (lumens per watt). High efficiency ensures energy savings without losing light quality.
- Light ColourCool White
- Lumen1350 lm
- Luminous Efficiency133 lm/WRatio between light output (lumens) and energy consumed (watts). A high value indicates better efficiency, ideal for saving energy without compromising lighting.
- Number of LEDs12
- Power Factor0.93
- Standard colour deviation (MacAdam)SDCM ≤ 5
- ULOR5 %
Mechanical Features
- Ambient Working Temperature-20 °C~+40 °CTemperature range in which the product can operate optimally, ensuring its performance without overheating or damage.
- IK ProtectionIK08Protection grade that the product offers against physical impacts. It is measured on a scale from IK00 to IK10, with IK10 being the highest level of resistance to impact and mechanical damage.
- InstallationSurface
- Installation of the bracketWall with U-bracket, On-wall base with U-bracket
- IP RatingIP65The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
- LocationOutdoor
- Optic120ºType of lens that determines the distribution and quality of the light. It influences the illumination angle and light efficiency.
Product Information
- CertificatesCE, RoHS, UKCA
- Guarantee5 years
- Product SeriesHE PRO
Materials and Finishes
- ColourBlack
- Fitting MaterialGlass, Aluminium
Driver Information
- WifiNo
Description
The Dimmable HE PRO 10W LED Floodlight is a professional-grade floodlight featuring a 10 W power consumption, a TRIAC dimmable driver, and a high luminous efficacy of 133 lm/W, designed for efficient lighting solutions in various outdoor environments.
General information about Dimmable HE PRO 10W LED Floodlight 145lm/W IP65
This floodlight belongs to the HePro series, known for its robust aluminium housing and tempered glass, ensuring durability and protection with an IP65 rating and IK08 impact resistance. It incorporates 12 LUMILEDS SMD2835 LEDs delivering a luminous flux of 1.350 lumens with a 120º optic for wide beam distribution. The device operates at a nominal voltage range of 190 V to 260 V and includes a dimmable TRIAC driver with a power factor of 0,93, optimising energy use. Its ULOR is 5%, minimising upward light emission for efficient outdoor lighting.
Use and applications
This floodlight is designed for outdoor use, ideal for access points and façades where controlled, efficient illumination is required. It suits sectors such as public administration, construction sites, and industrial production, where its robust aluminium construction and tempered glass provide reliable protection against environmental conditions. The floodlight's 120º optic ensures broad coverage, suitable for lighting outdoor car parks and internal roads, enhancing visibility and safety.
Operating within an ambient temperature range from -20 °C to +40 °C, this equipment supports a voltage of 220-240 V AC and offers a lifespan of 50.000 hours. Its surface mounting installation with U-bracket options allows flexible positioning. The combination of IP65 protection and IK08 resistance guarantees performance in demanding environments, while the dimmable driver facilitates integration into controlled lighting systems.
Key benefits
- Reliable durability thanks to aluminium housing and tempered glass protection.
- Energy-efficient lighting performance with high luminous efficacy and low power consumption.
- Flexible dimming control via TRIAC driver for adaptable lighting scenarios.
- Wide beam angle of 120º providing extensive area coverage.
- Robust IP65 and IK08 protection ensuring resistance to dust, water, and impacts.
Highlighted specifications
Power: 10 W; Luminous flux: 1.350 lm; Beam angle: 120º; Colour rendering index (CRI): 80; Power factor: 0,93; Protection: IP65, IK08; Lifespan: 50.000 hours; Dimensions: 130 mm x 110 mm x 38 mm.
Installation and maintenance
This floodlight is designed for surface mounting using a wall or on-wall base with U-bracket, facilitating secure and adjustable installation. Installation should follow the indicated system to ensure optimal performance and safety. The product operates safely within a temperature range of -20 °C to +40 °C, and includes electrical insulation class I. Disconnect the power supply before any intervention.
Specialized lighting distribution in Ireland. If you are looking to buy Dimmable HE PRO 10W LED Floodlight 145lm/W IP65 with a professional warranty, the HePro series is a leading choice for durability and efficiency. Estimated shipping in 3 to 4 days (subject to stock availability). Quality certified by CE, RoHS, UKCA for professional installations and projects. Check price and availability here.
