  • 10 W
    Wattage 10 W
  • 220-240V AC
    Voltage Range 220-240V AC
  • 16
    Number of LEDs 16
  • IP65
    IP Rating IP65
Image of Adjustable Module with Two LED Emergency Lights 160 lm/W for UFO High Bay
    Image of Adjustable Module with Two LED Emergency Lights 160 lm/W for UFO High Bay
    Image of Adjustable Module with Two LED Emergency Lights 160 lm/W for UFO High Bay
    Image of Adjustable Module with Two LED Emergency Lights 160 lm/W for UFO High Bay
    Image of Adjustable Module with Two LED Emergency Lights 160 lm/W for UFO High Bay
    Image of Adjustable Module with Two LED Emergency Lights 160 lm/W for UFO High Bay
    Image of Adjustable Module with Two LED Emergency Lights 160 lm/W for UFO High Bay
    Image of Adjustable Module with Two LED Emergency Lights 160 lm/W for UFO High Bay
    Image of Adjustable Module with Two LED Emergency Lights 160 lm/W for UFO High Bay
1 / 8
  • 10 W

    Wattage

    10 W

  • 220-240V AC

    Voltage Range

    220-240V AC

  • 16

    Number of LEDs

    16

  • IP65

    IP Rating

    IP65

  • Yes

    Battery Operated

    Yes

  • 142 mm x 202 mm x 440 mm

    Dimensions

    142 mm x 202 mm x 440 mm

  • 202 mm

    Width

    202 mm

  • 142 mm

    Height

    142 mm

  • 3600 mAh

    Battery Capacity

    3600 mAh

  • 3 h

    Autonomy

    3 h

  • IK08

    IK Protection

    IK08

  • 160 lm/W

    Luminous Efficiency

    160 lm/W

  • Aluminium

    Fitting Material

    Aluminium

Adjustable Module with Two LED Emergency Lights 160 lm/W for UFO High Bay

Download technical datasheet

Ref. Ledkia: 176632

Wattage 10 W

78,99 €

VAT included

In Stock, delivery in 16-21 days

Includes Screws

PRO CLUB badge

Are you a lighting professional or a company?

  • Great discounts off PVP
  • Extended Warranty
  • Exclusive Services

Buy now, pay later

Credit payment

    • 30 calendar days to return

      You can renounce to this product during the first 30 calendar days from receipt, provided that the product remains in perfect condition for use.


      Custom-made products and cut-to-size strips are excluded.


      Full conditions here: After-Sales Service.

    • 5-7 days Delivery

      If you place your order today before 18:00h, delivery within 5-7 days (working days).


      Shipping is free on purchases over 49,99 € (incl. VAT).


      Full conditions here: Shipping methods.

    • 100% secure payments

      payment method image 1

      payment method image 2

      At Ledkia we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation.


      More information: Payment methods.

    • Warranty up to 5 years

      Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.


      You will find the exact product warranty in the technical details.


      Full conditions here: After-Sales Service.

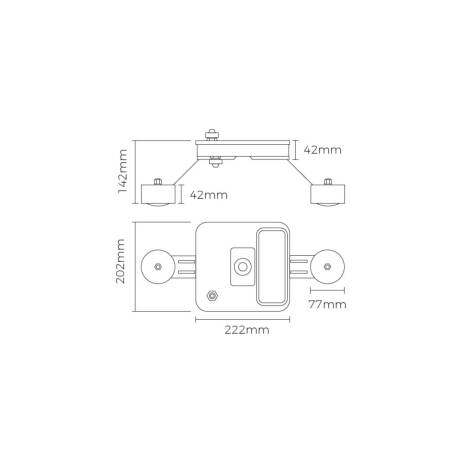

Dimensions

  • Weight1.65 kg
  • Height142 mm
  • Width202 mm
  • Depth440 mm
Scheme image

Downloads

  • pdf file

    Technical Data Sheet PDF

  • pdf file

    176632_357402_manual

  • pdf file

    DoC_176632_357402

Certificates and Stamps

Certificate

Technical Specifications

  • Electrical Features

    • Electrical Insulation ClassI
    • Frequency50-60 Hz
    • Light SourceSMD2835
    • Minimum and maximum voltage fluctuation that the product can withstand momentarily.
      Nominal Voltage220 V - 240 V
    • Voltage level required for the product to function correctly.
      Voltage Range220-240V AC
    • Wattage10 W

  • Mechanical Features

    • Temperature range in which the product can operate optimally, ensuring its performance without overheating or damage.
      Ambient Working Temperature-35 °C~+85 °C
    • Protection grade that the product offers against physical impacts. It is measured on a scale from IK00 to IK10, with IK10 being the highest level of resistance to impact and mechanical damage.
      IK ProtectionIK08
    • InstallationPendant
    • The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
      IP RatingIP65
    • LocationIndoor

  • Battery Information

    • Battery life of the luminaire at full charge, without wear, and at medium light level.
      Autonomy3 h
    • Batteries IncludedYes
    • Battery Capacity3600 mAh
    • Battery Voltage6.4 V
    • Battery Weight0.48
    • Time required to fully recharge the product's battery, depending on the battery capacity and the charging source.
      Charging Time24 h
    • Number Of Batteries2
    • Type Of BatteryLiFePO4

  • LED Features

    • Defines the light tone, from warm white to cool white, measured in Kelvin (K).
      Colour Temperature6000K
    • Estimated lifespan of the product before it loses performance. Based on optimal, non-continuous use, and measured in hours of operation under controlled conditions.
      Hours30.000 hours
    • Light ColourDaylight
    • Ratio between light output (lumens) and energy consumed (watts). A high value indicates better efficiency, ideal for saving energy without compromising lighting.
      Luminous Efficiency160 lm/W
    • Number of LEDs16

  • Materials and Finishes

    • ColourBlack
    • Fitting MaterialAluminium
    • IncludesScrews

  • Product Information

    • CertificatesCE
    • Guarantee3 years

  • Driver Information

    • WifiNo

  • Emergency Lighting Information

    • Emergency LightingPermanent - No Permanent
    • Emergency Power10 W
    • Luminosidad en Emergencia1600 lm
    • Luminosidad en Permanente1600 lm

Description

Adjustable Module with Two LED Emergency Lights 160 lm/W for UFO High Bay delivers energy-efficient emergency illumination tailored for industrial and commercial high bay applications. The compact, adjustable module integrates two high-efficacy LED emergency lights (160 lm/W), ensuring clear, reliable light distribution when primary power is interrupted. Designed for compatibility with UFO high bay fixtures, the unit allows flexible aiming of emergency beams to cover aisles, workstations and escape routes while maintaining a low-profile fit. Ideal for warehouses, manufacturing floors and sports halls, this emergency module enhances safety without compromising the performance of existing high bay systems. Built for longevity and consistent output, it supports maintenance-friendly installation and seamless integration with standard UFO high bay luminaires. Relevant keywords: adjustable module, LED emergency lights, 160 lm/W, UFO high bay, high bay lighting, emergency lighting for warehouses, industrial LED emergency module.
