This product is discontinued

Below you can find the substitute product or some equivalents.

If you have any queries, please call us on telephone (01) 486 3779.

Round Adjustable 38W LED Downlight Ø170mm Cut Out Selectable CCT Chip OSRAM 120lm/W LIFUD in Black

Download technical datasheet

Ref. Ledkia95886

Dimensions

  • Weight1 kg
  • Height150 mm
  • Diameter190 mm
  • Cut Out DimensionsØ160 mm

Downloads

  • pdf file

    Technical Data Sheet PDF

  • pdf file

    DoC_95886_199171

Certificates and Stamps

CertificateCertificateCertificate

Technical Specifications

  • Technical Information

    • Temperature range in which the product can operate optimally, ensuring its performance without overheating or damage.
      Ambient Working Temperature-20 °C~+40 °C
    • Measures in degrees how light spreads from the source. A wide angle covers more area, while a narrow one is ideal for highlighting details.
      Beam Angle90º
    • ColourWhite
    • Measures how accurately a light source displays colours compared to natural light. A high CRI (close to 100) ensures accurate colour rendering.
      Colour Rendering Index85
    • DimmableNo
    • Ability to move or rotate the spotlight to direct the light as desired.
      DirectionalYes
    • Driver BrandLIFUD
    • Fitting MaterialAluminium
    • Frequency50-60 Hz
    • Low-glare products offer more comfortable lighting, suitable for extended use.
      Glare FactorUGR <17
    • Estimated lifespan of the product before it loses performance. Based on optimal, non-continuous use, and measured in hours of operation under controlled conditions.
      Hours50.000 hours
    • InstallationRecessed
    • The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
      IP RatingIP20
    • Light ColourSelectable (Warm - Cool - Daylight)
    • Lumen4560 lm
    • Ratio between light output (lumens) and energy consumed (watts). A high value indicates better efficiency, ideal for saving energy without compromising lighting.
      Luminous Efficiency120 lm/W
    • Minimum and maximum voltage fluctuation that the product can withstand momentarily.
      Nominal Voltage100 V - 265 V
    • Power Factor0.96
    • ShapeCircular
    • Voltage level required for the product to function correctly.
      Voltage Range220-240V AC
    • Wattage38 W
  • Product Information

    • Light SourceOSRAM
    • LocationIndoor
    • Replaceable Light SourceYes
  • Product Data

    • CertificatesCE, RoHS, UKCA
    • Guarantee3 years
    • Product SeriesCircello

Description

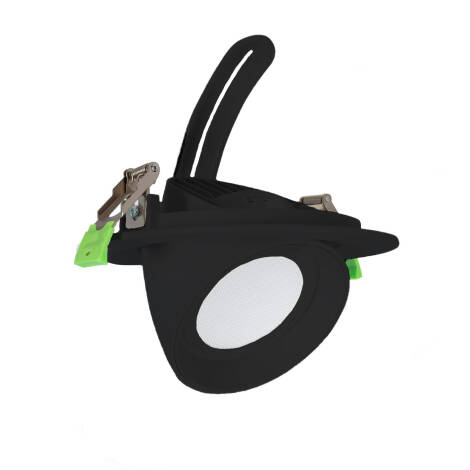

The Round Directional Floodlight perfectly combines design, power and energy savings. These qualities make it a very interesting option for the lighting of commercial premises and spaces.

Features of the 38W Directional Round LED Downlight 120 lm/W LIFUD No Flicker Chip OSRAM in Black

The floodlight has a directional design that allows the light emitted to be focused to provide versatile lighting, perfect for changing spaces, such as shop windows and shops or premises.

It integrates an LED light source with an opal diffuser that provides a very homogenous illumination and minimises reflections. In addition, thanks to its UGR 17, glare is reduced which reduces visual fatigue. Another important feature is its high colour rendering index CRI85, which indicates a high precision of the light source to represent colours in a true-to-life manner, without colour distortion. Furthermore, as it is a No-Flicker light, we avoid annoying flickering of the light.

With this spotlight the light is distributed in an opening angle of approximately 90º and allows the regulation of the colour temperature between warm white, neutral white or cold white.

It is made from aluminium, a material that offers quality, strength and durability and integrates driver. Given the features of this product, it is a perfect lighting element for places with many hours of daily activity such as shops, shopping centres, museums, hotels, supermarkets, restaurants, etc.

What does CCT (correlated colour temperature) mean?
When a product is marked as CCT it means that we can change the colour temperature. CCT is defined in Kelvin degrees, according to the colour perception of a white LED to the human eye, we can differentiate them into 3 types of colour; a warm light, a neutral light and a cool light, from 2700-3500K, 4000-4500K and 5000-6500K respectively. The CCT values do not indicate anything about the colour rendering capability of the LED.
