Range Advanced
  • 1-10 V, DALI
    Type Of Dimming 1-10 V, DALI

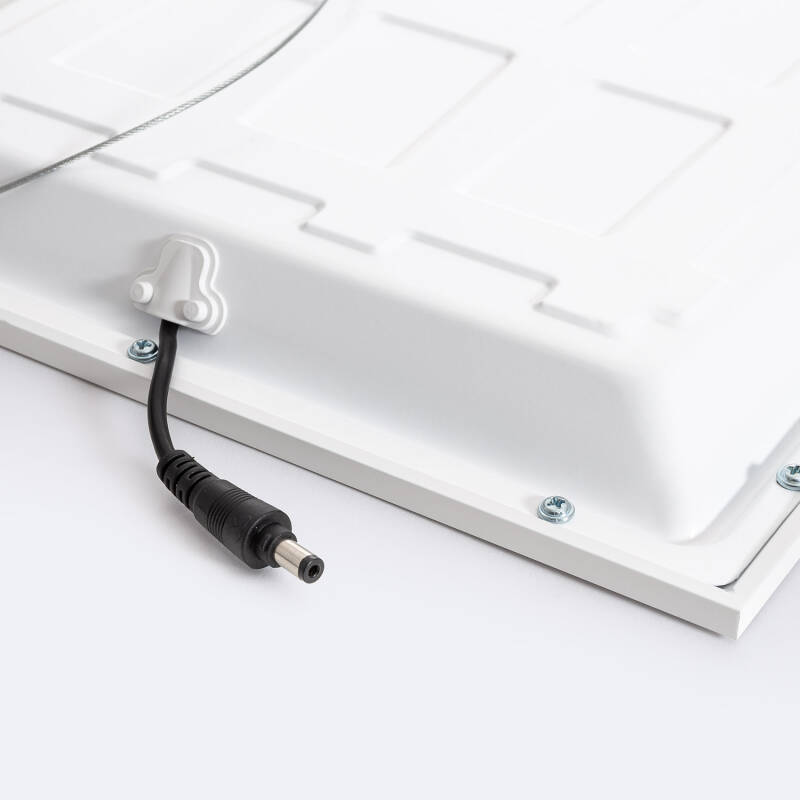

Image of 120x60cm Dimmable 63W LED Panel 6300lm
    Image of 120x60cm Dimmable 63W LED Panel 6300lm
    Image of 120x60cm Dimmable 63W LED Panel 6300lm
    Image of 120x60cm Dimmable 63W LED Panel 6300lm
    Image of 120x60cm Dimmable 63W LED Panel 6300lm
1 / 4
  • 1-10 V, DALI

    Type Of Dimming

    1-10 V, DALI

  • 63 W

    Wattage

    63 W

  • 220-240V AC

    Voltage Range

    220-240V AC

  • 6300 lm

    Lumens

    6300 lm

  • 0.97

    Power Factor

    0.97

  • UGR 19

    Glare Factor

    UGR 19

  • IP40

    IP Rating

    IP40

  • 1195 mm x 595 mm x 30 mm

    Dimensions

    1195 mm x 595 mm x 30 mm

  • 595 mm

    Width

    595 mm

  • 1195 mm

    Height

    1195 mm

  • 120x60 cm

    Frame

    120x60 cm

  • IK05

    IK Protection

    IK05

  • 100 lm/W

    Luminous Efficiency

    100 lm/W

120x60cm Dimmable 63W LED Panel 6300lm

Download technical datasheet

Ref. Ledkia: 70746

Colour Temperature Neutral White 4000K

Type Of Driver BOKE Dimmable 1-10V

Box Format Individual

In Stock, delivery in 15-20 days

71,99 €

VAT included
Energetic efficiency

In Stock, delivery in 15-20 days

PRO CLUB badge

Are you a lighting professional or a company?

  • Great discounts off PVP
  • Extended Warranty
  • Exclusive Services

Buy now, pay later

Credit payment

  • 30 Day Return

    You can renounce to this product during the first 30 calendar days from receipt, provided that the product remains in perfect condition for use.


    Custom-made products and cut-to-size strips are excluded.


    Full conditions here: After-sales service.

  • 5-7 days Free Delivery

    If you place your order today before 18:00h, delivery within 5-7 days (working days).


    Shipping is free on purchases over 49,99 € (incl. VAT).


    Full conditions here: Delivery methods.

  • 100% secure payments

    payment method image 1

    payment method image 2

    At Ledkia we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation.


    More information: Payment methods.

  • Up to 5 year warranty

    Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.


    You will find the exact product warranty in the technical details.


    Full conditions here: After-sales service.

Dimensions

  • Height1195 mm
  • Depth30 mm
  • Width595 mm

Downloads

  • pdf file

    Technical Data Sheet PDF

Certificates and Stamps

CertificateCertificateCertificateCertificate

Technical Specifications

  • Technical Information

    • Temperature range in which the product can operate optimally, ensuring its performance without overheating or damage.
      Ambient Working Temperature-20 °C~+40 °C
    • Quality, safety and compliance certifications that the product has obtained, such as CE, RoHS or UL, which guarantees that it meets industry standards and current regulations.
      CertificatesRoHS, CE, TÜV, ENEC
    • ColourWhite
    • Measures how accurately a light source displays colours compared to natural light. A high CRI (close to 100) ensures accurate colour rendering.
      Colour Rendering Index87
    • Defines the light tone, from warm white to cool white, measured in Kelvin (K).
      Colour Temperature4000K
    • Electrical Insulation ClassII
    • Fitting MaterialAluminium, PC
    • Frame120x60 cm
    • Frequency50-60 Hz
    • Low-glare products offer more comfortable lighting, suitable for extended use.
      Glare FactorUGR 19
    • Estimated lifespan of the product before it loses performance. Based on optimal, non-continuous use, and measured in hours of operation under controlled conditions.
      Hours50.000 hours
    • Protection grade that the product offers against physical impacts. It is measured on a scale from IK00 to IK10, with IK10 being the highest level of resistance to impact and mechanical damage.
      IK ProtectionIK05
    • InstallationFalse ceiling
    • The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
      IP RatingIP40
    • Light ColourNeutral White
    • Lumens6300 lm
    • Ratio between light output (lumens) and energy consumed (watts). A high value indicates better efficiency, ideal for saving energy without compromising lighting.
      Luminous Efficiency100 lm/W
    • Minimum and maximum voltage fluctuation that the product can withstand momentarily.
      Nominal Voltage85-265V AC
    • Power Factor0.97
    • Voltage level required for the product to function correctly.
      Voltage Range220-240V AC
    • Wattage63 W

  • Product Information

    • Light SourceSMD4014
    • Replaceable Light SourceYes
    • Type Of Dimming1-10 V, DALI
    • Type Of DriverBOKE Dimmable 1-10V
    • Type Of LensOpaal

  • Product Data

    • Guarantee5 years
    • LocationIndoor
Outdoor LED bollard

Description

The 63W 120x60cm 6300lm Dimmable LED Panel features an elegant finish, white lacquered aluminum frame and ultra thin design of only 10mm.

Its high efficiency 4-sided LED lighting system emits high luminosity, equivalent to that emitted by conventional fluorescent panels of up to 110W, achieving significant energy savings. With an immediate start, without noise and without flickering, this LED panel is perfect for places where you want to maximize the illuminated space, projecting the light uniformly and without glare.

It is equipped with a special diffuser that ensures a glare factor of UGR<19 (non-glare). The glare caused by the lighting can have a negative influence on people, because a comfortable lighting environment is needed to help us in our tasks, a low UGR level increases the feeling of well-being of the workers, which contributes to the level of productivity indirectly.

The 63W 120x60cm 6300lm Dimmable LED Panel is the ideal choice if you are looking for a panel with good performance and minimum consumption. It is widely used in offices, shopping centers, hospitals, warehouses, restaurants, supermarkets, museums, etc., as well as in homes and residences.

* They are installed in removable false ceilings, to be installed in false ceilings the panel needs the flush-mount kit and to be installed in ceilings you need the surface kit or the suspension kit.
