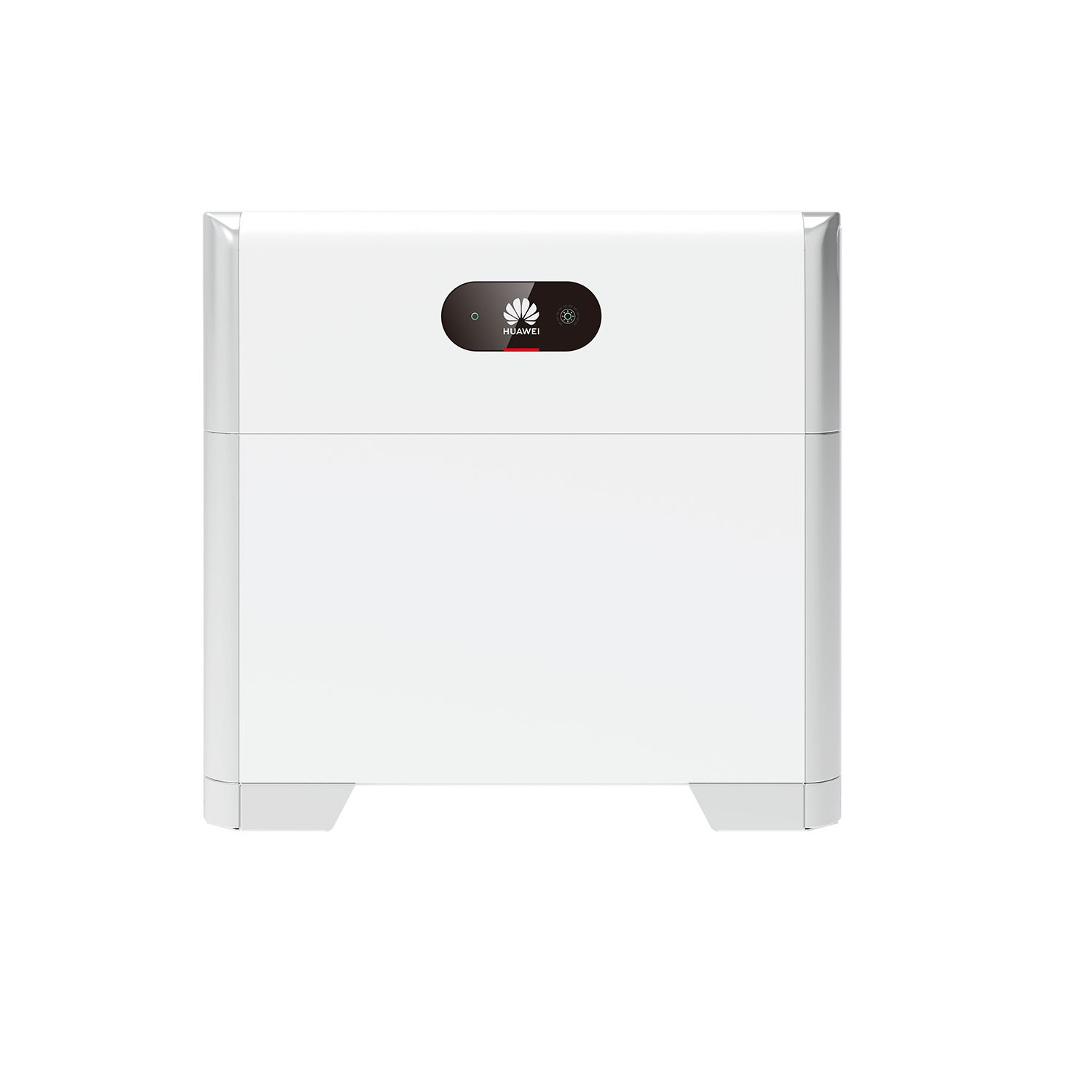

HUAWEI LUNA2000 360V Lithium Battery 5 kWh

The HUAWEI 360V LUNA2000 5 kWh Lithium Battery from Huawei is a modular battery for self-consumption systems with Huawei inverters, both single-phase and three-phase. This module requires the BMS (Battery Management System) to act as an interface with the inverter to which this accumulator is connected and acts as a battery management system. This module has 5kWh of useful energy.

With a single BMS you can control up to 3 modules, so you can connect several 5kWh LUNA2000 modules and create 10 or 15kWh storage systems. We could go up to a 30 kWh system by connecting two groups of three LUNA2000 modules in parallel. In short, we can choose to have a Huawei self-consumption system with storage in the following capacities: 5, 10, 15, 20, 25 and 30kWh.

The Huawei Luna2000 range operates at a nominal voltage of 360V when connected to a single-phase system, with an operating range of between 350 and 560V. Connected to a three-phase inverter, they operate at a nominal voltage of 600V with an operating range of between 600 and 980V. The battery has Lithium Ferrophosphate (LiFePO4) technology cells, offers IP65 protection and natural convection dissipation, with a sound level below 29 decibels. It can be wall or floor mounted, with a weight of 50kg per battery module and 12kg for the BMS controller module.

Huawei Luna2000 Lithium Battery Compatibility

The Luna2000 5kWh Lithium Battery is compatible with the KTL range of single-phase inverters from 2 to 6kW and the three-phase KTL-M1 from 3 to 10kW. Communication with the inverter is via the BMS via RS485 and also incorporates a CAN connection for parallel operation. The BMS has a small display to indicate the state of charge and a LED to show the operating status.
The Huawei Luna2000 5kWh Lithium Battery complies with all the certifications required for its use, such as CE, RCM, CEC, VDE2510-50, IEC62619, IEC 60730, UN38.3.

For more information, check the Huawei Guarantee Policy
