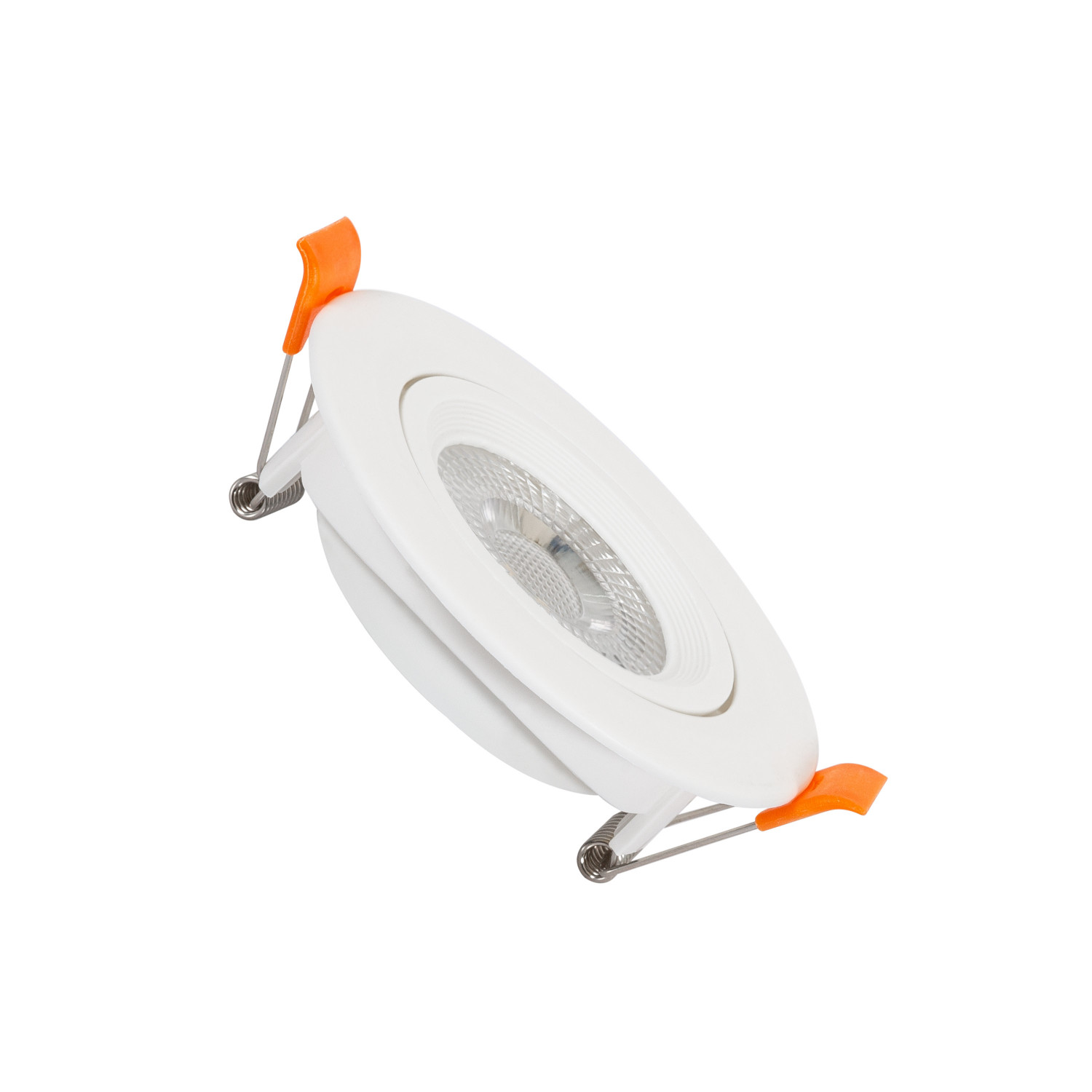

Round 5W Slim LED Downlight Ø75mm Cut Out SOLID

Technical Specifications

• Technical Information

  • Temperature range in which the product can operate optimally, ensuring its performance without overheating or damage.
    Ambient Working Temperature-30 °C~+45 °C
  • Measures in degrees how light spreads from the source. A wide angle covers more area, while a narrow one is ideal for highlighting details.
    Beam Angle60º
  • Quality, safety and compliance certifications that the product has obtained, such as CE, RoHS or UL, which guarantees that it meets industry standards and current regulations.
    CertificatesRoHS, CE, UKCA
  • Specification of the color of the product or its light (in the case of products such as lamps or light bulbs), which may affect the aesthetics and functionality of its use.
    ColourWhite
  • Measures how accurately a light source displays colours compared to natural light. A high CRI (close to 100) ensures accurate colour rendering.
    Colour Rendering Index82
  • Defines the light tone, from warm white to cool white, measured in Kelvin (K).
    Colour Temperature6000K
  • Amount of electrical current that flows through the product, measured in amperes (A). It is key to ensuring safe and efficient operation.
    Current Intensity18 mA
  • It indicates that the product allows parameters such as light intensity, speed or color temperature to be adjusted, providing greater flexibility and customization.
    DimmableNo
  • Ability to move or rotate the spotlight to direct the light as desired.
    DirectionalYes
  • Level of electrical protection of the product against shocks. Indicates whether it is suitable for different conditions of use, guaranteeing safety in the installation.
    Electrical Insulation ClassII
  • Composition of the product or its components, such as aluminum, steel, plastic or glass. The material influences the durability, design and thermal properties of the product.
    Fitting MaterialPC
  • Range of cycles per second at which the product operates, measured in hertz (Hz). A standard value ensures compatibility with local electrical networks.
    Frequency50-60 Hz
  • Low-glare products offer more comfortable lighting, suitable for extended use.
    Glare FactorUGR 19
  • Estimated lifespan of the product before it loses performance. Based on optimal, non-continuous use, and measured in hours of operation under controlled conditions.
    Hours40.000 hours
  • Information on how the product should be placed or mounted, such as instructions on whether it requires professional installation or is easy to do by the end user.
    InstallationRecessed
  • The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
    IP RatingIP20
  • Characteristic that describes the tone of light emitted by the product, such as warm, neutral or cool. It is measured in degrees Kelvin (K) and affects the atmosphere and the proper use of space.
    Light ColourCool White
  • Specification that describes the purpose or application of the product, such as lighting, air conditioning, or security, among others.
    LocationIndoor
  • Total amount of light emitted by the product, measured in lumens (lm). A high value ensures well-lit spaces.
    Lumens430 lm
  • Minimum and maximum voltage fluctuation that the product can withstand momentarily.
    Nominal Voltage170-240V AC
  • Physical configuration of the product, such as round, square, or elongated. It helps to integrate it into the aesthetics and design of the space where it will be installed.
    ShapeCircular
  • Voltage level required for the product to function correctly.
    Voltage Range220-240V AC
  • Indicates how much energy the light source consumes, measured in watts (W). In LED lighting, the power is much lower than in traditional sources, and is related to the light intensity (lumens).
    Wattage5 W

• Product Data

  • Number or name that identifies the series or product line to which an item belongs, generally indicating the style, characteristics or version of a range.
    Product SeriesSolid Slim
  • Period during which the customer has the right to have their product repaired or replaced in the event of manufacturing defects or malfunctions under normal conditions of use. For more information, consult our After-sales page.
    Warranty3 years

• Product Information

  • Element or component that emits light in the product, such as LEDs, incandescent or fluorescent bulbs. In LED systems, the light source is highly efficient and long-lasting.
    Light SourceCOB
