18W Galan Aluminium CCT Selectable SwitchDimm Slim Square LED Surface Lamp 210x210 mm
16,69 €
19,99 €
Ref: 95547
Colour Natural
In Stock, delivery in 15-20 days

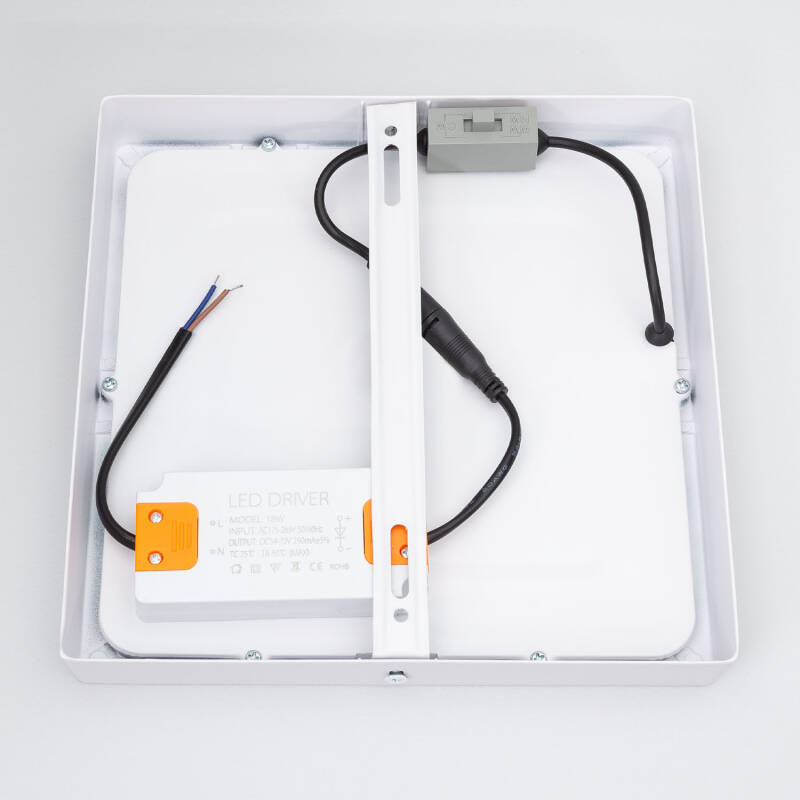

Includes Driver
Buy now, pay later
Credit paymentYou may like
Dimensions
- Height28 mm
- Depth210 mm
- Width210 mm
Downloads
Technical Data Sheet PDF
Certificates and Stamps
Technical Specifications
Technical Information
- Ambient Working Temperature-20 °C~+50 °CTemperature range in which the product can operate optimally, ensuring its performance without overheating or damage.
- CertificatesRoHS, CE, UKCAQuality, safety and compliance certifications that the product has obtained, such as CE, RoHS or UL, which guarantees that it meets industry standards and current regulations.
- ColourNatural
- Colour Temperature3000K - 6000KDefines the light tone, from warm white to cool white, measured in Kelvin (K).
- DimmableYes
- Driver Intensity290 mA
- Driver Tension54 V-72 VVoltage level that the driver uses to power the LEDs or electrical components of the product, ensuring their proper functioning.
- Electrical Insulation ClassII
- Fitting MaterialAluminium
- Frequency50-60 Hz
- Hours40.000 hoursEstimated lifespan of the product before it loses performance. Based on optimal, non-continuous use, and measured in hours of operation under controlled conditions.
- IK ProtectionIK05Protection grade that the product offers against physical impacts. It is measured on a scale from IK00 to IK10, with IK10 being the highest level of resistance to impact and mechanical damage.
- InstallationSurface
- IP RatingIP20The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
- Light ColourCCT
- Lumens1800 lm
- Luminous Efficiency100 lm/WRatio between light output (lumens) and energy consumed (watts). A high value indicates better efficiency, ideal for saving energy without compromising lighting.
- Voltage Range220-240V ACVoltage level required for the product to function correctly.
- Wattage18 W
- Working Temperature0 °C~+50 °CInternal temperature range in which the product can operate efficiently and safely. It is important to ensure its reliability under different usage conditions.
Product Data
- LocationIndoor
- Warranty3 years
Product Information
- Type Of Dimming10% - 50% - 100%, SwitchDimm
Description
The 18W Galan Aluminium CCT Selectable SwitchDimm Slim Square LED Surface Lamp 210x210 mm offers a soft, homogeneous and efficient illumination and has a modern and Nordic design.
Features of the 18W Galan Aluminium CCT Selectable SwitchDimm Slim Square LED Surface Lamp 210x210 mm
It adapts to all types of finishes and its installation in any type of ceiling, whether plaster, concrete or other types of surfaces, is really simple. The Galán Square LED ceiling light is recommended for new construction or refurbishment, replacing old spotlights. It is perfectly suitable for use in living rooms, offices, receptions, bedrooms, corridors, etc., although it is mainly used in homes.
Illuminate and decorate any space in a unique way with the 18W Galan Aluminium CCT Selectable SwitchDimm Slim Square LED Surface Lamp 210x210 mm, by means of a switch, you can select between 3 different colour temperatures: Warm White 3000K, Neutral White 4000K and Cool White 6000K.
It integrates SwitchDimm System. Its operation is very simple, it allows 3 brightness level adjustments with a single switch. To change the brightness level you only have to turn on, turn off and turn on quickly until you find the desired mode. The SwitchDimm system is not compatible with dimmer switches.
What does CCT (correlated colour temperature) mean?
When a product is marked as CCT it means that we can change the colour temperature. CCT is defined in degrees Kelvin, according to the colour perception of a white LED to the human eye, we can differentiate between 3 types of colour; a warm light, a neutral light and a cool light, from 2700-3500K, 4000-4500K and 5000-6500K respectively. The CCT values do not indicate anything about the colour rendering capability of the LED.
*The customer's visual perception of sizes, colours, textures, and so on, of our products, can be affected by factors such as ambient lighting, screen calibration, viewing angle or the device of each user. The customer must bear in mind that any returns made for reasons not related to the functionality of the product will be at the customer's expense.
