Voltage Range 220-240V AC
Max Wattage 800 W
IP Rating IP65
Fitting Material PC

1 / 5

Voltage Range
220-240V AC
Max Wattage
800 W
IP Rating
IP65
Fitting Material
PC
Brand
MERRYTEK

Finish PC

In Stock, delivery in 15-20 days
PC

Before 102,99 €

-52% (You save 54,00 €)

48,99 €

VAT included

In Stock, delivery in 15-20 days

Are you a lighting professional or a company?

Great discounts off PVP
Extended Warranty
Exclusive Services

See alternatives

Downloads

Technical Data Sheet PDF

Certificates and Stamps

Technical Specifications

Technical Information
- Temperature range in which the product can operate optimally, ensuring its performance without overheating or damage.
  Ambient Working Temperature-20 °C~+50 °C
- Quality, safety and compliance certifications that the product has obtained, such as CE, RoHS or UL, which guarantees that it meets industry standards and current regulations.
  CertificatesRoHS, CE, UKCA
- Defines the sensitivity area of a sensor in degrees. A wider angle will detect motion over a larger area.
  Detection Range360 °
- Describes the exterior material or texture of the product, from metallic to matte or shiny.
  FinishPC
- Composition of the product or its components, such as aluminum, steel, plastic or glass. The material influences the durability, design and thermal properties of the product.
  Fitting MaterialPC
- Range of cycles per second at which the product operates, measured in hertz (Hz). A standard value ensures compatibility with local electrical networks.
  Frequency50-60 Hz
- The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
  IP RatingIP65
- Specification that describes the purpose or application of the product, such as lighting, air conditioning, or security, among others.
  LocationOutdoor, Indoor
- The maximum amount of power that the product can safely consume, indicated in watts. It is important to ensure proper installation and avoid overloading.
  Max Wattage800 W
- Minimum and maximum voltage fluctuation that the product can withstand momentarily.
  Nominal Voltage100-277V AC
- Voltage level required for the product to function correctly.
  Voltage Range220-240V AC
Product Data
- Manufacturer or company responsible for designing and producing the product. A recognized name ensures quality and support.
  BrandMERRYTEK
- Period during which the customer has the right to have their product repaired or replaced in the event of manufacturing defects or malfunctions under normal conditions of use. For more information, consult our After-sales page.
  Warranty3 years

Description

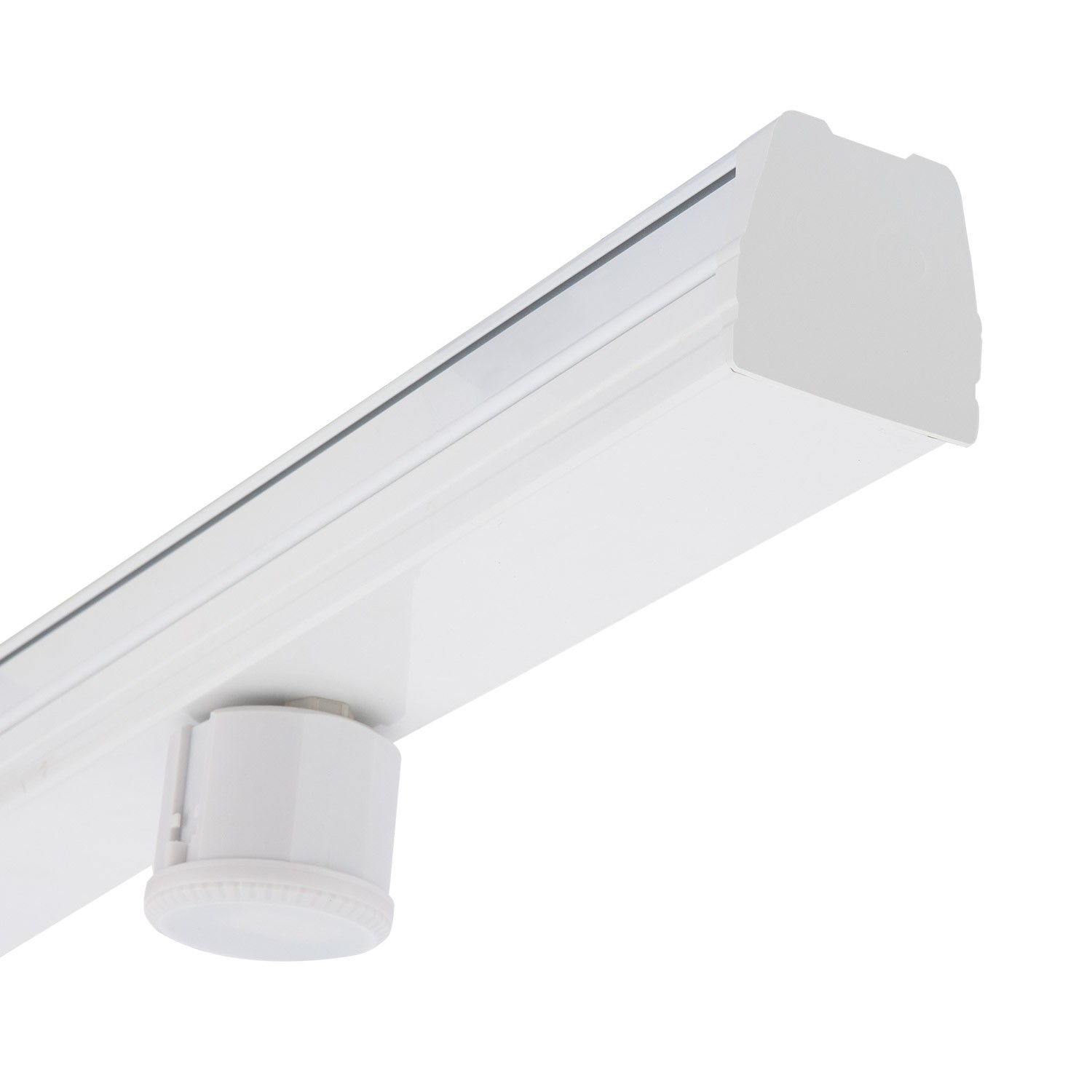

Motion Detector for 60W Trunking LED Linear Bar. When installed at a height of 15m its detection area is 15 square metres. It supports a maximum load of 800W in multi-voltage.Detection Area: 50% or 100% detection area. With the Merritek MH10 controller you can control functions such as:

Detection Area: Detection Area 50% or 100%.

Hold time: Time it stays on after detecting a movement. 5s ~ 30min.

Stand-by Period: Time that elapses between the luminaire entering Stand-by mode and the luminaire switching off completely.

Stand-by DIM Level: Illumination level in Stand-by mode. After detecting motion, this mode is entered.

Daylight Sensor: Minimum amount of light required for the luminaire to switch on. It can detect that night (5 Lux) or dusk (100-200 Lux) has arrived.

*End cap not included.

*The customer's visual perception of sizes, colours, textures, and so on, of our products, can be affected by factors such as ambient lighting, screen calibration, viewing angle or the device of each user. The customer must bear in mind that any returns made for reasons not related to the functionality of the product will be at the customer's expense.

Motion Detector for LED Linear Bar Trunking 60W MERRYTEK MC054V-RC2-A
