Pantalla Estanca Solar con LED Integrado 445mm 10W IP65

62.5cm 20W Solar Tri-Proof with Integrated-LED IP65

Ref: 73382 / PNTLL-STNC-SLR-NTGRD-20W-65

Before

Price not available

Would you like us to call you?
FREE

62.5cm 20W Solar Tri-Proof with Integrated-LED IP65

Ref: 73382 / PNTLL-STNC-SLR-NTGRD-20W-65

  • 20 W
  • 3200 lm
  • 120º
  • IP65
  • 120x120x625 mm
  • 3 Years
  • UKCA
  • Aluminium, PC
  • Daylight
  • 40,000 Hours
  • 180
  • Remote Control

Similar products

Description 62.5cm 20W Solar Tri-Proof with Integrated-LED IP65

The 625mm 20W Solar Tri-Proof with Integrated-LED IP65 is perfect for use as a substitute for conventional 40W fluorescent tubes in areas where sunlight is available, as it works with a Solar Panel, allowing us to save and make efficient energy consumption.

Characteristics of the 625mm 20W Solar Tri-Proof with Integrated-LED IP65

The 625mm 20W Solar Tri-Proof with Integrated-LED IP65 uses photovoltaic technology that takes advantage of the photoelectric effect, this is stored in a lithium battery that is integrated into the waterproof screen. It has a PIR sensor that detects movement at an angle of 120º and a distance of 8-10m. This mode works in such a way that when the luminaire perceives that it is not receiving sufficient illumination, around 25 lux, it will automatically switch on the waterproof screen with 20% illumination and when it detects a person it switches on at 100%, when it stops detecting the luminaire it returns to 20%.

To charge the battery during the day the switch should be kept in the "ON" position. It will not be necessary to operate the switch any further after switching it on.

When installing the 625mm 20W Solar Tri-Proof with Integrated-LED IP65, its orientation should be taken into account in order to collect as much solar radiation as possible.  If you are in the northern hemisphere adjust the panel as much as possible to the south, if on the contrary you are in the southern hemisphere you should adjust it to the north as much as possible. For faster battery charging speed, the panel should be positioned perpendicular to the solar radiation. Avoid installing the panels close to objects, trees and constructions that may cast shadows, putting the output of the panels at risk.

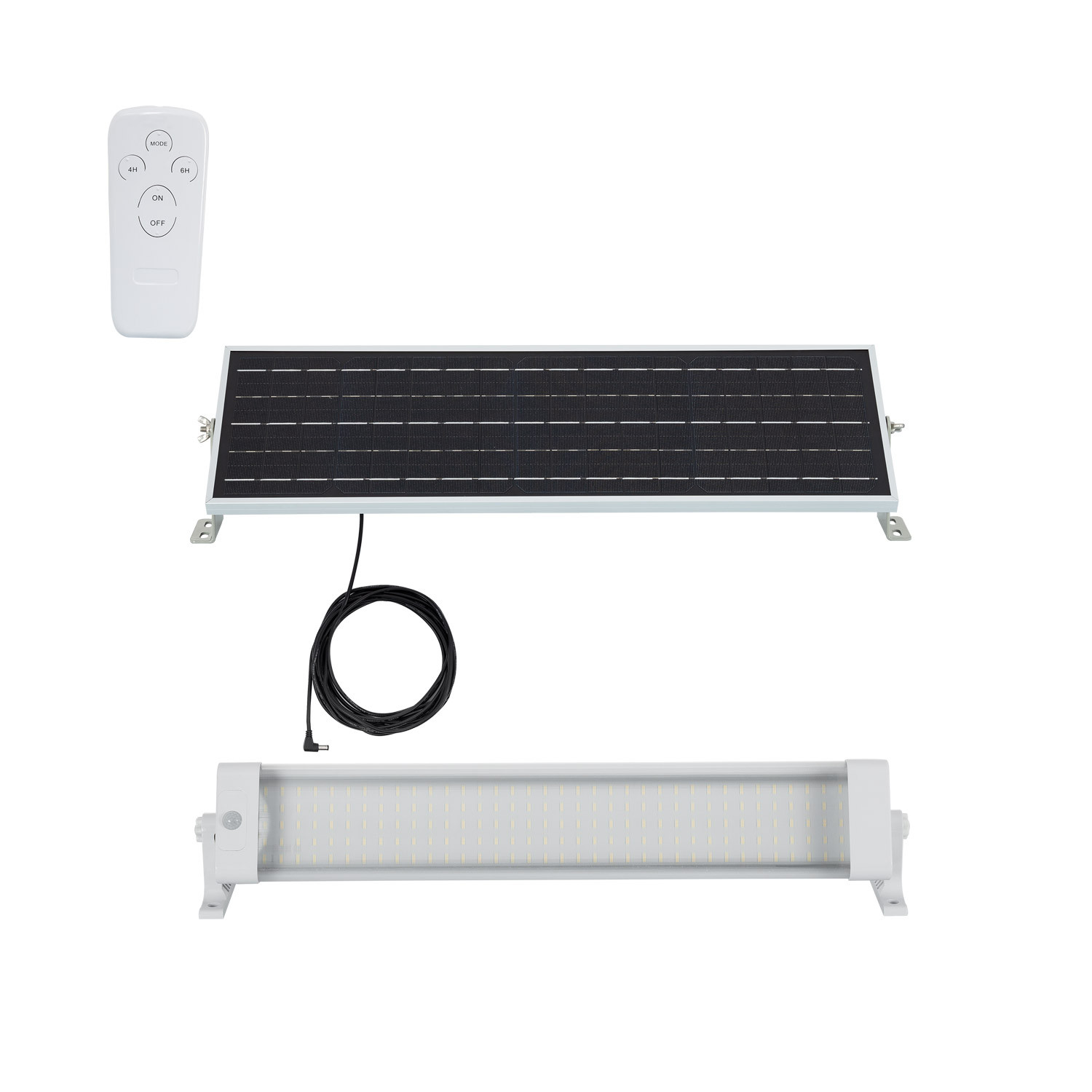

The 625mm 20W Solar Tri-Proof with Integrated-LED IP65 has high efficiency SMD 2835 LEDs which are powered by a LiFePO4 6.4V 18AH battery which has a discharge time of between 20h and 24h. This battery is charged by a built-in 9V 20W Monocrystalline Solar Panel. The cable from the solar panel to the screen is 4.9 meters long so you can place it wherever you want.


For a correct functioning of the panels it is necessary to carry out a correct maintenance, ensuring a cleaning of its surface on a regular basis.

Characteristics 62.5cm 20W Solar Tri-Proof with Integrated-LED IP65

Power: 20 W
Light Source: SMD3528
Number of LEDs: 180
Light Colour: Daylight
Lumens: 3200 lm
Luminous Efficiency: 160 lm/W
Energy Efficiency 2021 (UE-1369/2017): A++
Energy Efficiency 2023 (UE-2019/2015): F
Beam Angle: 120º
Use: Outdoor, Indoor
IP Protection: IP65
Material: Aluminium, PC
Installation: Surface
Size: 120x120x625 mm
Height: 120 mm
Width: 120 mm
Length: 625 mm
Detector: PIR
Detection Distance: 8-10 m
Detection Angle: 120º
Battery: LiFePO4
Number of Batteries: 1
Battery Voltage: 6.4 V
Battery Capacity: 18000 mAh
Range: 20 Hours
Charging Time: 6~8 Hours
Includes: Remote Control
Life Span: 40,000 Hours
Warranty: 3 Years
Certifications: UKCA, CE & RoHS
