Range Expert
  • 1500 W
    Wattage 1500 W
  • 220-240V AC
    Voltage Range 220-240V AC
  • 180000 lm
    Lumen 180000 lm
  • 0-10 V
    Type Of Dimming 0-10 V
Image of Professional Stadium 1500W LED Floodlight 0-10V DIMMABLE LUMILEDS 170lm/W INVENTRONICS IP66 Grey
  • 1500 W

    Wattage

    1500 W

  • 220-240V AC

    Voltage Range

    220-240V AC

  • 180000 lm

    Lumen

    180000 lm

  • 0-10 V

    Type Of Dimming

    0-10 V

  • 0.95

    Power Factor

    0.95

  • IP66

    IP Rating

    IP66

  • No

    Battery Operated

    No

  • 993 mm x 612 mm x 476 mm

    Dimensions

    993 mm x 612 mm x 476 mm

  • 612 mm

    Width

    612 mm

  • 993 mm

    Height

    993 mm

  • IK10

    IK Protection

    IK10

  • 150 lm/W

    Luminous Efficiency

    150 lm/W

Professional Stadium 1500W LED Floodlight 0-10V DIMMABLE LUMILEDS 170lm/W INVENTRONICS IP66 Grey

Download technical datasheet

Ref. Ledkia: 181301

Colour Temperature Warm White 3000K

Optic 60º

  • Available in other selections.
  • Available in other selections.

Pre-Order, estimated shipping from 17/08/2026

New

1.616,99 €

VAT included

Pre-Order, estimated shipping from 17/08/2026

PRO CLUB badge

Are you a lighting professional or a company?

  • Great discounts off PVP
  • Extended Warranty
  • Exclusive Services

Buy now, pay later

Credit payment

    • 30 calendar days to return

      You can renounce to this product during the first 30 calendar days from receipt, provided that the product remains in perfect condition for use.


      Custom-made products and cut-to-size strips are excluded.


      Full conditions here: After-Sales Service.

    • 5-7 days Delivery

      If you place your order today before 18:00h, delivery within 5-7 days (working days).


      Shipping is free on purchases over 49,99 € (incl. VAT).


      Full conditions here: Shipping methods.

    • 100% secure payments

      payment method image 1

      payment method image 2

      At Ledkia we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation.


      More information: Payment methods.

    • Warranty up to 5 years

      Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.


      You will find the exact product warranty in the technical details.


      Full conditions here: After-Sales Service.

Dimensions

  • Weight40 kg
  • Depth476 mm
  • Width612 mm
  • Height993 mm

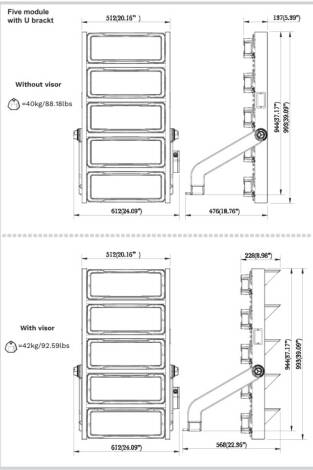

Scheme image

Downloads

  • pdf file

    Technical Data Sheet PDF

  • pdf file

    G2StadiumUserManual_V12401_1_

  • pdf file

    DRIVER_INVENTRONICS_N2025_12_24

Certificates and Stamps

CertificateCertificateCertificate

Technical Specifications

  • Electrical Features

    • Electrical Insulation ClassI
    • Frequency50-60 Hz
    • Light SourceLUMILEDS SMD2835
    • Minimum and maximum voltage fluctuation that the product can withstand momentarily.
      Nominal Voltage100 V - 277 V
    • Product's ability to withstand voltage spikes or electrical overloads, protecting internal components from potential damage due to current fluctuations.
      Overvoltage Protection10 kV
    • Remote ControlNo
    • Type Of Dimming0-10 V
    • Voltage level required for the product to function correctly.
      Voltage Range220-240V AC
    • Wattage1500 W

  • Materials and Finishes

    • ColourGrey
    • Fitting MaterialAluminium, Glass, PC
    • IncludesDriver, Quick Connector, Bracket
    • RAL Colour9006

  • Mechanical Features

    • Temperature range in which the product can operate optimally, ensuring its performance without overheating or damage.
      Ambient Working Temperature-30 °C~+45 °C
    • Protection grade that the product offers against physical impacts. It is measured on a scale from IK00 to IK10, with IK10 being the highest level of resistance to impact and mechanical damage.
      IK ProtectionIK10
    • InstallationSurface
    • Installation of the bracketWall with U-bracket, On-wall base with U-bracket, Pole with U-bracket
    • The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
      IP RatingIP66
    • LocationOutdoor
    • Type of lens that determines the distribution and quality of the light. It influences the illumination angle and light efficiency.
      Optic60º
    • Rotation Angle0 ° - 90 °

  • Driver Information

    • Auxiliary Cable0-10V
    • Driver BrandINVENTRONICS
    • Driver Intensity1600 mA
    • Driver Power50 W-500 W
    • Voltage level that the driver uses to power the LEDs or electrical components of the product, ensuring their proper functioning.
      Driver Tension480 V
    • WifiNo

  • Product Information

    • CertificatesCE, RoHS, UKCA
    • Guarantee7 years
    • Product SeriesStadium PRO-I

  • LED Features

    • Measures how accurately a light source displays colours compared to natural light. A high CRI (close to 100) ensures accurate colour rendering.
      Colour Rendering Index80
    • Defines the light tone, from warm white to cool white, measured in Kelvin (K).
      Colour Temperature3000K
    • Estimated lifespan of the product before it loses performance. Based on optimal, non-continuous use, and measured in hours of operation under controlled conditions.
      Hours80.000 Horas
    • Efficiency of the LEDs, measured as the amount of light generated per unit of energy consumed (lumens per watt). High efficiency ensures energy savings without losing light quality.
      LED Performance170 lm/W
    • Light ColourWarm White
    • Lumen180000 lm
    • Ratio between light output (lumens) and energy consumed (watts). A high value indicates better efficiency, ideal for saving energy without compromising lighting.
      Luminous Efficiency150 lm/W
    • Technology that ensures stable, flicker-free light. It improves visual experience and reduces eye fatigue.
      No FlickerNo Flicker
    • Power Factor0.95
    • Standard colour deviation (MacAdam)SDCM ≤ 5

Description

The Professional Stadium 1500W LED Floodlight is a high-performance floodlight projector designed for demanding outdoor lighting projects. It features a 0-10V dimmable driver from INVENTRONICS and delivers an impressive 180,000 lumens at an efficiency of 150 lm/W, making it suitable for large-scale stadium and sports facility illumination.

General information about Professional Stadium 1500W LED Floodlight 0-10V DIMMABLE LUMILEDS 170lm/W INVENTRONICS IP66 Grey

This floodlight projector incorporates advanced LUMILEDS SMD2835 modules combined with a robust aluminium and glass housing that ensures IP66 protection and IK10 impact resistance. The design features a 0% ULOR rating, minimising light pollution by preventing upward light emission. Equipped with an INVENTRONICS driver, it supports 0-10 V dimming control for flexible lighting management. The product operates efficiently within a wide voltage range of 100 V to 277 V and includes overvoltage protection rated at 10 kV. Its electrical insulation is class I, assuring safety in professional installations.

Use and applications

This LED floodlight projector is conceived for outdoor installation environments where high luminous output and durability are essential. It fits perfectly in stadiums and sports facilities, where the IP66 enclosure protects against dust and water ingress, and the IK10 rating ensures resistance to mechanical impacts typical in such zones. The product suits professional sectors requiring reliable, high-power illumination, such as municipal sports complexes or commercial stadiums, supported by the INVENTRONICS driver and 0-10 V dimming for precise lighting control.

Operating reliably within an ambient temperature range from -30 °C to +45 °C, it is designed for surface mounting using brackets compatible with walls, poles, or on-wall bases with U-brackets. The floodlight's robust aluminium construction and integrated quick connectors facilitate secure installation and maintenance. Its zero ULOR rating contributes to responsible lighting design by reducing light pollution, while the dimmable driver enables energy-efficient operation adapted to situational needs.

Key benefits

  • High luminous output with 180,000 lumens thanks to LUMILEDS modules and efficient driver technology.
  • Robust protection against environmental factors by means of IP66 enclosure and IK10 impact resistance.
  • Flexible lighting control enabled by 0-10 V dimming via an INVENTRONICS driver.
  • Minimised light pollution with 0% ULOR, suitable for sensitive outdoor environments.
  • Durable aluminium and glass construction ensuring longevity in demanding outdoor applications.

Highlighted specifications

Power: 1500 W; Protection rating: IP66; Impact resistance: IK10; Colour rendering index (CRI): 80; Power factor: 0,95; Operating temperature range: -30 °C to +45 °C.

Installation and maintenance

The floodlight is designed for surface mounting and can be installed on walls, poles, or on-wall bases using U-brackets, offering versatile fixing options. Installation requires adherence to the specified mounting methods to ensure optimal performance and safety. Quick connectors simplify electrical connections, reducing installation time and facilitating maintenance tasks. The product includes a driver and bracket to support reliable setup. Disconnect the power supply before any intervention.


Specialized lighting distribution in Ireland. If you are looking to buy Professional Stadium 1500W LED Floodlight 0-10V DIMMABLE LUMILEDS 170lm/W INVENTRONICS IP66 Grey with a professional warranty, it is a leading choice for durability and efficiency. Estimated shipping in 5 to 6 days (subject to stock availability). Quality certified by CE, RoHS, UKCA for professional installations and projects. Check price and availability here.
