Professional Stadium 900W LED Floodlight 0-10V Dimmable LUMILEDS 170lmn/W INVENTRONICS IP66

Range Expert

Wattage 900 W
Voltage Range 220-240V AC
Lumen 135000 lm
Number of LEDs 408

Wattage
900 W
Voltage Range
220-240V AC
Lumen
135000 lm
Number of LEDs
408
Type Of Dimming
0-10 V
Power Factor
0.95
IP Rating
IP66
Battery Operated
No
Dimensions
137 mm x 510 mm x 651 mm
Width
510 mm
Height
137 mm
IK Protection
IK10

New

915,99 €

VAT included

Pre-Order, estimated shipping from 17/08/2026

Are you a lighting professional or a company?

Great discounts off PVP
Extended Warranty
Exclusive Services

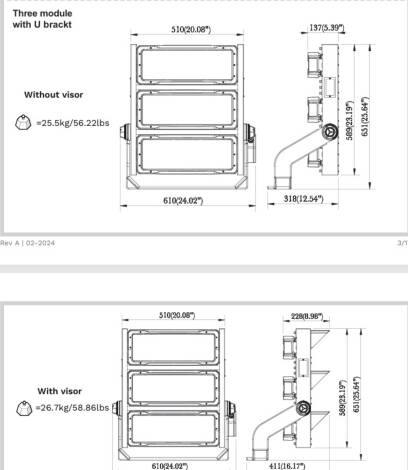

Dimensions

Height137 mm
Weight25.5 kg
Width510 mm
Depth651 mm

Downloads

PDF Datasheet 181129_366169 IE
G2StadiumUserManual_V12401_1_
DRIVER_INVENTRONICS_N2025_12_24

Certificates and Stamps

Technical Specifications

Electrical Features
- Electrical Insulation ClassI
- Frequency50-60 Hz
- Light SourceLUMILEDS SMD2835
- Minimum and maximum voltage fluctuation that the product can withstand momentarily.
  Nominal Voltage100 V - 277 V
- Product's ability to withstand voltage spikes or electrical overloads, protecting internal components from potential damage due to current fluctuations.
  Overvoltage Protection10 kV
- Remote ControlNo
- Type Of Dimming0-10 V
- Voltage level required for the product to function correctly.
  Voltage Range220-240V AC
- Wattage900 W
Materials and Finishes
- ColourGrey
- Fitting MaterialAluminium, Glass, PC
- IncludesDriver, Quick Connector, Bracket
- RAL Colour9006
Mechanical Features
- Temperature range in which the product can operate optimally, ensuring its performance without overheating or damage.
  Ambient Working Temperature-30 °C~+45 °C
- Protection grade that the product offers against physical impacts. It is measured on a scale from IK00 to IK10, with IK10 being the highest level of resistance to impact and mechanical damage.
  IK ProtectionIK10
- InstallationSurface
- Installation of the bracketPole with U-bracket
- The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
  IP RatingIP66
- LocationOutdoor
- Type of lens that determines the distribution and quality of the light. It influences the illumination angle and light efficiency.
  Optic30º
- Rotation Angle0 ° - 90 °
Driver Information
- Auxiliary Cable0-10V
- Driver BrandINVENTRONICS
- Driver Intensity1600 mA
- Driver Power50 W-500 W
- Voltage level that the driver uses to power the LEDs or electrical components of the product, ensuring their proper functioning.
  Driver Tension480 V
- Type Of Driver0-10V
- WifiNo
Product Information
- CertificatesCE, RoHS, UKCA
- Guarantee7 years
- Product SeriesStadium PRO-I
LED Features
- Measures how accurately a light source displays colours compared to natural light. A high CRI (close to 100) ensures accurate colour rendering.
  Colour Rendering Index80
- Defines the light tone, from warm white to cool white, measured in Kelvin (K).
  Colour Temperature5000K
- Estimated lifespan of the product before it loses performance. Based on optimal, non-continuous use, and measured in hours of operation under controlled conditions.
  HoursL70 100.00 hours
- Efficiency of the LEDs, measured as the amount of light generated per unit of energy consumed (lumens per watt). High efficiency ensures energy savings without losing light quality.
  LED Performance170 lm/W
- Light ColourDaylight
- Lumen135000 lm
- Ratio between light output (lumens) and energy consumed (watts). A high value indicates better efficiency, ideal for saving energy without compromising lighting.
  Luminous Efficiency150 lm/W
- Technology that ensures stable, flicker-free light. It improves visual experience and reduces eye fatigue.
  No FlickerNo Flicker
- Number of LEDs408
- Power Factor0.95
- Standard colour deviation (MacAdam)SDCM ≤ 5

Description

The Professional Stadium 900W LED Floodlight is a high-power projector designed for demanding outdoor lighting applications. It features a 0-10V dimmable driver from INVENTRONICS and delivers an impressive 135,000 lumen output with high luminous efficiency, ideal for large-scale sports or industrial environments.

General information about Professional Stadium 900W LED Floodlight 0-10V Dimmable LUMILEDS 170lmn/W INVENTRONICS IP66

This floodlight incorporates a robust aluminium housing combined with glass and PC components to ensure durability and protection. It is rated with IP66 for resistance against dust and water ingress, and IK10 for impact protection, making it suitable for harsh outdoor conditions. The product integrates a LUMILEDS SMD2835 light source and a dimmable 0-10V driver by INVENTRONICS, supporting control of light intensity. It operates with a power factor of 0.95 and features zero ULOR, minimising upward light pollution. The floodlight is part of the Stadium Profesional series, which offers modular LED sport lighting solutions with various optical distributions and power ranges.

Use and applications

This projector is designed for outdoor environments, particularly for installation on poles using a U-bracket, providing secure and stable mounting. Its high luminous flux and robust construction make it suitable for sectors such as sports facilities and industrial sites, where reliable and efficient lighting is essential. The floodlight’s IP66 rating and IK10 protection ensure it withstands challenging weather and mechanical impacts, supporting its use in exposed locations where durability is critical.

The device functions within a temperature range of -30 °C to +45 °C and is compatible with a 220–240 V AC supply, enabling integration into standard electrical networks. The inclusion of a quick connector and bracket facilitates installation and maintenance. Its dimmable driver allows flexible lighting control, adapting to different operational needs while maintaining efficiency and safety.

Key benefits

High luminous output thanks to the LUMILEDS SMD2835 modules, ensuring powerful illumination.
Robust protection with IP66 and IK10 ratings, providing resistance to environmental and mechanical stresses.
Efficient dimming control via 0-10V driver, allowing adaptable light levels for various scenarios.
Zero ULOR to reduce light pollution, enhancing environmental compliance in outdoor settings.
Durable aluminium construction combined with glass and PC materials for long-lasting performance.

Highlighted specifications

Power: 900 W; Luminous flux: 135,000 lm; Protection: IP66, IK10; Driver brand: INVENTRONICS; Power factor: 0.95.

Installation and maintenance

The floodlight is designed for surface mounting, typically on poles with a U-bracket, ensuring a secure fit. Installation should follow the recommended procedures to guarantee correct electrical connection and mechanical stability. The product includes a quick connector and driver for streamlined setup. Maintenance is facilitated by the durable materials and modular design, allowing easy access to components when needed.

Disconnect the power supply before any intervention.
