Range Expert
  • 1200 W
    Wattage 1200 W
  • 220-240V AC
    Voltage Range 220-240V AC
  • 180000 lm
    Lumen 180000 lm
  • 408
    Number of LEDs 408
Image of Professional Stadium 1200W LED Floodlight 0-10V Dimmable LUMILEDS 170lm/W INVENTRONICS
    Image of Professional Stadium 1200W LED Floodlight 0-10V Dimmable LUMILEDS 170lm/W INVENTRONICS
    Image of Professional Stadium 1200W LED Floodlight 0-10V Dimmable LUMILEDS 170lm/W INVENTRONICS
1 / 2
  • 1200 W

    Wattage

    1200 W

  • 220-240V AC

    Voltage Range

    220-240V AC

  • 180000 lm

    Lumen

    180000 lm

  • 408

    Number of LEDs

    408

  • 0-10 V

    Type Of Dimming

    0-10 V

  • 0.95

    Power Factor

    0.95

  • IP66

    IP Rating

    IP66

  • No

    Battery Operated

    No

  • 137 mm x 510 mm x 852 mm

    Dimensions

    137 mm x 510 mm x 852 mm

  • 510 mm

    Width

    510 mm

  • 137 mm

    Height

    137 mm

  • IK10

    IK Protection

    IK10

Professional Stadium 1200W LED Floodlight 0-10V Dimmable LUMILEDS 170lm/W INVENTRONICS

Download technical datasheet

Ref. Ledkia: 181126

Colour Temperature Daylight 5000K

Optic 60º

Pre-Order, estimated shipping from 17/08/2026

New

1.077,99 €

VAT included

Pre-Order, estimated shipping from 17/08/2026

PRO CLUB badge

Are you a lighting professional or a company?

  • Great discounts off PVP
  • Extended Warranty
  • Exclusive Services

Buy now, pay later

Credit payment

    • 30 calendar days to return

      You can renounce to this product during the first 30 calendar days from receipt, provided that the product remains in perfect condition for use.


      Custom-made products and cut-to-size strips are excluded.


      Full conditions here: After-Sales Service.

    • 5-7 days Delivery

      If you place your order today before 18:00h, delivery within 5-7 days (working days).


      Shipping is free on purchases over 49,99 € (incl. VAT).


      Full conditions here: Shipping methods.

    • 100% secure payments

      payment method image 1

      payment method image 2

      At Ledkia we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation.


      More information: Payment methods.

    • Warranty up to 5 years

      Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.


      You will find the exact product warranty in the technical details.


      Full conditions here: After-Sales Service.

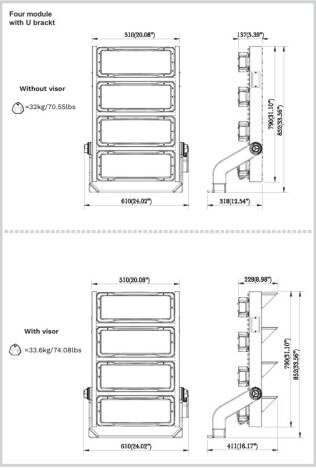

Dimensions

  • Height137 mm
  • Weight32 kg
  • Width510 mm
  • Depth852 mm
Scheme image

Downloads

  • pdf file

    Technical Data Sheet PDF

  • pdf file

    G2StadiumUserManual_V12401_1_

  • pdf file

    DRIVER_INVENTRONICS_N2025_12_24

Certificates and Stamps

CertificateCertificateCertificate

Technical Specifications

  • Electrical Features

    • Electrical Insulation ClassI
    • Frequency50-60 Hz
    • Light SourceLUMILEDS SMD2835
    • Minimum and maximum voltage fluctuation that the product can withstand momentarily.
      Nominal Voltage100 V - 277 V
    • Product's ability to withstand voltage spikes or electrical overloads, protecting internal components from potential damage due to current fluctuations.
      Overvoltage Protection10 kV
    • Remote ControlNo
    • Type Of Dimming0-10 V
    • Voltage level required for the product to function correctly.
      Voltage Range220-240V AC
    • Wattage1200 W

  • Materials and Finishes

    • ColourGrey
    • Fitting MaterialAluminium, Glass, PC
    • IncludesDriver, Quick Connector, Bracket
    • RAL Colour9006

  • Mechanical Features

    • Temperature range in which the product can operate optimally, ensuring its performance without overheating or damage.
      Ambient Working Temperature-30 °C~+45 °C
    • Protection grade that the product offers against physical impacts. It is measured on a scale from IK00 to IK10, with IK10 being the highest level of resistance to impact and mechanical damage.
      IK ProtectionIK10
    • InstallationSurface
    • Installation of the bracketWall with U-bracket, On-wall base with U-bracket, Pole with U-bracket
    • The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
      IP RatingIP66
    • LocationOutdoor
    • Type of lens that determines the distribution and quality of the light. It influences the illumination angle and light efficiency.
      Optic60º
    • Rotation Angle0 ° - 90 °

  • Driver Information

    • Auxiliary Cable0-10V
    • Driver BrandINVENTRONICS
    • Driver Intensity1600 mA
    • Driver Power50 W-500 W
    • Voltage level that the driver uses to power the LEDs or electrical components of the product, ensuring their proper functioning.
      Driver Tension480 V
    • WifiNo

  • Product Information

    • CertificatesCE, RoHS, UKCA
    • Guarantee7 years
    • Product SeriesStadium PRO-I

  • LED Features

    • Measures how accurately a light source displays colours compared to natural light. A high CRI (close to 100) ensures accurate colour rendering.
      Colour Rendering Index80
    • Defines the light tone, from warm white to cool white, measured in Kelvin (K).
      Colour Temperature5000K
    • Estimated lifespan of the product before it loses performance. Based on optimal, non-continuous use, and measured in hours of operation under controlled conditions.
      Hours80.000 Horas
    • Efficiency of the LEDs, measured as the amount of light generated per unit of energy consumed (lumens per watt). High efficiency ensures energy savings without losing light quality.
      LED Performance170 lm/W
    • Light ColourDaylight
    • Lumen180000 lm
    • Ratio between light output (lumens) and energy consumed (watts). A high value indicates better efficiency, ideal for saving energy without compromising lighting.
      Luminous Efficiency150 lm/W
    • Technology that ensures stable, flicker-free light. It improves visual experience and reduces eye fatigue.
      No FlickerNo Flicker
    • Number of LEDs408
    • Power Factor0.95
    • Standard colour deviation (MacAdam)SDCM ≤ 5

Description

The Professional Stadium 1200W LED Floodlight is a high-performance floodlight designed for outdoor environments, featuring 0-10V dimming control and a robust INVENTRONICS driver. It delivers a luminous efficacy of 150 lm/W and a powerful output of 180,000 lumens, ideal for professional sports and large-scale illumination projects.

General information about Professional Stadium 1200W LED Floodlight 0-10V Dimmable LUMILEDS 170lm/W INVENTRONICS

This LED floodlight incorporates advanced LUMILEDS SMD2835 modules with a luminous efficacy of 150 lm/W, ensuring efficient light output. The fixture is built with durable aluminium, glass, and PC materials, offering IP66 protection against dust and water, and IK10 impact resistance for enhanced robustness. It features a 0% ULOR rating, minimising light pollution by preventing upward light emission. The floodlight operates with a power factor of 0.95 and includes overvoltage protection up to 10 kV, ensuring electrical safety in demanding conditions. The INVENTRONICS driver supports 0-10V dimming, allowing precise control of light intensity. Its dimensions of 137 mm x 510 mm x 852 mm make it suitable for various mounting options, including wall and pole installations with a U-bracket.

Use and applications

This floodlight is designed for outdoor installation, particularly in environments requiring reliable and powerful illumination such as stadiums and sports facilities. Its robust IP66 enclosure and IK10 resistance make it suitable for exposure to harsh weather and mechanical impacts, which are common in public outdoor venues. The fixture's compatibility with 220-240V AC voltage ensures integration into standard electrical networks used by municipal and commercial sectors.

Thanks to its 0-10V dimming control and high power factor, it adapts well to installations where energy management and lighting regulation are important. The floodlight is suitable for projects where durability and maintenance reduction are priorities, supported by an estimated service life of 80,000 hours. Its overvoltage protection and electrical insulation class I add safety for demanding professional environments.

Key benefits

  • High luminous efficiency thanks to LUMILEDS SMD2835 modules, providing bright and consistent illumination.
  • Robust construction with aluminium, glass, and PC materials ensures durability in outdoor conditions.
  • Excellent protection with IP66 and IK10 ratings, safeguarding against dust, water, and impacts.
  • Zero upward light emission (ULOR 0%), reducing light pollution in outdoor installations.
  • Integrated overvoltage protection up to 10 kV enhances electrical safety and reliability.
  • Flexible dimming control via 0-10V interface allows precise lighting adjustment.
  • Long service life of 80,000 hours reduces maintenance and replacement costs.

Highlighted specifications

Power: 1200 W; Luminous flux: 180,000 lm; Protection rating: IP66; Impact resistance: IK10; Colour rendering index: 80; Power factor: 0,95.

Installation and maintenance

The floodlight is designed for surface mounting using the included U-bracket, suitable for walls, poles, or on-wall bases. Installation must follow the specified mounting system to ensure correct positioning and safety. The fixture includes a quick connector and driver for straightforward electrical connection. It is recommended to disconnect the power supply before any intervention. The floodlight operates reliably within an ambient temperature range of -30 °C to +45 °C, ensuring stable performance in diverse climates.

Disconnect the power supply before any intervention.


Specialized lighting distribution in Ireland. If you are looking to buy Professional Stadium 1200W LED Floodlight 0-10V Dimmable LUMILEDS 170lm/W INVENTRONICS with a professional warranty, it is a leading choice for durability and efficiency. Estimated shipping in 5 to 6 days (subject to stock availability). Quality certified by CE, RoHS, UKCA for professional installations and projects. Check price and availability here.
