  • 42 W
    Wattage 42 W
  • 220-240V AC
    Voltage Range 220-240V AC
  • 0.98
    Power Factor 0.98
  • IP20
    IP Rating IP20
Image of 220-240V PHILIPS Certadrive LED Driver 30-40V Output 1050mA 42W with Quick Connection Box
    Image of 220-240V PHILIPS Certadrive LED Driver 30-40V Output 1050mA 42W with Quick Connection Box
    Image of 220-240V PHILIPS Certadrive LED Driver 30-40V Output 1050mA 42W with Quick Connection Box
1 / 2
  • 42 W

    Wattage

    42 W

  • 220-240V AC

    Voltage Range

    220-240V AC

  • 0.98

    Power Factor

    0.98

  • IP20

    IP Rating

    IP20

  • No

    Battery Operated

    No

  • 32 mm x 108 mm x 44 mm

    Dimensions

    32 mm x 108 mm x 44 mm

  • 108 mm

    Width

    108 mm

  • 32 mm

    Height

    32 mm

  • PC

    Fitting Material

    PC

  • Philips

    Brand

    Philips

  • No

    Dimmable

    No

  • No Flicker

    No Flicker

    No Flicker

PHILIPS

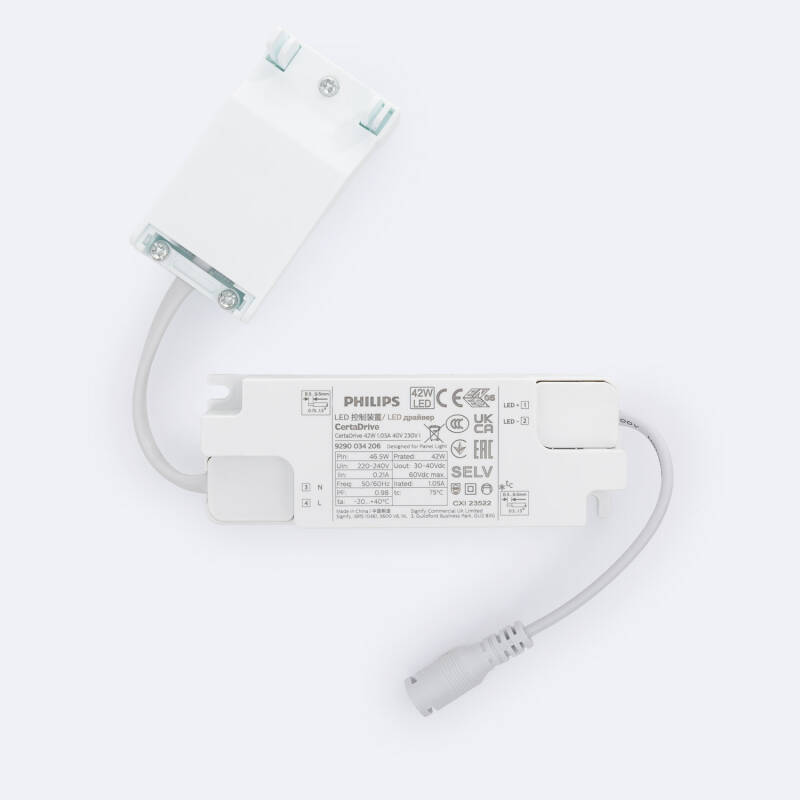

220-240V PHILIPS Certadrive LED Driver 30-40V Output 1050mA 42W with Quick Connection Box

PHILIPS
Download technical datasheet

Ref. Ledkia: 124536

Manuf. ref.: DRV-PHP-CRTDV-JB

Wattage 42 W

    7,69 €

    VAT included

    In Stock, delivery in 15-20 days

    PRO CLUB badge

    Are you a lighting professional or a company?

    • Great discounts off PVP
    • Extended Warranty
    • Exclusive Services

    Buy now, pay later

    Credit payment

      • 30 calendar days to return

        You can renounce to this product during the first 30 calendar days from receipt, provided that the product remains in perfect condition for use.


        Custom-made products and cut-to-size strips are excluded.


        Full conditions here: After-Sales Service.

      • 5-7 days Delivery

        If you place your order today before 18:00h, delivery within 5-7 days (working days).


        Shipping is free on purchases over 49,99 € (incl. VAT).


        Full conditions here: Shipping methods.

      • 100% secure payments

        payment method image 1

        payment method image 2

        At Ledkia we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation.


        More information: Payment methods.

      • Warranty up to 5 years

        Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.


        You will find the exact product warranty in the technical details.


        Full conditions here: After-Sales Service.

    Dimensions

    • Width108 mm
    • Height32 mm
    • Depth44 mm

    Downloads

    • pdf file

      PDF Datasheet 124536_259216 IE

    • pdf file

      DoC_124536_259216

    Certificates and Stamps

    CertificateCertificateCertificateCertificateCertificate

    Technical Specifications

    • Electrical Features

      • Electrical Insulation ClassII
      • Frequency50-60 Hz
      • Remote ControlNo
      • Voltage level required for the product to function correctly.
        Voltage Range220-240V AC
      • Wattage42 W

    • LED Features

      • Technology that ensures stable, flicker-free light. It improves visual experience and reduces eye fatigue.
        No FlickerNo Flicker
      • Power Factor0.98

    • Mechanical Features

      • Temperature range in which the product can operate optimally, ensuring its performance without overheating or damage.
        Ambient Working Temperature-10 °C~+45 °C
      • Indicates whether the product or its materials are fire-resistant, enhancing safety in high-temperature or flame-risk areas.
        Fire RatedYes
      • The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
        IP RatingIP20
      • LocationIndoor

    • Product Information

      • BrandPhilips
      • CertificatesCE, RoHS, ENEC, UKCA, EAC
      • Guarantee3 years

    • Materials and Finishes

      • Fitting MaterialPC

    • Driver Information

      • Driver BrandPHILIPS Certadrive
      • Driver Intensity1050 mA
      • Driver Power31.5 W-42 W
      • Voltage level that the driver uses to power the LEDs or electrical components of the product, ensuring their proper functioning.
        Driver Tension30 V DC-40 V DC
      • Type Of DriverPHILIPS Certadrive
      • WifiNo

    Description

    Discover the Certadrive constant current driver from the renowned brand PHILIPS for your lighting needs. This versatile driver is compatible with an input of 220-240V and offers a stable output of 30-40V at 1050mA, perfect for applications requiring up to 42W. Additionally, its quick connection box makes installation fast and easy. Trust in the quality and reliability of PHILIPS for your lighting projects.
