Industrial Differential Switch 2P 300mA 63A 10kA Class AC MAXGE
Price
Before €
€
Price not available
FREE

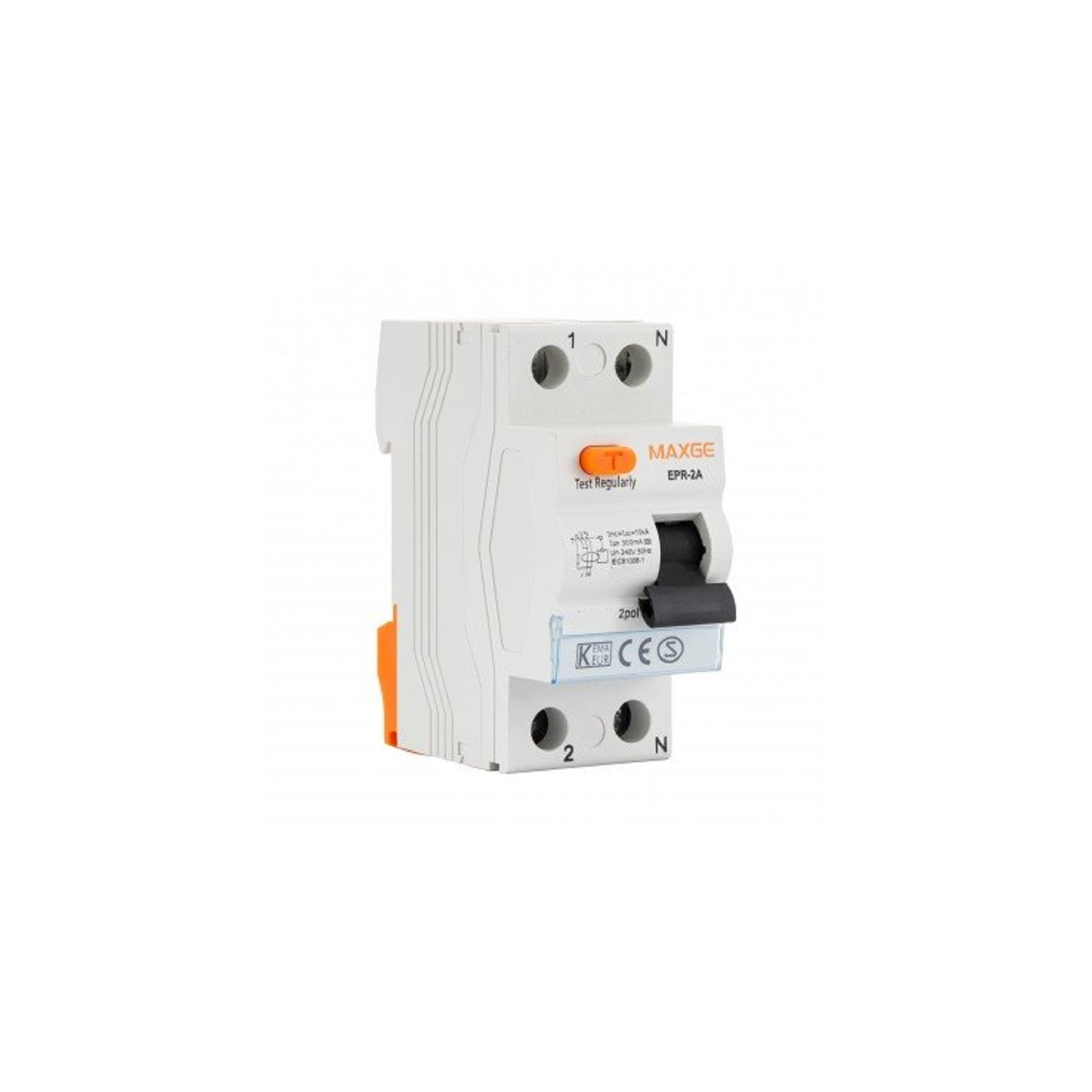

Industrial Differential Switch 2P 300mA 63A 10kA Class AC MAXGE
Ref: 79090 / EPR2C063300
Description Industrial Differential Switch 2P 300mA 63A 10kA Class AC MAXGE
2-pole residual current circuit breaker, class AC and residential range. A top-of-the-range product capable of withstanding a very high number of operations. Suitable for protection against direct and indirect contacts, it has a rated current of 63 amperes, a sensitivity of 300 mA, a breaking capacity of 10 kA and a working voltage of 400/230V AC. It offers a cable connection capacity of up to 35 mm² and allows the use of pin and fork type connection combs. It complies with international standard EN/IEC61008-1 and is CE & RoHS certified.
Reference: 63 A - EPR2C063300
Characteristics Industrial Differential Switch 2P 300mA 63A 10kA Class AC MAXGE
| Breaking capacity: | 10 kA |
| Multi-Voltage: | 230-400V AC |
| Frequency: | 50-60 Hz |
| Use: | Indoor |
| IP Protection: | IP20 |
| Material: | ABS, PC |
| Height: | 81.5 mm |
| Width: | 36 mm |
| Total Weight: | 0.201 kg |
| Warranty: | 3 Years |
| Certifications: | UKCA, CE & RoHS |
| Brand: | MAXGE |
