18W Solid Ground Recessed Outdoor Spotlight Stainless Steel
72,99 €
95,99 €
Ref: 96296
Colour Temperature Warm White 3000K
Pre-Order, estimate delivery from 90 days
Buy now, pay later

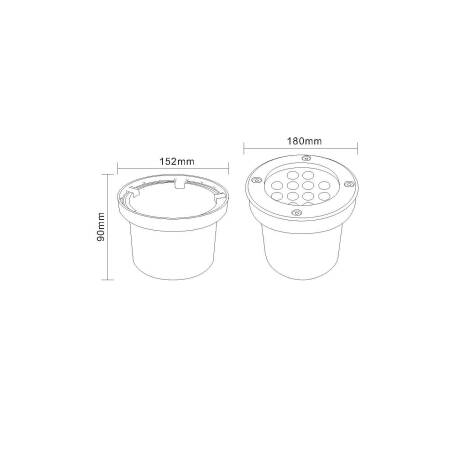

Credit paymentDimensions
- Weight1 kg
- Diameter180 mm
- Height90 mm
- Cut Out DimensionsØ152 mm
Downloads
Technical Data Sheet PDF
DoC_96296_199666
DoC_96296_199666
Certificates and Stamps
Technical Specifications
Electrical Features
- Electrical Insulation ClassI
- Frequency50-60 Hz
- No. Of Lights1
- Nominal Voltage85 V - 265 VMinimum and maximum voltage fluctuation that the product can withstand momentarily.
- Voltage Range220-240V ACVoltage level required for the product to function correctly.
- Wattage18 W
Mechanical Features
- IK ProtectionIK10Protection grade that the product offers against physical impacts. It is measured on a scale from IK00 to IK10, with IK10 being the highest level of resistance to impact and mechanical damage.
- InstallationRecessed, Floor
- IP RatingIP67The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
- LocationOutdoor
- Working Temperature-20 °C~+50 °CInternal temperature range in which the product can operate efficiently and safely. It is important to ensure its reliability under different usage conditions.
LED Features
- Beam Angle30ºMeasures in degrees how light spreads from the source. A wide angle covers more area, while a narrow one is ideal for highlighting details.
- Colour Temperature3000KDefines the light tone, from warm white to cool white, measured in Kelvin (K).
- Hours40.000 hoursEstimated lifespan of the product before it loses performance. Based on optimal, non-continuous use, and measured in hours of operation under controlled conditions.
- Light ColourWarm White
- Lumen1637 lm
- Number of LEDs18
Materials and Finishes
- ColourStainless Steel
- Fitting MaterialStainless Steel
Product Information
- CertificatesCE, RoHS, UKCA
- Guarantee3 years
Driver Information
- WifiNo
Description
The 18W Solid Ground Recessed Outdoor Spotlight Stainless Steel allows us to illuminate in a different way different outdoor spaces such as gardens, patios or passageways, to cite some of the most frequent examples of the use of this product.
Its light source provides a luminosity equivalent to a conventional luminaire of around 65W. It is, therefore, an outdoor LED lighting device that can act as a central or complementary element of our lighting system. On the other hand, the 18W LED ground recessed spotlight operates at 220-240V AC and requires cut-out dimensions of Ø180x95 mm.
As it is an outdoor element, it is made of stainless steel and has an IP67 protection rating that guarantees complete watertightness against dust and temporary immersion.
