Range Advanced
  • 6 W
    Wattage 6 W
  • 220-240V AC
    Voltage Range 220-240V AC
  • 720 lm
    Lumen 720 lm
  • Ø45 mm
    Cut Out Dimensions Ø45 mm

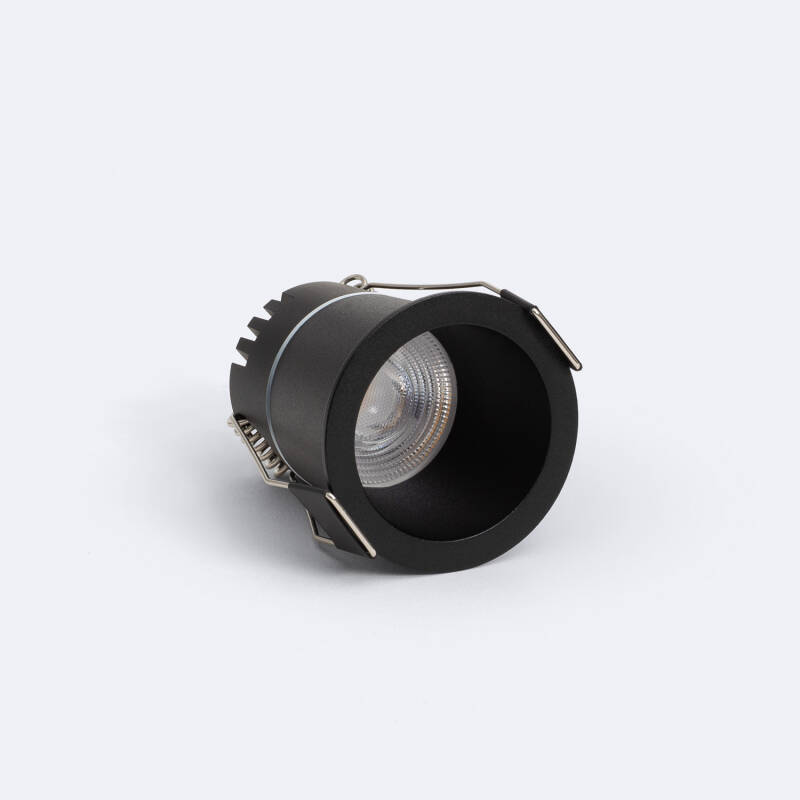

Image of Mini Deep LED Downlight 6W Ø45 mm Cut Out
    Image of Mini Deep LED Downlight 6W Ø45 mm Cut Out
    Image of Mini Deep LED Downlight 6W Ø45 mm Cut Out
    Image of Mini Deep LED Downlight 6W Ø45 mm Cut Out
    Image of Mini Deep LED Downlight 6W Ø45 mm Cut Out
    Image of Mini Deep LED Downlight 6W Ø45 mm Cut Out
    Image of Mini Deep LED Downlight 6W Ø45 mm Cut Out
1 / 6
  • 6 W

    Wattage

    6 W

  • 220-240V AC

    Voltage Range

    220-240V AC

  • 720 lm

    Lumen

    720 lm

  • Ø45 mm

    Cut Out Dimensions

    Ø45 mm

  • 52 mm

    Diameter

    52 mm

  • IP65

    IP Rating

    IP65

  • No

    Battery Operated

    No

  • 63 mm x Ø52 mm

    Dimensions

    63 mm x Ø52 mm

  • 63 mm

    Height

    63 mm

  • IK05

    IK Protection

    IK05

  • 120 lm/W

    Luminous Efficiency

    120 lm/W

  • 36º

    Beam Angle

    36º

Mini Deep LED Downlight 6W Ø45 mm Cut Out

Download technical datasheet

Ref. Ledkia: 168135

Colour Temperature Cool White 4000K

Colour Black

Pre-Order, estimated shipping from 11/07/2026

14,49 €

VAT included
Energetic efficiency

Pre-Order, estimated shipping from 11/07/2026

PRO CLUB badge

Are you a lighting professional or a company?

  • Great discounts off PVP
  • Extended Warranty
  • Exclusive Services

Buy now, pay later

Credit payment

    • 30 calendar days to return

      You can renounce to this product during the first 30 calendar days from receipt, provided that the product remains in perfect condition for use.


      Custom-made products and cut-to-size strips are excluded.


      Full conditions here: After-Sales Service.

    • 5-7 days Delivery

      If you place your order today before 18:00h, delivery within 5-7 days (working days).


      Shipping is free on purchases over 49,99 € (incl. VAT).


      Full conditions here: Shipping methods.

    • 100% secure payments

      payment method image 1

      payment method image 2

      At Ledkia we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation.


      More information: Payment methods.

    • Warranty up to 5 years

      Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.


      You will find the exact product warranty in the technical details.


      Full conditions here: After-Sales Service.

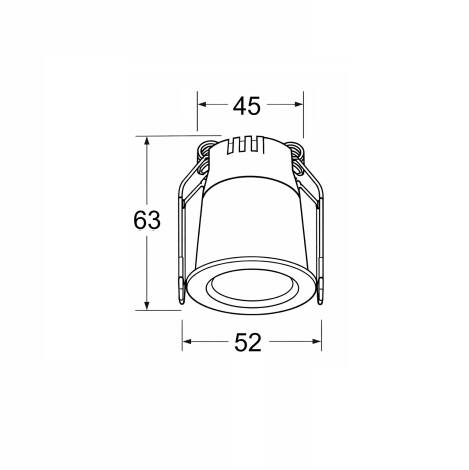

Dimensions

  • Diameter52 mm
  • Height63 mm
  • Cut Out DimensionsØ45 mm
Scheme image

Downloads

  • pdf file

    Technical Data Sheet PDF

  • pdf file

    DoC_168135_344560

Certificates and Stamps

CertificateCertificateCertificate

Technical Specifications

  • Electrical Features

    • Current Intensity160 mA
    • Electrical Insulation ClassII
    • Frequency50-60 Hz
    • Voltage level required for the product to function correctly.
      Voltage Range220-240V AC
    • Wattage6 W

  • Mechanical Features

    • Temperature range in which the product can operate optimally, ensuring its performance without overheating or damage.
      Ambient Working Temperature0 °C~+60 °C
    • Ability to move or rotate the spotlight to direct the light as desired.
      DirectionalNo
    • Protection grade that the product offers against physical impacts. It is measured on a scale from IK00 to IK10, with IK10 being the highest level of resistance to impact and mechanical damage.
      IK ProtectionIK05
    • InstallationRecessed
    • The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
      IP RatingIP65
    • LocationOutdoor, Indoor
    • ShapeCircular

  • Product Information

    • CertificatesCE, RoHS, UKCA
    • Guarantee3 years
    • Product SeriesDeep

  • LED Features

    • Measures in degrees how light spreads from the source. A wide angle covers more area, while a narrow one is ideal for highlighting details.
      Beam Angle36º
    • Measures how accurately a light source displays colours compared to natural light. A high CRI (close to 100) ensures accurate colour rendering.
      Colour Rendering Index90
    • Defines the light tone, from warm white to cool white, measured in Kelvin (K).
      Colour Temperature4000K
    • Estimated lifespan of the product before it loses performance. Based on optimal, non-continuous use, and measured in hours of operation under controlled conditions.
      Hours40.000 hours
    • Light ColourCool White
    • Lumen720 lm
    • Ratio between light output (lumens) and energy consumed (watts). A high value indicates better efficiency, ideal for saving energy without compromising lighting.
      Luminous Efficiency120 lm/W

  • Driver Information

    • Driver Intensity160 mA
    • Voltage level that the driver uses to power the LEDs or electrical components of the product, ensuring their proper functioning.
      Driver Tension30 V-40 V
    • WifiNo

  • Materials and Finishes

    • ColourBlack
    • Fitting MaterialAluminium

Description

Introducing the Mini Deep LED Downlight 6W Ø45 mm Cut Out, a versatile lighting solution designed for both indoor and outdoor applications. With a robust power output of 6 watts, this downlight delivers an impressive luminosity of 720 lumens, ensuring bright and efficient illumination. Its compact design features a cut-out diameter of Ø45 mm, making it ideal for various ceiling types and installations. Engineered for longevity and performance, the Mini Deep LED Downlight combines energy efficiency with modern aesthetics, seamlessly blending into contemporary spaces. Whether you're enhancing the ambiance of a living area or providing functional lighting in outdoor settings, this LED downlight offers the flexibility to meet diverse lighting needs. Crafted with high-quality materials, it guarantees durability and reliable performance, while the LED technology ensures a longer lifespan compared to traditional lighting options. Elevate your lighting design with the Mini Deep LED Downlight 6W, an optimal choice for those seeking a powerful yet discreet lighting solution.
