  • 12 W
    Wattage 12 W
  • 220-240V AC
    Voltage Range 220-240V AC
  • 1440 lm
    Lumens 1440 lm
  • Ø75 mm
    Cut Out Dimensions Ø75 mm

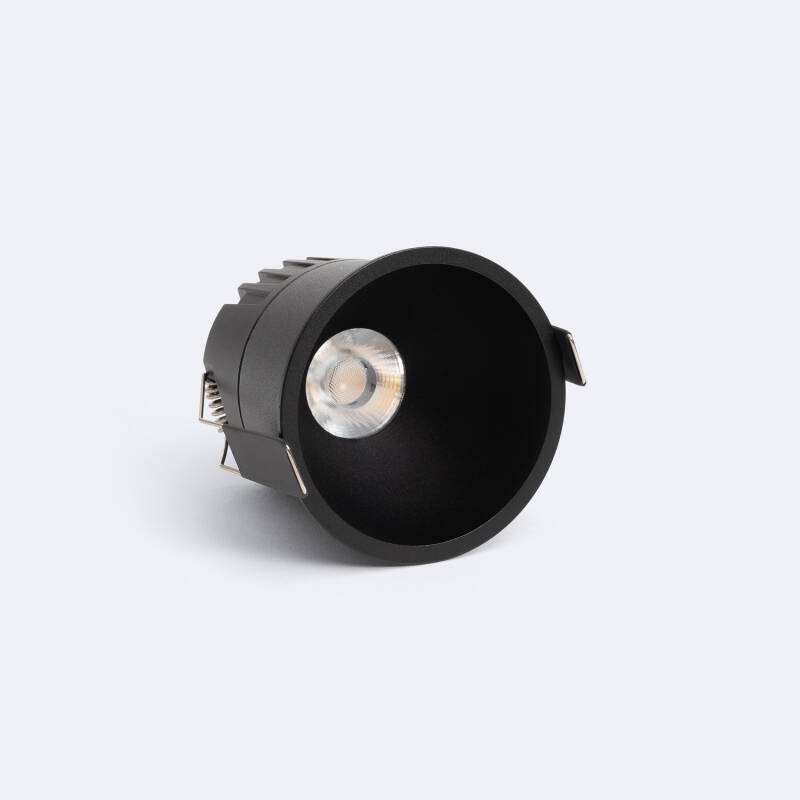

Image of Deep LED Downlight 12W Ø 75mm Cut Out
  • 12 W

    Wattage

    12 W

  • 220-240V AC

    Voltage Range

    220-240V AC

  • 1440 lm

    Lumens

    1440 lm

  • Ø75 mm

    Cut Out Dimensions

    Ø75 mm

  • 85 mm

    Diameter

    85 mm

  • IP65

    IP Rating

    IP65

  • No

    Battery Operated

    No

  • 77 mm x Ø85 mm

    Dimensions

    77 mm x Ø85 mm

  • 77 mm

    Height

    77 mm

  • IK05

    IK Protection

    IK05

  • 120 lm/W

    Luminous Efficiency

    120 lm/W

  • 36º

    Beam Angle

    36º

Deep LED Downlight 12W Ø 75mm Cut Out

Download technical datasheet

Ref. Ledkia: 168130

Colour Temperature Selectable (Warm - Cool) (2700K - 3200K - 4000K)

Colour White

Pre-Order, estimated shipping from 01/11/2025

18,19 €

VAT included
Energetic efficiency

Pre-Order, estimated shipping from 01/11/2025

PRO CLUB badge

Are you a lighting professional or a company?

  • Great discounts off PVP
  • Extended Warranty
  • Exclusive Services

Buy now, pay later

Credit payment

    • 30 Day Return

      You can renounce to this product during the first 30 calendar days from receipt, provided that the product remains in perfect condition for use.


      Custom-made products and cut-to-size strips are excluded.


      Full conditions here: After-sales service.

    • 5-7 days Free Delivery

      If you place your order today before 18:00h, delivery within 5-7 days (working days).


      Shipping is free on purchases over 49,99 € (incl. VAT).


      Full conditions here: Delivery methods.

    • 100% secure payments

      payment method image 1

      payment method image 2

      At Ledkia we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation.


      More information: Payment methods.

    • Up to 5 year warranty

      Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.


      You will find the exact product warranty in the technical details.


      Full conditions here: After-sales service.

Dimensions

  • Cut Out DimensionsØ75 mm
  • Diameter85 mm
  • Height77 mm

Downloads

  • pdf file

    Technical Data Sheet PDF

Certificates and Stamps

CertificateCertificateCertificate

Technical Specifications

  • Technical Information

    • Measures in degrees how light spreads from the source. A wide angle covers more area, while a narrow one is ideal for highlighting details.
      Beam Angle36º
    • Quality, safety and compliance certifications that the product has obtained, such as CE, RoHS or UL, which guarantees that it meets industry standards and current regulations.
      CertificatesRoHS, CE, UKCA
    • ColourWhite
    • Measures how accurately a light source displays colours compared to natural light. A high CRI (close to 100) ensures accurate colour rendering.
      Colour Rendering Index90
    • Defines the light tone, from warm white to cool white, measured in Kelvin (K).
      Colour Temperature(2700K - 3200K - 4000K)
    • Current Intensity300 mA
    • DimmableNo
    • Driver Intensity300 mA
    • Voltage level that the driver uses to power the LEDs or electrical components of the product, ensuring their proper functioning.
      Driver Tension30 V-40 V
    • Electrical Insulation ClassII
    • Fitting MaterialAluminium
    • Frequency50-60 Hz
    • Estimated lifespan of the product before it loses performance. Based on optimal, non-continuous use, and measured in hours of operation under controlled conditions.
      Hours40.000 hours
    • Protection grade that the product offers against physical impacts. It is measured on a scale from IK00 to IK10, with IK10 being the highest level of resistance to impact and mechanical damage.
      IK ProtectionIK05
    • InstallationRecessed
    • The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
      IP RatingIP65
    • Light ColourSelectable (Warm - Cool)
    • Lumens1440 lm
    • Ratio between light output (lumens) and energy consumed (watts). A high value indicates better efficiency, ideal for saving energy without compromising lighting.
      Luminous Efficiency120 lm/W
    • ShapeCircular
    • Voltage level required for the product to function correctly.
      Voltage Range220-240V AC
    • Wattage12 W

  • Product Data

    • Guarantee3 years
    • Product SeriesDeep

  • Product Information

    • LocationOutdoor, Indoor
    • Replaceable Light SourceNo
Big discounts on ceiling fans

Description

Introducing the Deep LED Downlight 12W Ø 75mm Cut Out, a versatile lighting solution designed for both indoor and outdoor applications. With a power output of 12 watts, this downlight delivers an impressive luminosity of 1440 lumens, providing bright and efficient illumination for any space. Its compact design features a cut-out size of Ø75 mm, making it suitable for various installation settings, from residential areas to commercial environments. The Deep LED Downlight is engineered for durability and performance, ensuring long-lasting functionality while enhancing the aesthetic appeal of your surroundings. Ideal for illuminating hallways, kitchens, or outdoor patios, this downlight combines modern design with energy efficiency, reducing electricity consumption without compromising on brightness. The sleek profile seamlessly integrates into any décor, making it a perfect choice for contemporary lighting needs. Experience the perfect blend of style and practicality with the Deep LED Downlight 12W Ø 75mm Cut Out, a reliable choice for quality lighting that meets your diverse needs.
