  • 8 W
    Wattage 8 W
  • 220-240V AC
    Voltage Range 220-240V AC
  • 960 lm
    Lumens 960 lm
  • Ø52 mm
    Cut Out Dimensions Ø52 mm

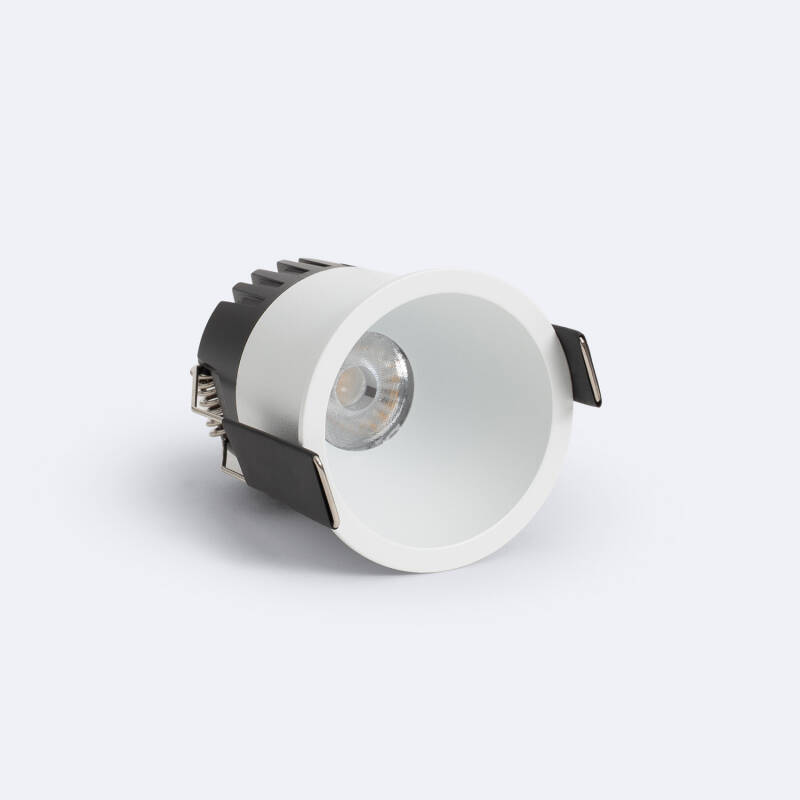

Image of Mini Deep LED Downlight 8W Ø52 mm Cut Out
  • 8 W

    Wattage

    8 W

  • 220-240V AC

    Voltage Range

    220-240V AC

  • 960 lm

    Lumens

    960 lm

  • Ø52 mm

    Cut Out Dimensions

    Ø52 mm

  • 59 mm

    Diameter

    59 mm

  • IP65

    IP Rating

    IP65

  • No

    Battery Operated

    No

  • 65 mm x Ø59 mm

    Dimensions

    65 mm x Ø59 mm

  • 65 mm

    Height

    65 mm

  • IK05

    IK Protection

    IK05

  • 120 lm/W

    Luminous Efficiency

    120 lm/W

  • 36º

    Beam Angle

    36º

Mini Deep LED Downlight 8W Ø52 mm Cut Out

Download technical datasheet

Ref. Ledkia: 168115

Colour Temperature Selectable (Warm - Cool) (2700K - 3200K - 4000K)

Colour Black

Pre-Order, estimated shipping from 01/11/2025

15,99 €

VAT included
Energetic efficiency

Pre-Order, estimated shipping from 01/11/2025

PRO CLUB badge

Are you a lighting professional or a company?

  • Great discounts off PVP
  • Extended Warranty
  • Exclusive Services

Buy now, pay later

Credit payment

    • 30 Day Return

      You can renounce to this product during the first 30 calendar days from receipt, provided that the product remains in perfect condition for use.


      Custom-made products and cut-to-size strips are excluded.


      Full conditions here: After-sales service.

    • 5-7 days Free Delivery

      If you place your order today before 18:00h, delivery within 5-7 days (working days).


      Shipping is free on purchases over 49,99 € (incl. VAT).


      Full conditions here: Delivery methods.

    • 100% secure payments

      payment method image 1

      payment method image 2

      At Ledkia we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation.


      More information: Payment methods.

    • Up to 5 year warranty

      Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.


      You will find the exact product warranty in the technical details.


      Full conditions here: After-sales service.

Dimensions

  • Cut Out DimensionsØ52 mm
  • Diameter59 mm
  • Height65 mm

Downloads

  • pdf file

    Technical Data Sheet PDF

Certificates and Stamps

CertificateCertificateCertificate

Technical Specifications

  • Technical Information

    • Measures in degrees how light spreads from the source. A wide angle covers more area, while a narrow one is ideal for highlighting details.
      Beam Angle36º
    • Quality, safety and compliance certifications that the product has obtained, such as CE, RoHS or UL, which guarantees that it meets industry standards and current regulations.
      CertificatesRoHS, CE, UKCA
    • ColourBlack
    • Measures how accurately a light source displays colours compared to natural light. A high CRI (close to 100) ensures accurate colour rendering.
      Colour Rendering Index90
    • Defines the light tone, from warm white to cool white, measured in Kelvin (K).
      Colour Temperature(2700K - 3200K - 4000K)
    • Current Intensity200 mA
    • DimmableNo
    • Driver Intensity200 mA
    • Voltage level that the driver uses to power the LEDs or electrical components of the product, ensuring their proper functioning.
      Driver Tension30 V-40 V
    • Electrical Insulation ClassII
    • Fitting MaterialAluminium
    • Frequency50-60 Hz
    • Estimated lifespan of the product before it loses performance. Based on optimal, non-continuous use, and measured in hours of operation under controlled conditions.
      Hours40.000 hours
    • Protection grade that the product offers against physical impacts. It is measured on a scale from IK00 to IK10, with IK10 being the highest level of resistance to impact and mechanical damage.
      IK ProtectionIK05
    • InstallationRecessed
    • The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
      IP RatingIP65
    • Light ColourSelectable (Warm - Cool)
    • Lumens960 lm
    • Ratio between light output (lumens) and energy consumed (watts). A high value indicates better efficiency, ideal for saving energy without compromising lighting.
      Luminous Efficiency120 lm/W
    • ShapeCircular
    • Voltage level required for the product to function correctly.
      Voltage Range220-240V AC
    • Wattage8 W

  • Product Data

    • Guarantee3 years
    • Product SeriesDeep

  • Product Information

    • LocationOutdoor, Indoor
    • Replaceable Light SourceNo
Big discounts on ceiling fans

Description

Introducing the Mini Deep LED Downlight 8W Ø52 mm Cut Out, a versatile lighting solution designed for both outdoor and indoor applications. With a powerful output of 960 lumens, this downlight ensures bright and efficient illumination, making it ideal for a variety of settings, from residential to commercial spaces. Crafted for optimal performance, this 8-watt downlight is energy-efficient, providing substantial brightness while keeping energy consumption low. The compact Ø52 mm cut-out size makes installation seamless, allowing for a clean and modern aesthetic in any environment. Whether you’re highlighting artwork in a gallery, providing ambient lighting in a living room, or enhancing visibility in outdoor areas, the Mini Deep LED Downlight delivers exceptional luminosity with a sleek design. Its robust construction ensures durability, making it suitable for both indoor and outdoor use. Upgrade your lighting with this stylish and efficient downlight, perfectly blending form and function to elevate any space.
