Range Advanced

Voltage Range 220-240V AC
Max Wattage 2000 W
IP Rating IP20
Width 50 mm

1 / 6

Voltage Range
220-240V AC
Max Wattage
2000 W
IP Rating
IP20
Width
50 mm
Height
50 mm
Fitting Material
PC

Colour Black

1,69 €

VAT included

In Stock, delivery in 15-20 days

Are you a lighting professional or a company?

Great discounts off PVP
Extended Warranty
Exclusive Services

See alternatives

Dimensions

Height50 mm
Width50 mm

Downloads

Technical Data Sheet PDF

Certificates and Stamps

Technical Specifications

Technical Information
- Temperature range in which the product can operate optimally, ensuring its performance without overheating or damage.
  Ambient Working Temperature-20 °C~+50 °C
- Quality, safety and compliance certifications that the product has obtained, such as CE, RoHS or UL, which guarantees that it meets industry standards and current regulations.
  CertificatesRoHS, CE, UKCA
- Specification of the color of the product or its light (in the case of products such as lamps or light bulbs), which may affect the aesthetics and functionality of its use.
  ColourBlack
- Composition of the product or its components, such as aluminum, steel, plastic or glass. The material influences the durability, design and thermal properties of the product.
  Fitting MaterialPC
- Range of cycles per second at which the product operates, measured in hertz (Hz). A standard value ensures compatibility with local electrical networks.
  Frequency50-60 Hz
- Information on how the product should be placed or mounted, such as instructions on whether it requires professional installation or is easy to do by the end user.
  InstallationRecessed
- The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
  IP RatingIP20
- Specification that describes the purpose or application of the product, such as lighting, air conditioning, or security, among others.
  LocationIndoor
- The maximum amount of power that the product can safely consume, indicated in watts. It is important to ensure proper installation and avoid overloading.
  Max Wattage2000 W
- Minimum and maximum voltage fluctuation that the product can withstand momentarily.
  Nominal Voltage100-240V AC
- Voltage level required for the product to function correctly.
  Voltage Range220-240V AC
Product Data
- Period during which the customer has the right to have their product repaired or replaced in the event of manufacturing defects or malfunctions under normal conditions of use. For more information, consult our After-sales page.
  Warranty3 years

Description

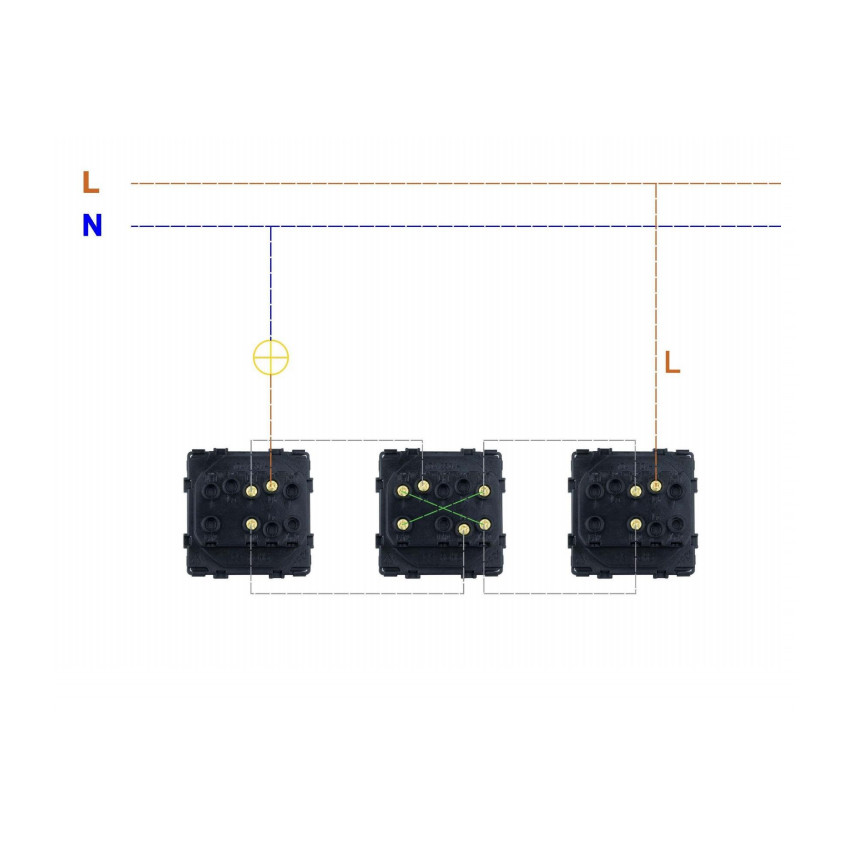

This switch is the ideal solution for providing a design touch to the switches in your home. It's available in two colours and has a high durability and resistance. This switch is known as a 3-Way switch and or a cross-switch. This cross-switch can be combined with the commuted switches in order to control one single light from all of the switches we want. These are widely used bedrooms as we can control the main light from both the light switch at the door and also the switches on both sides of the bed. They are placed between two commuted switches (check the attached installation diagram).

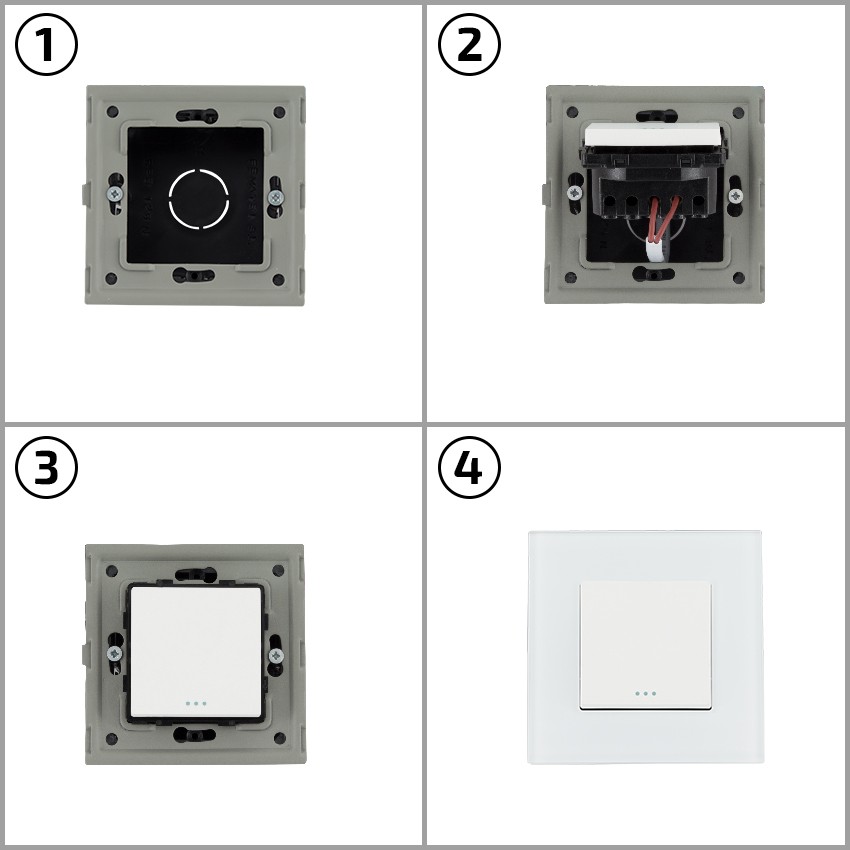

These switches are of the standard size, meaning they can be installed into any frame, although we recommend that they be installed in the glass frame that's available in the 'Accessories' section, for a more professional finish. The glass frame includes the elements required for installation in a universal back box.

*The customer's visual perception of sizes, colours, textures, and so on, of our products, can be affected by factors such as ambient lighting, screen calibration, viewing angle or the device of each user. The customer must bear in mind that any returns made for reasons not related to the functionality of the product will be at the customer's expense.

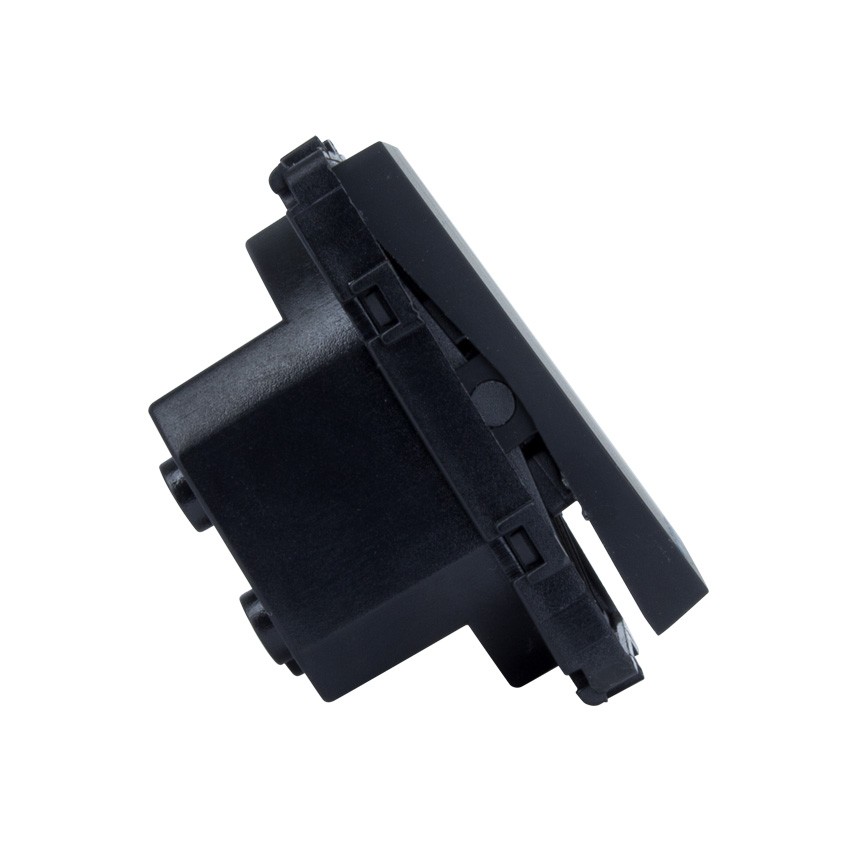

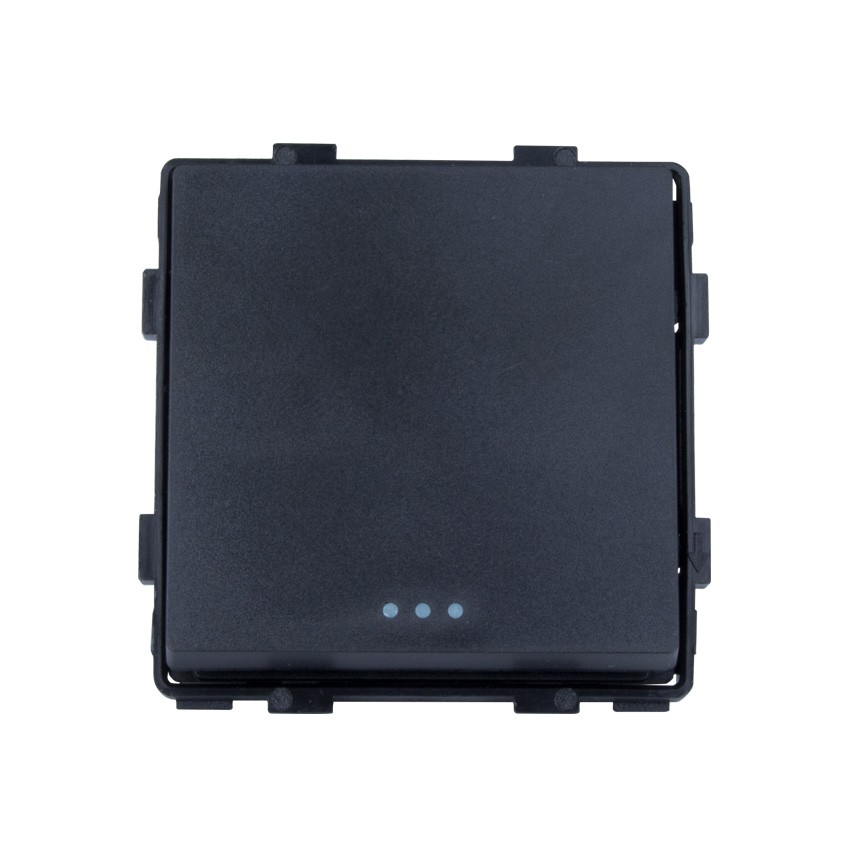

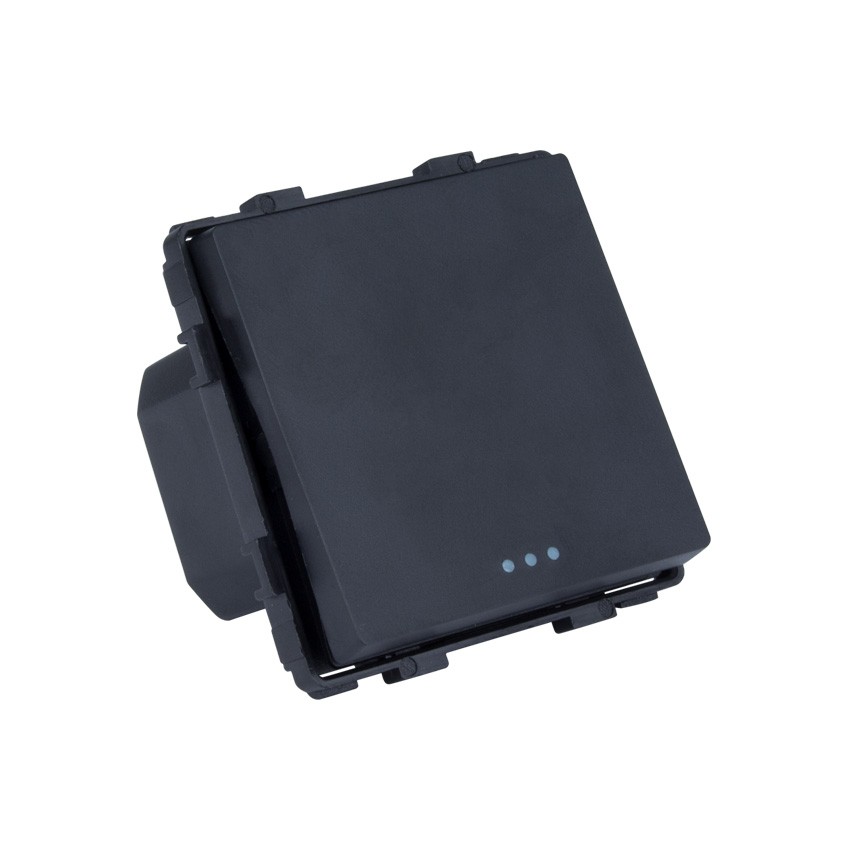

1-Gang 3-Way Switch Modern
