  • 220-240V AC
    Voltage Range 220-240V AC
  • Ø86 mm
    Cut Out Dimensions Ø86 mm
  • 95 mm
    Diameter 95 mm
  • IP20
    IP Rating IP20
Image of Recessed PIR & Twilight Motion Sensor with Automatic 0/10V Dimming SKYDANCE EH-R
    Image of Recessed PIR & Twilight Motion Sensor with Automatic 0/10V Dimming SKYDANCE EH-R
    Image of Recessed PIR & Twilight Motion Sensor with Automatic 0/10V Dimming SKYDANCE EH-R
    Image of Recessed PIR & Twilight Motion Sensor with Automatic 0/10V Dimming SKYDANCE EH-R
1 / 3
  • 220-240V AC

    Voltage Range

    220-240V AC

  • Ø86 mm

    Cut Out Dimensions

    Ø86 mm

  • 95 mm

    Diameter

    95 mm

  • IP20

    IP Rating

    IP20

  • 51 mm x Ø95 mm

    Dimensions

    51 mm x Ø95 mm

  • 51 mm

    Height

    51 mm

  • PC

    Fitting Material

    PC

  • SKYDANCE

    Brand

    SKYDANCE

  • 120 °

    Detection Range

    120 °

  • PIR

    Sensor

    PIR

  • 50-60 Hz

    Frequency

    50-60 Hz

  • -20 °C~+50 °C

    Ambient Working Temperature

    -20 °C~+50 °C

Skydance

Recessed PIR & Twilight Motion Sensor with Automatic 0/10V Dimming SKYDANCE EH-R

Skydance
Download technical datasheet

Ref. Ledkia: 174716

Manuf. ref.: 0089365

Colour White

    31,49 €

    VAT included

    In Stock, delivery in 15-20 days

    PRO CLUB badge

    Are you a lighting professional or a company?

    • Great discounts off PVP
    • Extended Warranty
    • Exclusive Services

    Buy now, pay later

    Credit payment

      • 30 calendar days to return

        You can renounce to this product during the first 30 calendar days from receipt, provided that the product remains in perfect condition for use.


        Custom-made products and cut-to-size strips are excluded.


        Full conditions here: After-Sales Service.

      • 5-7 days Delivery

        If you place your order today before 18:00h, delivery within 5-7 days (working days).


        Shipping is free on purchases over 49,99 € (incl. VAT).


        Full conditions here: Shipping methods.

      • 100% secure payments

        payment method image 1

        payment method image 2

        At Ledkia we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation.


        More information: Payment methods.

      • Warranty up to 5 years

        Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.


        You will find the exact product warranty in the technical details.


        Full conditions here: After-Sales Service.

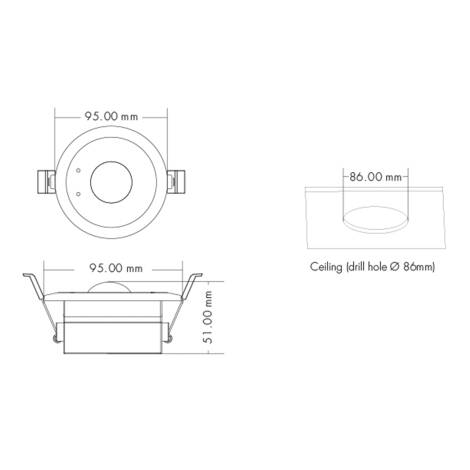

    Dimensions

    • Height51 mm
    • Diameter95 mm
    • Cut Out DimensionsØ86 mm
    Scheme image

    Downloads

    • pdf file

      PDF Datasheet 174716_354556 IE

    • pdf file

      Instruction Manual

    • pdf file

      DoC_174716_354556

    Certificates and Stamps

    CertificateCertificateCertificateCertificate

    Technical Specifications

    • Mechanical Features

      • Temperature range in which the product can operate optimally, ensuring its performance without overheating or damage.
        Ambient Working Temperature-20 °C~+50 °C
      • Detection distance range5 m
      • Defines the sensitivity area of a sensor in degrees. A wider angle will detect motion over a larger area.
        Detection Range120 °
      • InstallationRecessed
      • The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
        IP RatingIP20
      • LocationIndoor
      • SensorPIR
      • Sensor TypePIR

    • Electrical Features

      • Frequency50-60 Hz
      • Minimum and maximum voltage fluctuation that the product can withstand momentarily.
        Nominal Voltage100 V - 240 V
      • Sensitivity10 Lux~400 Lux
      • Voltage level required for the product to function correctly.
        Voltage Range220-240V AC

    • Product Information

      • BrandSKYDANCE
      • CertificatesCE, RoHS, EMC, RED
      • Guarantee3 years

    • Materials and Finishes

      • ColourWhite
      • Fitting MaterialPC

    • Driver Information

      • WifiNo

    Description

    Recessed 0-10V PIR & Twilight 120º Motion Sensor SKYDANCE EH-R is a discreet, energy‑optimised sensor for controlled lighting applications. The PIR type of sensor delivers reliable occupancy detection across a wide 120º detection angle, with a 5 metre detection distance for precise presence sensing. Integrated 0–10V dimming compatibility enables smooth, scalable light control and reduced energy consumption, while the built‑in twilight function prevents illumination during sufficient daylight. Designed for recessed installation, the SKYDANCE EH-R blends unobtrusively into ceilings for commercial and residential environments. Key features include PIR motion detection, 120º coverage and a 5 metre range, paired with 0–10V dimming and twilight sensing for intelligent, responsive lighting behaviour. Ideal for applications where subtle design and efficient automated lighting are priorities.
