Surface or Recessed Outdoor PIR & Twilight Motion Sensor 360º IP54

Download technical datasheet

Ref. Ledkia125616

Colour White

19,39 €

VAT included

In Stock, delivery in 15-20 days

PRO CLUB badge

Are you a lighting professional or a company?

  • Great discounts off PVP
  • Extended Warranty
  • Exclusive Services

Buy now, pay later

Credit payment
  • 30 Day Return

    You can renounce to this product during the first 30 calendar days from receipt, provided that the product remains in perfect condition for use.


    Custom-made products and cut-to-size strips are excluded.


    Full conditions here: After-sales service.

  • 5-7 days Free Delivery

    If you place your order today before 18:00h, delivery within 5-7 days (working days).


    Shipping is free on purchases over 49,99 € (incl. VAT).


    Full conditions here: Delivery methods.

  • 100% secure payments

    payment method image 1

    payment method image 2

    At Ledkia we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation.


    More information: Payment methods.

  • Up to 5 year warranty

    Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.


    You will find the exact product warranty in the technical details.


    Full conditions here: After-sales service.

See alternatives

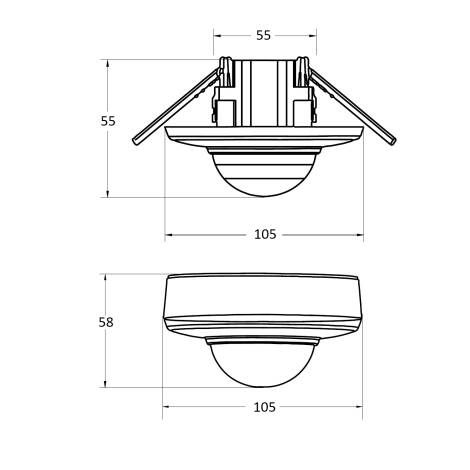

Dimensions

  • Diameter110 mm
  • Height60 mm
  • Weight111 g

Downloads

  • pdf file

    Technical Data Sheet PDF

  • pdf file

    MANUAL_125616

Certificates and Stamps

CertificateCertificate

Technical Specifications

  • Technical Information

    • Temperature range in which the product can operate optimally, ensuring its performance without overheating or damage.
      Ambient Working Temperature-20 °C~+40 °C
    • Quality, safety and compliance certifications that the product has obtained, such as CE, RoHS or UL, which guarantees that it meets industry standards and current regulations.
      CertificatesRoHS, CE, UKCA
    • ColourWhite
    • Defines the sensitivity area of a sensor in degrees. A wider angle will detect motion over a larger area.
      Detection Range360 °
    • Maximum range at which a sensor can detect motion.
      Detention Range Metres20 m
    • Fitting MaterialPC
    • Frequency50-60 Hz
    • InstallationRecessed, Surface
    • The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
      IP RatingIP54
    • Max Wattage1000 W
    • Sensitivity10 Lux~2000 Lux
    • SensorPIR
    • Sensor TypePIR
    • Voltage level required for the product to function correctly.
      Voltage Range220-240V AC
  • Product Data

    • Guarantee3 years
    • Product SeriesSenise
  • Product Information

    • LocationOutdoor, Indoor
Outdoor LED bollard

Description

The Surface or Recessed Outdoor PIR & Twilight Motion Sensor 360º IP54 is designed to automate the switching on and off of lighting based on movement and ambient light. It features high-sensitivity PIR technology with 360º coverage, making it ideal for large, open areas such as rooms, offices, bathrooms, classrooms, or common spaces where energy efficiency and automatic comfort are required.

Full Coverage for Open Spaces

Its optics are designed to provide balanced detection throughout its surroundings, with a full 360º circular coverage, making it the perfect choice for areas without central obstacles and for square or circular-shaped spaces. It effectively detects people’s presence and activates lighting only when necessary, optimising energy consumption and reducing wear on connected equipment.

Integrated Dusk Sensor

Includes a light sensor that allows adjustment of the ambient light level at which the detector activates the lighting. This makes it especially useful in areas with variable natural light, preventing unnecessary activation when there is already sufficient light in the environment.

Flexible Installation: Surface or Recessed

This sensor can be installed either surface-mounted or recessed, compatible with false ceilings, panels, or continuous ceilings. Its compact and discreet design facilitates aesthetic integration in all types of professional electrical installations, both in new constructions and renovations.

Common Applications

General coverage ceiling PIR sensors are used in offices, bathrooms, kitchens, classrooms, meeting rooms, wide corridors, entrances, and stairways. Its automatic activation improves user comfort, enhances security, and contributes to energy savings in public, commercial, and residential buildings.
