Square 9W UltraSlim LED Panel

Ref: 413 / PX-PBD-9S

Before

Price not available

Would you like us to call you?
FREE

Square 9W UltraSlim LED Panel

Ref: 413 / PX-PBD-9S

  • 9 W
  • 135x135 mm
  • 700 lm
  • 120º
  • IP20
  • 85-265V AC
  • 220-240V AC
  • 80
  • 50-60 Hz
  • 20x148x148 mm
  • 3 Years
  • 0.21 kg

Similar products

Description Square 9W UltraSlim LED Panel

The Square 9W UltraSlim LED Panel is widely used as a general lighting element in any type of space, whether in homes or businesses.

Characteristics of the Square 9W UltraSlim LED Panel

Its source incorporates SMD 2835 LEDs with an output of 80 lm/W. As it is a class II luminaire, it is directly connected to 220-240V AC and does not need to be grounded. It has a useful life span of 30,000 hours, which is ten times more than a conventional downlight.

Thanks to the aluminium heatsink it has, the Squate 9W UltraSlim LED Panel removes the heat it generates quickly, despite its small size. In this way, despite being an indoor lighting element, it works perfectly in a temperature range from -22º to 45ºC.

At our online lighting shop Ledkia we have a wide range of LED downlight plates so that you can choose the one that best suits your needs.

Characteristics Square 9W UltraSlim LED Panel

Power: 9 W
Voltage: 220-240V AC
Multi-Voltage: 85-265V AC
Frequency: 50-60 Hz
Driver Output: 54-75V DC // 300 mA
Protection Class: II
Light Source: OSRAM
Light Colour: Warm White, Daylight, Cool White
CRI: 80
Lumens: 700 lm
Energy Efficiency 2021 (UE-1369/2017): A
Energy Efficiency 2023 (UE-2019/2015): F
Beam Angle: 120º
Lens Type: Frost
Use: Indoor
IP Protection: IP20
IK Protection: IK05
Material: Aluminium
Installation: Recessed
Size: 20x148x148 mm
Cut-Out 135x135 mm

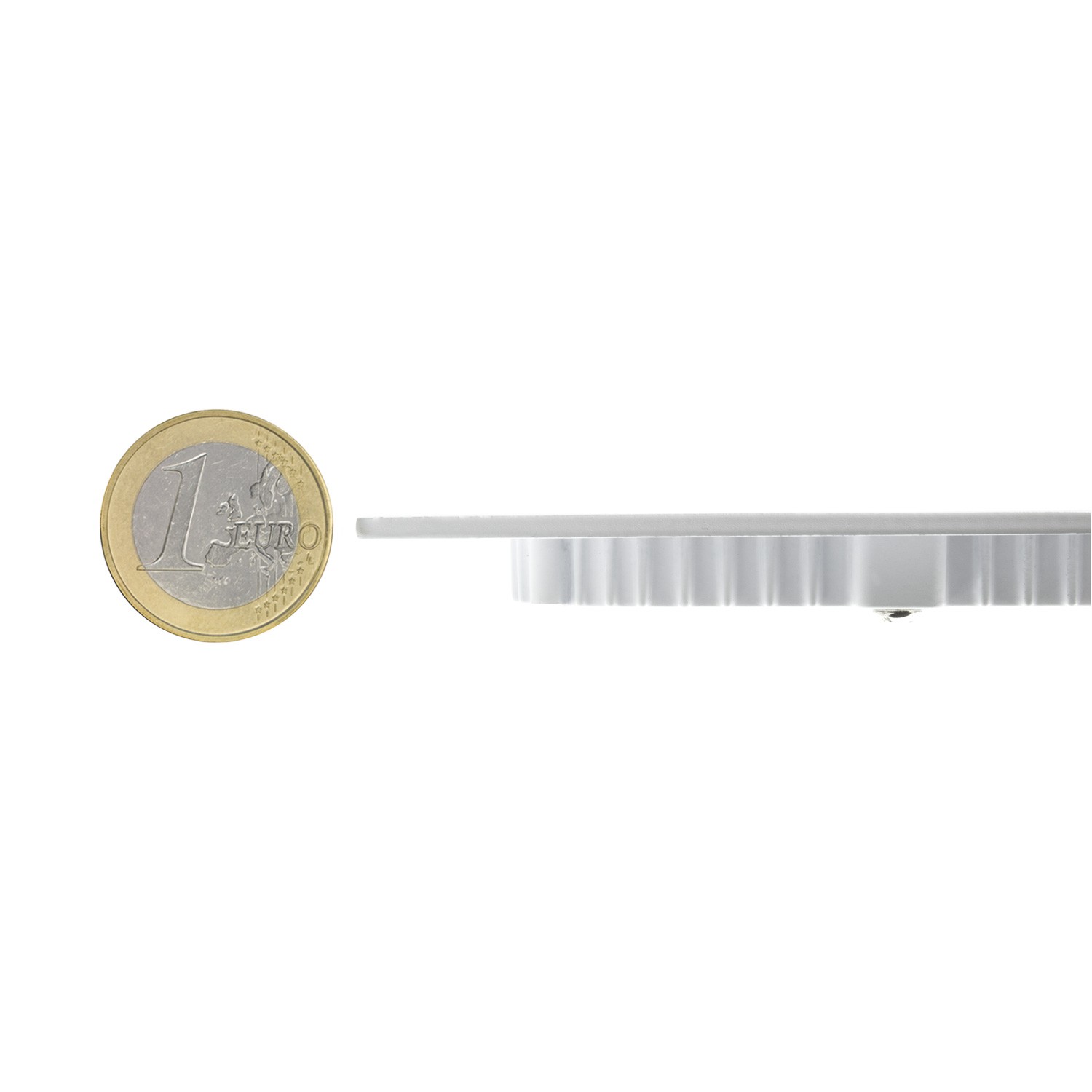

Height: 20 mm
Width: 148 mm
Length: 148 mm
Total Weight: 0.21 kg
Frame: White
Working Temperature: -22ºC ~ +45ºC

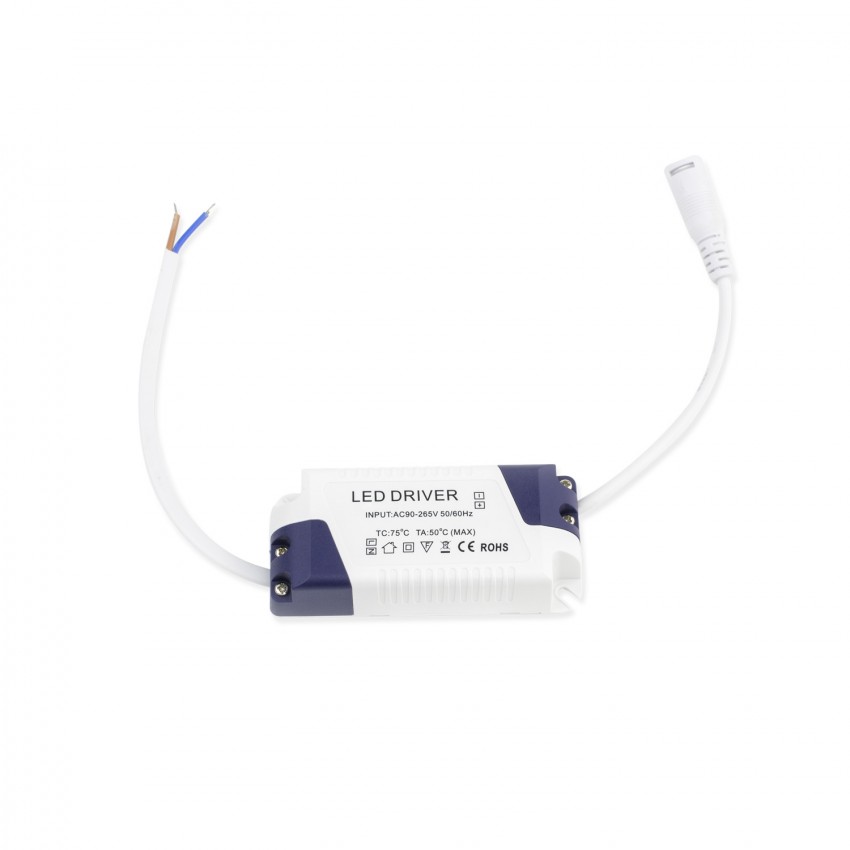

Includes: Driver
Life Span: 40,000 Hours
Warranty: 3 Years
Certifications: UKCA, CE & RoHS
