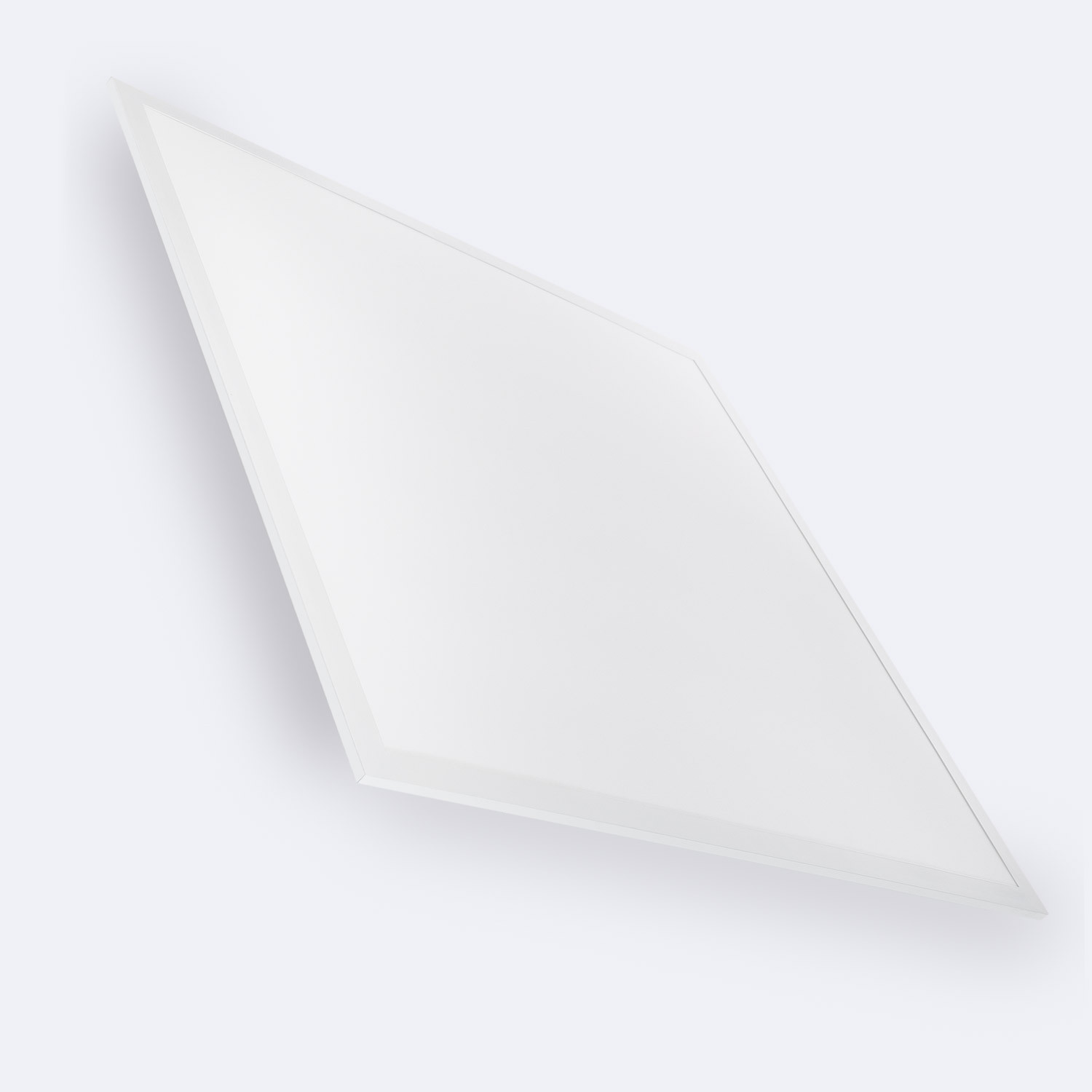

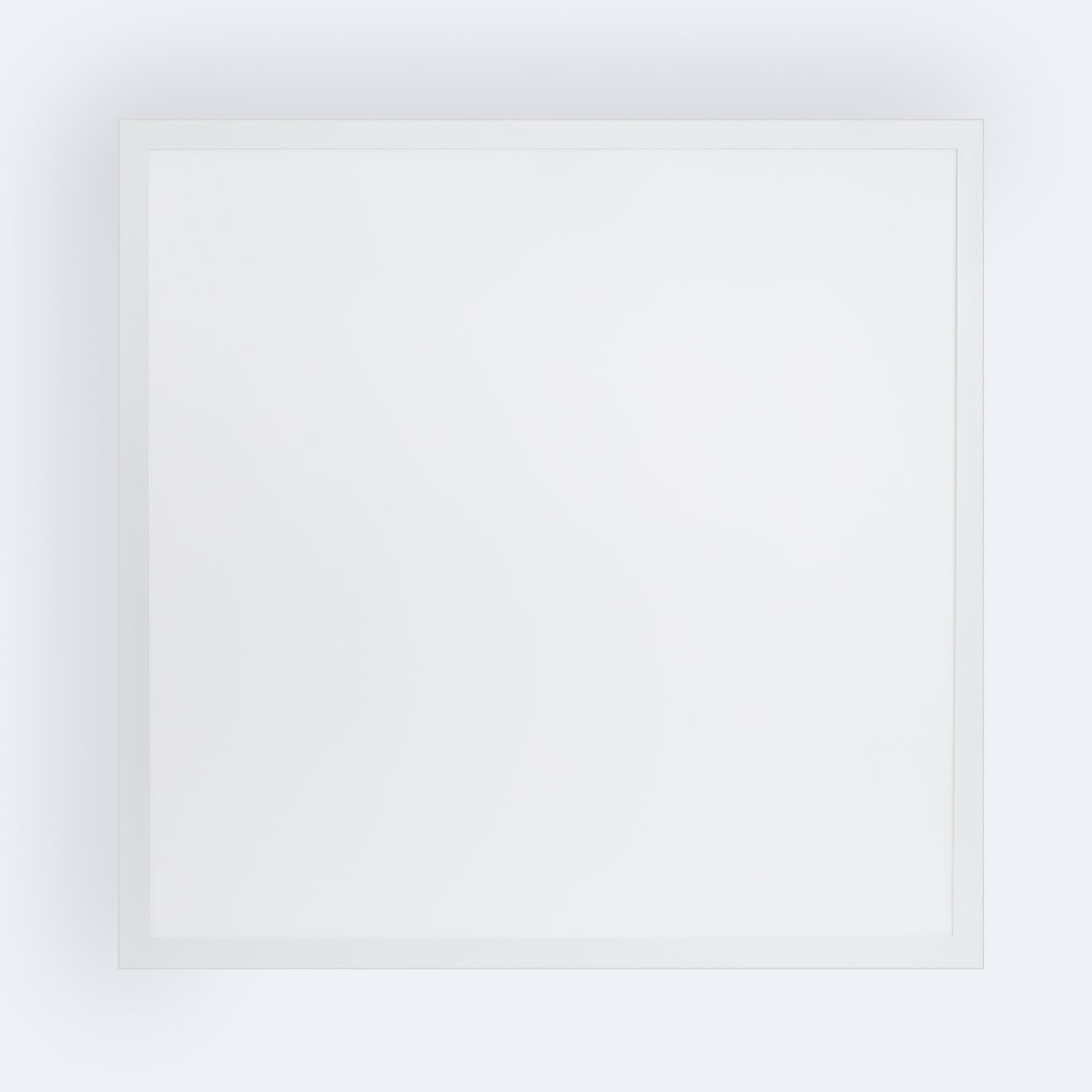

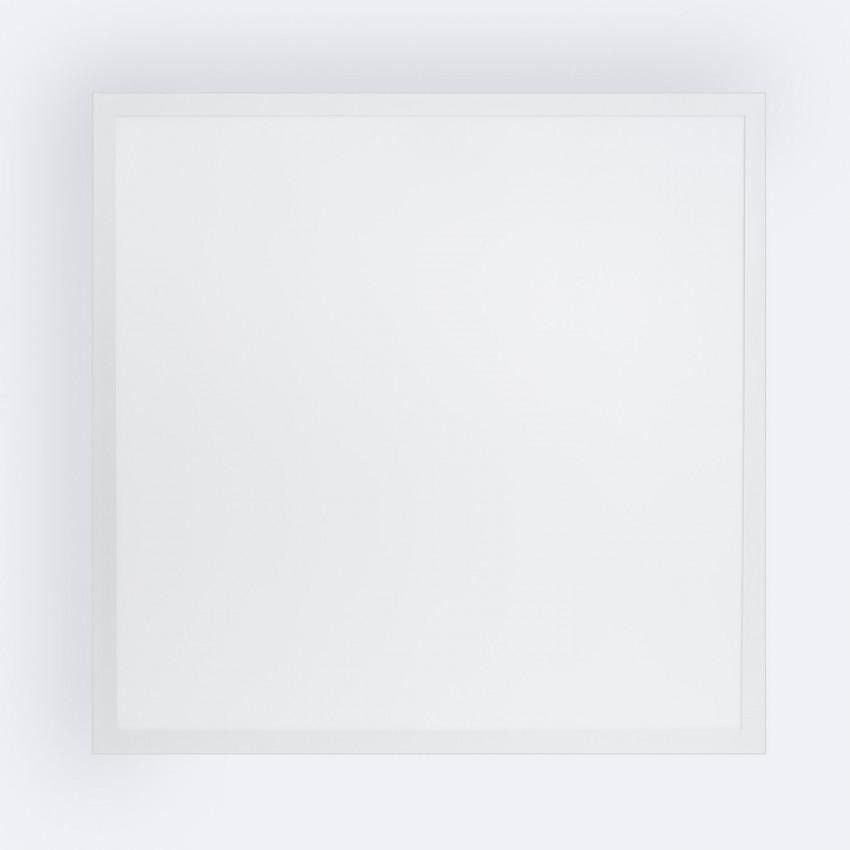

40W 60x60 cm 4000lm Dimmable LED Panel

Energetic efficiency
Download technical datasheet

Ref. Ledkia: 71238

Ref. Fab: PNL-RGL-6060-40W-GR19-BN-TRIAC

Choose Colour Temperature

Cool White 4000K - 4500K

Choose Driver

Dimmable TRIAC Flicker Free

In Stock, delivery in 15-20 days

Before 53,66 €

-27% (You save 14,43 € )

39,23 €

23% VAT included

In Stock, delivery in 15-20 days

Buy now, pay later

Credit payment

You can renounce to this product during the first 30 calendar days from receipt, provided that the product remains in perfect condition for use.


Custom-made products and cut-to-size strips are excluded.


Full conditions here: After-sales service.

If you place your order today before 18:00h, delivery within 5-7 days (working days).


Shipping is free on purchases over 49,99 € (incl. VAT).


Full conditions here: Delivery methods.

payment method image 1

payment method image 2

At Ledkia we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation.


More information: Payment methods.

Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.


You will find the exact product warranty in the technical details.


Full conditions here: After-sales service.

Don't forget the accessories 7

  • Product Y Suspension Kit for LED Panels

    Y Suspension Kit for LED Panels

    In Stock, delivery in 15-20 days

    3,45 €

    Product Suspension Kit for LED Panels

    Suspension Kit for LED Panels

    In Stock, delivery in 15-20 days

    3,34 €

    Product Recessed Frame for 60x60 cm LED Panel

    Recessed Frame for 60x60 cm LED Panel

    In Stock, delivery in 15-20 days

    1 options

    9,55 €

  • Product Universal 1-10V LED Dimmer

    Universal 1-10V LED Dimmer

    In Stock, delivery in 15-20 days

    1 options

    23,37 €

    Product Recessed Panel Kit

    Recessed Panel Kit

    In Stock, delivery in 15-20 days

    1 options

    1,62 €

    Product Surface Kit for a 60x60 cm LED Panel

    Surface Kit for a 60x60 cm LED Panel

    In Stock, delivery in 15-20 days

    1 options

    11,37 €

  • Product Emergency Driver with Battery  for LED Panels with Output 3W 10-50V DC

    Emergency Driver with Battery for LED Panels with Output 3W 10-50V DC

    In Stock, delivery in 15-20 days

    1 options

    63,01 €

Dimensions

  • Total Weight:1.35 Kg
  • Size:595x595x30 mm
  • Height:595 mm
  • Width:595 mm
  • Length:30 mm

Downloads

  • Technical Data Sheet PDF

  • CE Certificate Panel

  • ENEC Certificate Panel

  • TUV Certificate Panel

Certificates and Stamps

CertificateCertificate

Energy Efficiency

Efficiency energeticRegulation 2021
Efficiency energeticRegulation 2023

Technical Specifications

  • Power:40 W
  • Power Factor:0.90
  • Voltage:220-240V AC
  • Multi-Voltage:85-265V AC
  • Frequency:50-60 Hz
  • Output:33-40V DC // 1000 mA
  • Intensity Level:0.25 A
  • Protection Class:II
  • Dimmable:DALI, 1-10 V, TRIAC
  • Light Source:SMD2835
  • CRI:80
  • Lumens:4000 lm
  • Luminous Efficiency:100 lm/W
  • Energy Efficiency 2021 (UE-1369/2017):A+
  • Energy Efficiency 2023 (UE-2019/2015):F
  • Beam Angle: 120º
  • Lens Type:Frost
  • Use:Indoor
  • IP Protection:IP40
  • IK Protection:IK05
  • UGR (Glare Rating):UGR 19
  • Special:Low UGR
  • Flicker Free:YES
  • Photobiological Risk:RG0 (Exempt group)
  • Material:PC, Aluminium
  • Installation:False Ceiling
  • Size:595x595x30 mm
  • Height:595 mm
  • Width:595 mm
  • Length:30 mm
  • Total Weight:1.35 Kg
  • Frame:60x60 cm
  • Working Temperature:-20°C ~ +45°C
  • Driver:LIFUD
  • Life Span:50,000 Hours
  • Warranty:5 Years
  • Certifications:CE & RoHS, TÜV

Our advantages

  • Team of experts at your service

    Personal customer service

  • 24-hour express delivery

    Stock of more than 12,000 references

  • Warranty up to 5 years

    Our professionals guarantee you the highest quality and reliability

  • Best price guarantee

    Compared to the most outstanding websites in the industry

Description

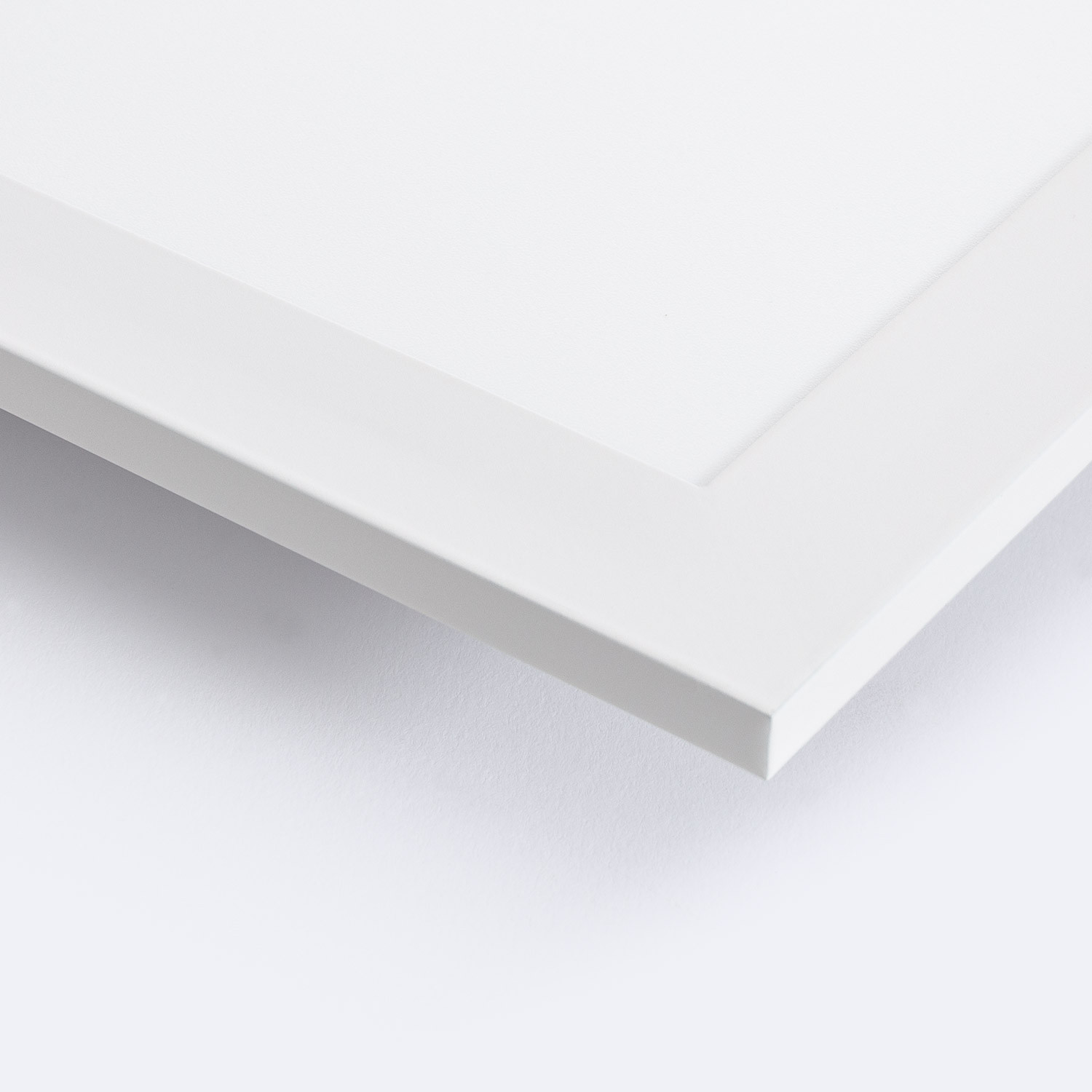

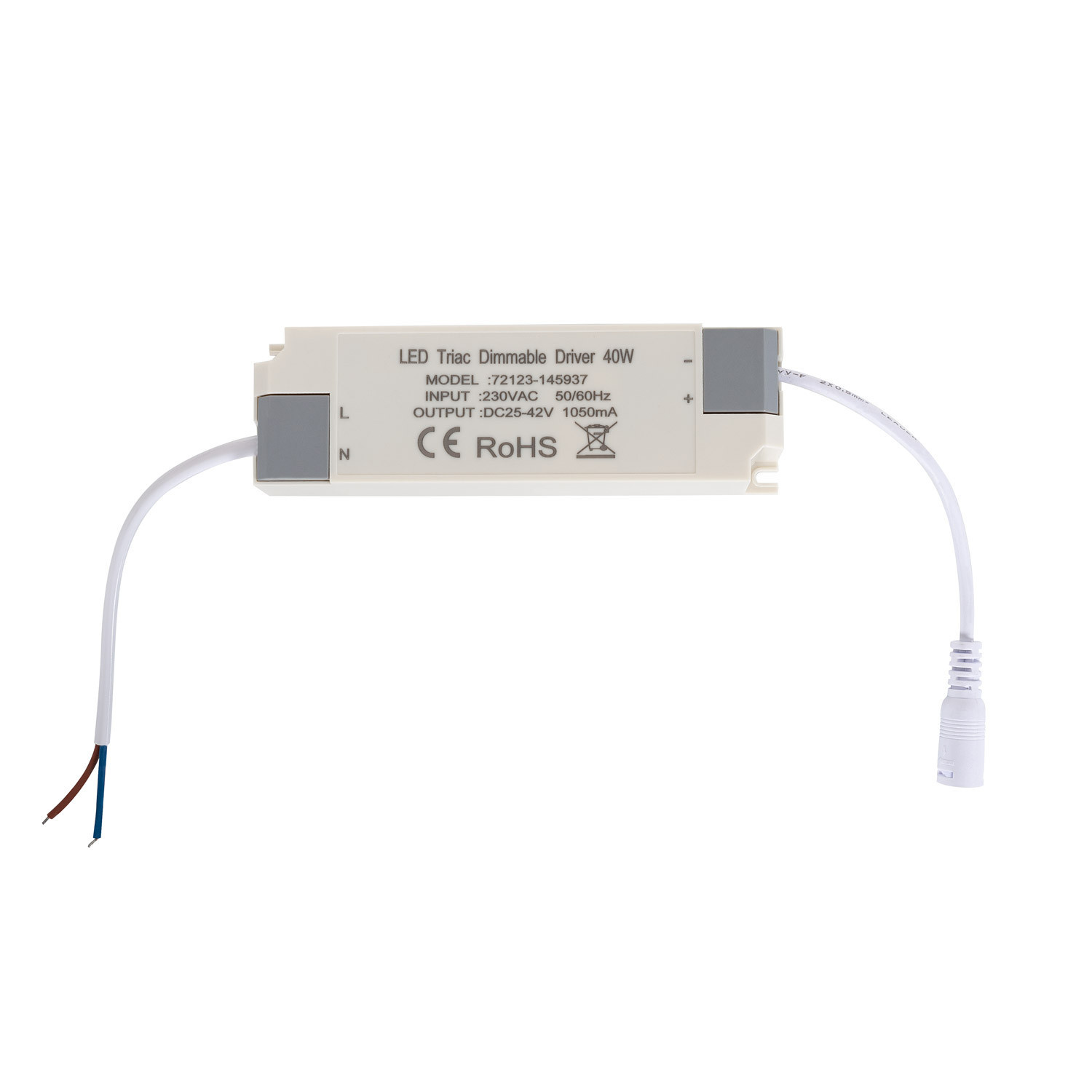

The 40W 60x60cm  4000lm Dimmable LED Panel  with white frame combines a very modern design with excellent light efficiency and quality. This panel is particularly suitable for offices and work areas due to its low glare factor. It includes an adjustable driver so that you can adapt the light intensity to each of the needs of each room.

The light source of the LED panel has a luminous intensity of 4000 lumens which is equivalent to the one that would be emitted by a conventional 80W luminaire. In this way, a very important saving is achieved compared to this type of traditional low consumption luminaires. It supports multi-voltage between 85V 265V AC and an ambient working temperature range of -20ºC to 45ºC.

Applications of the 40W 60x60cm  4000lm Dimmable LED Panel

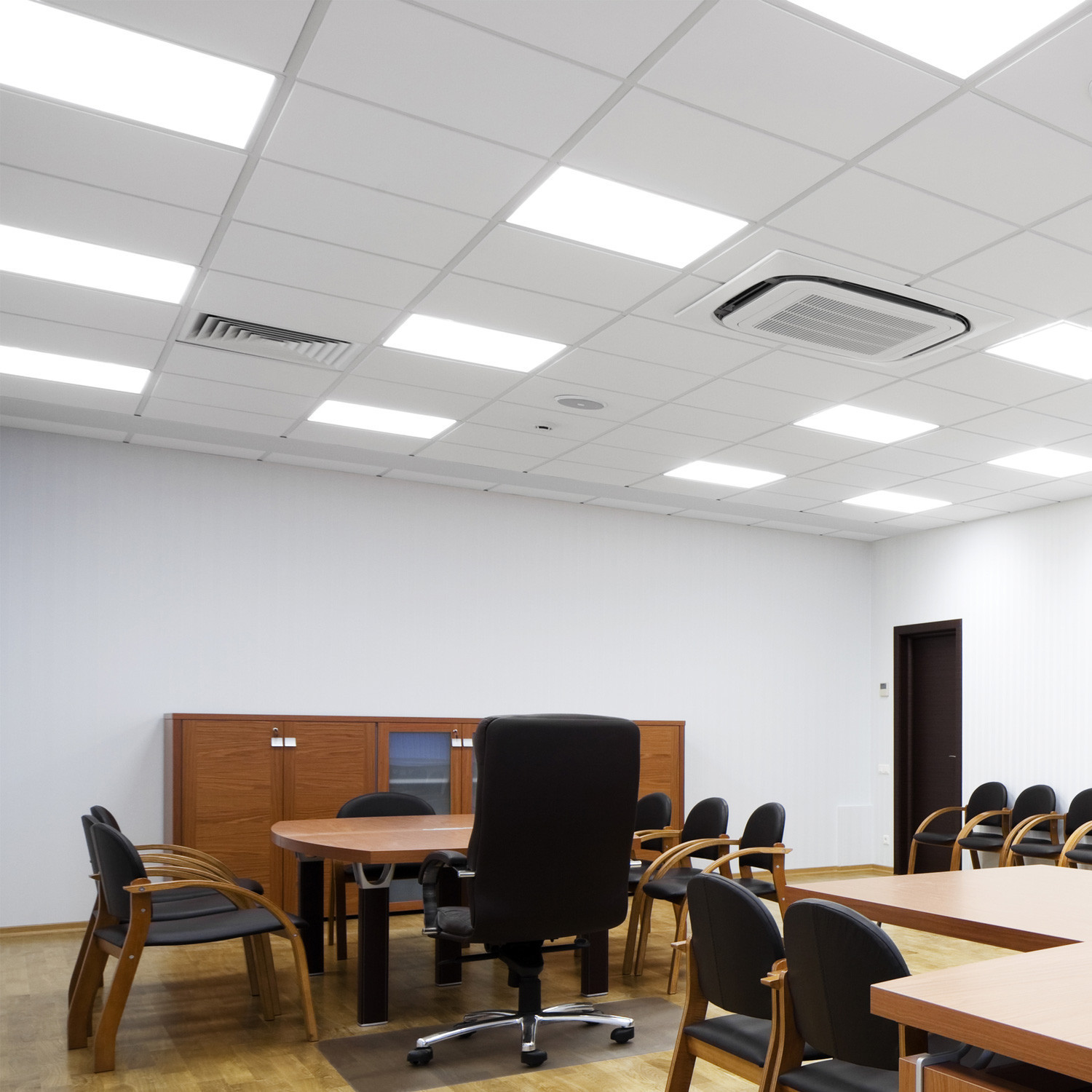

Suitable for lighting offices thanks to its low glare. The glare caused by lighting can have a negative influence on people, because a comfortable lighting environment is needed to help us in our tasks. A low UGR level increases the feeling of well-being of workers, which contributes to the level of productivity indirectly.  Low levels of glare are recommended in all places where people spend long periods of time exposed to artificial light, and are very important in offices, educational centres, work areas, etc.

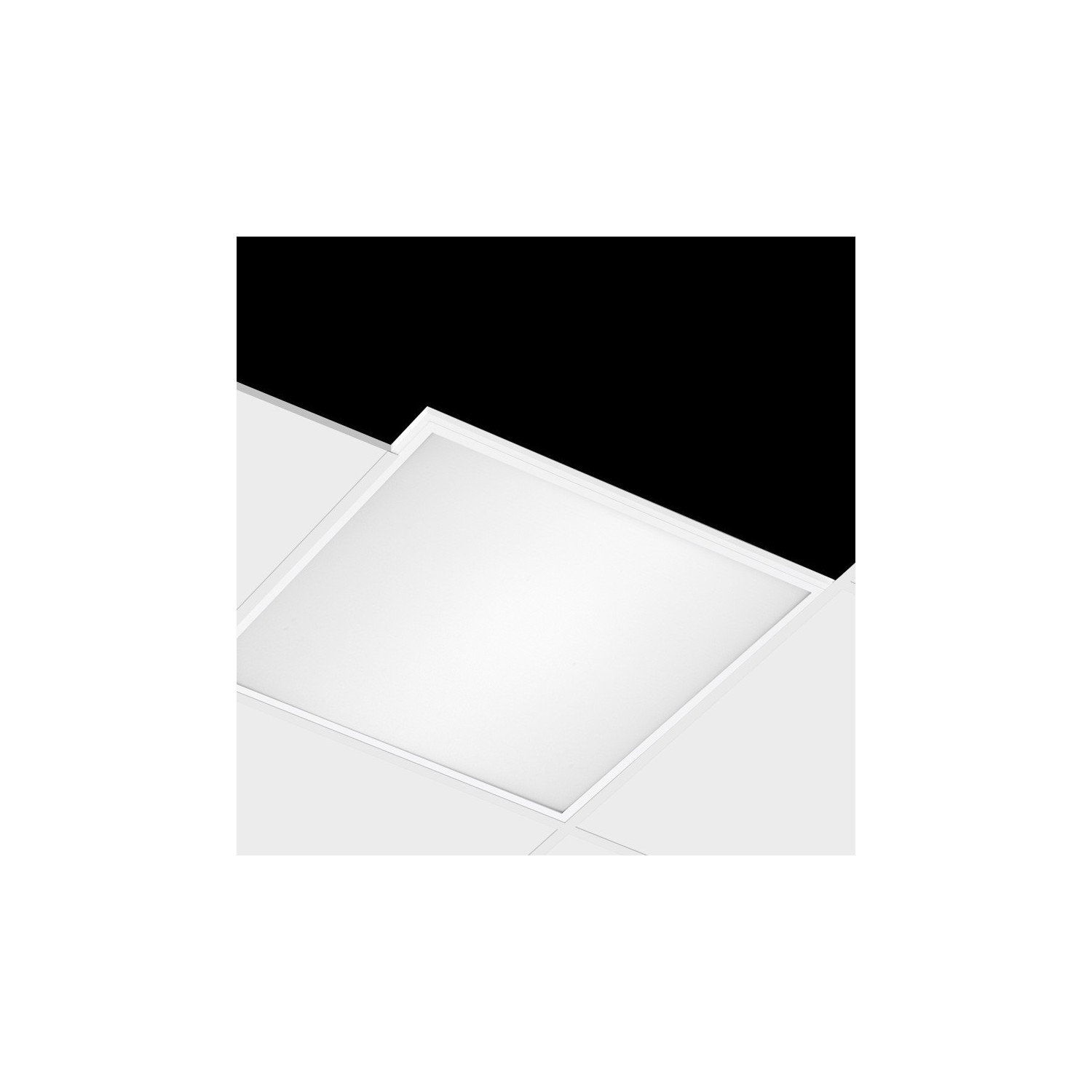

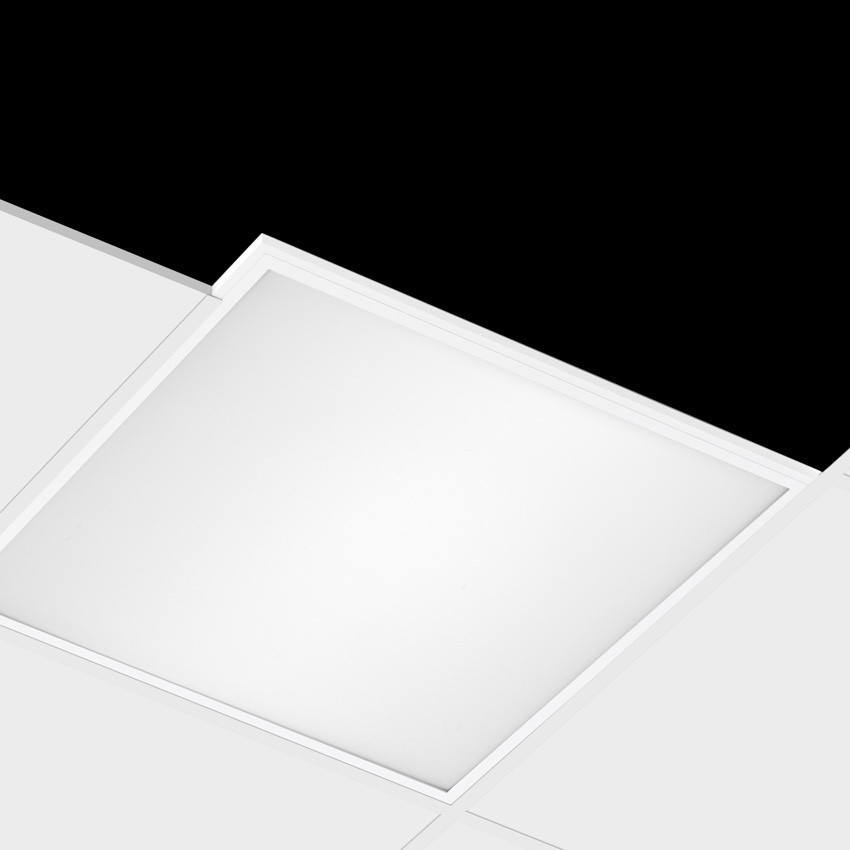

Specially designed for installation in technical ceilings, it is used above all in commercial or work spaces such as: hotels, restaurants, supermarkets, exhibition halls, museums or offices. It provides a high quality and very uniform light that improves working conditions. It also includes an opal diffuser that reduces glare.

* They are installed in a removable false ceiling. Other installation options are available in the accessories section.
