Wall Mounted Tactile Dimmer for CCT Selectable 12/24V DC RF LED Strips
Price
Before €
€
Price not available
FREE

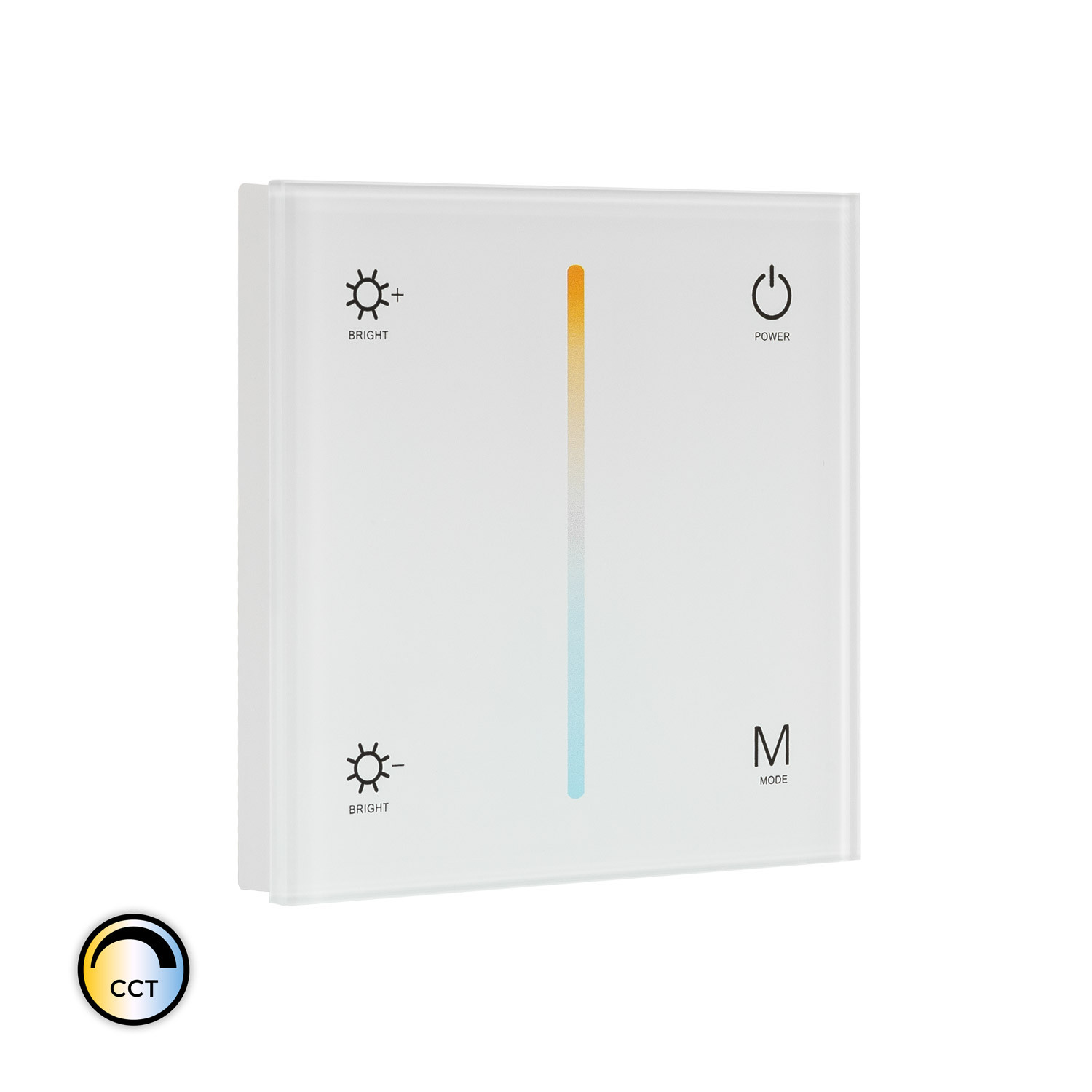

Wall Mounted Tactile Dimmer for CCT Selectable 12/24V DC RF LED Strips
Ref: 71046 / NTRRP-TCTL-RGLDR-2CCT
Similar products
-
12/24V RGB LED Strip Controller + IR High Power Remote Control with 24 Buttons
€
Price not available
Description Wall Mounted Tactile Dimmer for CCT Selectable 12/24V DC RF LED Strips
The Wall Mounted Tactile Dimmer for CCT Selectable 12/24V DC RF LED Strips compatible with 2.4G RF control is the ideal solution to automate, streamline and control 12/24V DC CCT LED strips as it allows the user to switch on, off and change the colour from the switch and remotely using its corresponding Wireless Controller.
Characteristics of the Wall Mounted Tactile Dimmer for CCT Selectable 12/24V DC RF LED Strips
The Wall Mounted Tactile Dimmer for CCT Selectable 12/24V DC RF LED Strips can be installed in the same universal box.
Using the front panel, you can turn the luminaire on and off, select the colour temperature, speed, mode as well as adjust the brightness.
This RF Tactile Dimmer Switch for CCT LED Strips is a capacitive switch that will be activated only with the contact of your finger without the need to apply any pressure.
To pair your Touch Controller to the devices you will need to turn the Controller off and on and then immediately press the off/on button (to control 1 zone) or the zone button 3 times (for multiple zones). If the light flashes 3 times it means it has been paired successfully.
To remove the pairing from the Touch Controller you must turn the Controller off and on and then immediately press the off/on button (to control 1 zone) or the zone button 5 times (for multiple zones). If the light flashes 5 times it means that all pairings have been successfully cleared.
Characteristics Wall Mounted Tactile Dimmer for CCT Selectable 12/24V DC RF LED Strips
| Power: | 144 W / 288 W |
| Voltage: | 12V DC, 24V DC |
| Intensity Level: | 12.5 A |
| Dimmable: | Touch |
| Light Colour: | CCT |
| Use: | Indoor |
| IP Protection: | IP20 |
| Material: | Glass, PC |
| Installation: | Recessed |
| Size: | 86x86 mm |
| Height: | 86 mm |
| Length: | 86 mm |
| Thickness: | 33 mm |
| Total Weight: | 0.18 kg |
| Working Temperature: | -30ºC ~ +55ºC |
| Connectivity: | RF |
| Warranty: | 3 Years |
| Certifications: | UKCA, CE & RoHS |
