    Battery Operated No

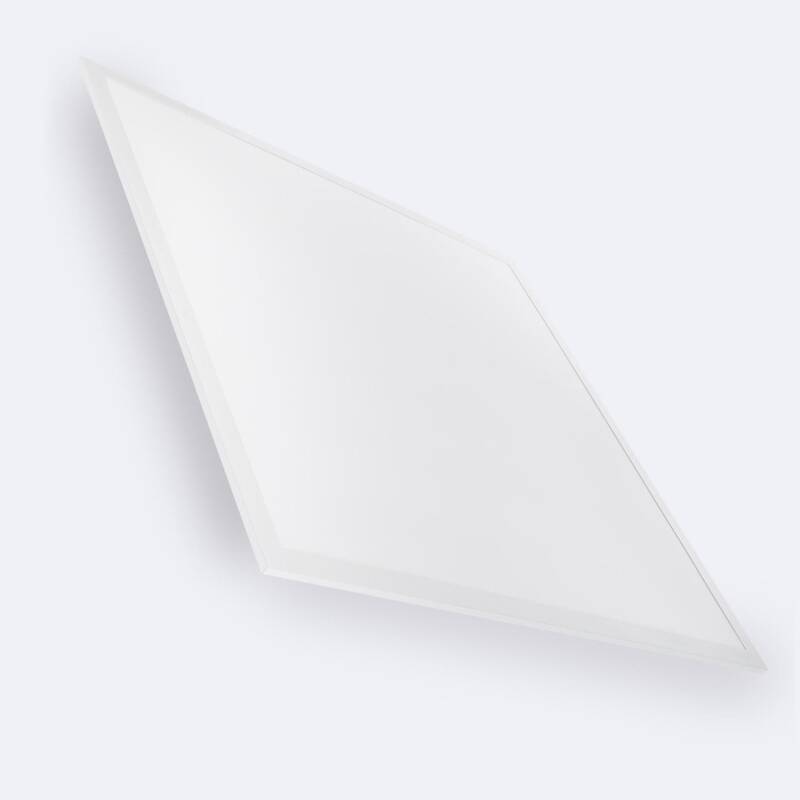

Image of LED Panel 600x600mm 100lm/W
    Image of LED Panel 600x600mm 100lm/W
    Image of LED Panel 600x600mm 100lm/W
    Image of LED Panel 600x600mm 100lm/W
    Image of LED Panel 600x600mm 100lm/W
    Image of LED Panel 600x600mm 100lm/W
    Image of LED Panel 600x600mm 100lm/W
    Image of LED Panel 600x600mm 100lm/W
    Image of LED Panel 600x600mm 100lm/W
1 / 8
  • No

    Battery Operated

    No

  • 42 W

    Wattage

    42 W

  • 220-240V AC

    Voltage Range

    220-240V AC

  • 4200 lm

    Lumens

    4200 lm

  • UGR 19

    Glare Factor

    UGR 19

  • IP20

    IP Rating

    IP20

  • 30 mm x 595 mm x 595 mm

    Dimensions

    30 mm x 595 mm x 595 mm

  • 595 mm

    Width

    595 mm

  • 30 mm

    Height

    30 mm

  • 60x60 cm

    Frame

    60x60 cm

  • IK05

    IK Protection

    IK05

  • 100 lm/W

    Luminous Efficiency

    100 lm/W

  • Aluminium, PC

    Fitting Material

    Aluminium, PC

LED Panel 600x600mm 100lm/W

Download technical datasheet

Ref. Ledkia: 167753

Colour Temperature Warm White 3000K

Type Of Driver LIFUD

Box Format Industrial

In Stock, delivery in 15-20 days

12,49 €

VAT included
Energetic efficiency

Minimum order 10 units

In Stock, delivery in 15-20 days

PRO CLUB badge

Are you a lighting professional or a company?

  • Great discounts off PVP
  • Extended Warranty
  • Exclusive Services

Buy now, pay later

Credit payment

  • 30 Day Return

    You can renounce to this product during the first 30 calendar days from receipt, provided that the product remains in perfect condition for use.


    Custom-made products and cut-to-size strips are excluded.


    Full conditions here: After-sales service.

  • 5-7 days Free Delivery

    If you place your order today before 18:00h, delivery within 5-7 days (working days).


    Shipping is free on purchases over 49,99 € (incl. VAT).


    Full conditions here: Delivery methods.

  • 100% secure payments

    payment method image 1

    payment method image 2

    At Ledkia we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation.


    More information: Payment methods.

  • Up to 5 year warranty

    Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.


    You will find the exact product warranty in the technical details.


    Full conditions here: After-sales service.

Dimensions

  • Depth595 mm
  • Height30 mm
  • Weight1.2 kg
  • Width595 mm

Downloads

  • pdf file

    Technical Data Sheet PDF

Certificates and Stamps

CertificateCertificateCertificateCertificate

Technical Specifications

  • Technical Information

    • Temperature range in which the product can operate optimally, ensuring its performance without overheating or damage.
      Ambient Working Temperature-20 °C~+45 °C
    • Quality, safety and compliance certifications that the product has obtained, such as CE, RoHS or UL, which guarantees that it meets industry standards and current regulations.
      CertificatesRoHS, CE, TÜV, ENEC
    • ColourWhite
    • Measures how accurately a light source displays colours compared to natural light. A high CRI (close to 100) ensures accurate colour rendering.
      Colour Rendering Index80
    • Defines the light tone, from warm white to cool white, measured in Kelvin (K).
      Colour Temperature3000K
    • Driver Intensity800 mA-1050 mA
    • Driver Power7.2 W-40 W
    • Voltage level that the driver uses to power the LEDs or electrical components of the product, ensuring their proper functioning.
      Driver Tension9 V-42 V
    • Electrical Insulation ClassII
    • Fitting MaterialAluminium, PC
    • Frame60x60 cm
    • Frequency50-60 Hz
    • Low-glare products offer more comfortable lighting, suitable for extended use.
      Glare FactorUGR 19
    • Estimated lifespan of the product before it loses performance. Based on optimal, non-continuous use, and measured in hours of operation under controlled conditions.
      Hours50.000 hours
    • Protection grade that the product offers against physical impacts. It is measured on a scale from IK00 to IK10, with IK10 being the highest level of resistance to impact and mechanical damage.
      IK ProtectionIK05
    • InstallationFalse ceiling
    • The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
      IP RatingIP20
    • Light ColourWarm White
    • Lumens4200 lm
    • Ratio between light output (lumens) and energy consumed (watts). A high value indicates better efficiency, ideal for saving energy without compromising lighting.
      Luminous Efficiency100 lm/W
    • Minimum and maximum voltage fluctuation that the product can withstand momentarily.
      Nominal Voltage85-265V AC
    • Voltage level required for the product to function correctly.
      Voltage Range220-240V AC
    • Wattage42 W

  • Product Information

    • Light SourceSMD2835
    • LocationIndoor
    • Type Of DriverLIFUD
    • Type Of LensOpaal

  • Product Data

    • Guarantee5 years
Outdoor LED bollard

Description

The LED Panel 600x600mm 100lm/W is an energy-efficient lighting solution designed to enhance any space with its modern aesthetic and superior performance. With a power output of 42 watts, this panel delivers an impressive luminosity of 4200 lumens, ensuring bright and effective illumination for offices, classrooms, and retail environments. Engineered with a glare factor of UGR 19, this LED panel provides comfortable light distribution, reducing eye strain while maintaining high visibility. Its sleek frame, measuring 60x60 cm, allows for seamless integration into standard ceiling grids, making installation quick and straightforward. The LED Panel 600x600mm not only promotes energy savings but also boasts a long lifespan, contributing to lower maintenance costs. This versatile lighting fixture is perfect for creating a productive atmosphere, whether in commercial or residential settings. With its combination of performance, efficiency, and elegant design, the LED Panel 600x600mm is an ideal choice for those seeking reliable and stylish lighting solutions.
