Power
18 W
Tension
220-240V AC
Brightness
1800 lm
Dazzle Factor
UGR 23
IP Protection
IP40
Wide
295 mm
High
30 mm
IK Protection
IK05
Luminous Efficiency
100 lm/W
Material
Pc, Aluminum
Color Rendering Index (CRI)
80

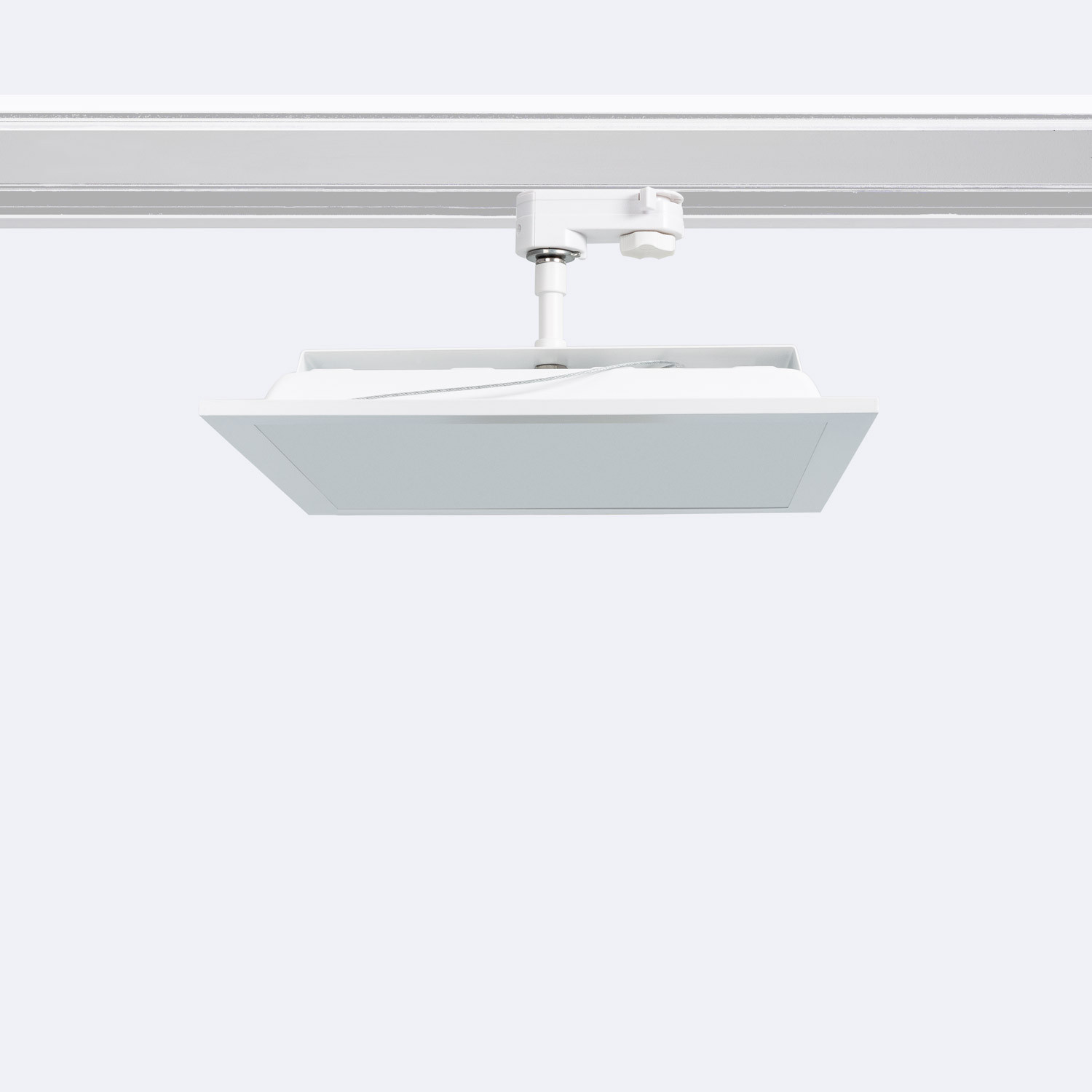

Panel LED 30x30cm 18W 1800lm LIFUD para Carril Trifásico
Ref. Ledkia: 97616
Ref. Fab: PNL-30x30-18W-CRTRF-BF
Choose Box Format
Choose Colour Temperature
Cool White 5500K - 6000K
In Stock, delivery in 15-20 days
Before 47,97 €
35,57 €
23% VAT includedIn Stock, delivery in 15-20 days
Are you a lighting professional or a company?
- Great discounts on RRP
- Extended warranty
- Exclusive services
Buy now, pay later
Credit payment30 Day Return
You can renounce to this product during the first 30 calendar days from receipt, provided that the product remains in perfect condition for use.
Custom-made products and cut-to-size strips are excluded.
Full conditions here: After-sales service.
5-7 days Free Delivery
If you place your order today before 18:00h, delivery within 5-7 days (working days).
Shipping is free on purchases over 49,99 € (incl. VAT).
Full conditions here: Delivery methods.
100% secure payments
At Ledkia we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation.
More information: Payment methods.
Up to 5 year warranty
Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.
You will find the exact product warranty in the technical details.
Full conditions here: After-sales service.
Don't forget the accessories 3
1m Aluminium Three Phase Track
In Stock, delivery in 15-20 days
2 options23,37 €
2m Aluminium Three Phase Track
In Stock, delivery in 15-20 days
2 options41,67 €
1 Metre Recessed Three-Circuit LED Track
In Stock, delivery in 15-20 days
1 options29,47 €
Dimensions
- High30 mm
- Wide295 mm
- Lenght295 mm
Downloads
Technical Data Sheet PDF
CE Certificate Panel
ENEC Certificate Panel
TUV Certificate Panel
Energy Efficiency
Regulation 2023Technical Specifications
- Light colorCool White
- Color Temperature5500K - 6000K
- Energy Efficiency 2023 (EU-2019/2015)F
- Revisión Control de CalidadNo
- Power18 W
- Tension220-240V AC
- Rated Voltage85-265V AC
- Frequency50-60 Hz
- Electric Insulation ClassII
- Light SourceSMD3014
- Color Rendering Index (CRI)80
- Brightness1800 lm
- Luminous Efficiency100 lm/W
- Type of LensFrost
- UseIndoor
- IP ProtectionIP40
- IK ProtectionIK05
- Dazzle FactorUGR 23
- MaterialPc, Aluminum
- InstallationTrack
- High30 mm
- Wide295 mm
- Lenght295 mm
- Room Temperature Work-20 °C~+45 °C
- Useful life50,000 Hours
- Maximum Driver Tension40 V
- Tensión Driver25 V-40 V
- Maximum Driver Intensity500 mA
- Minimum Driver Tension25 V
Our advantages
Team of experts at your service
Personal customer service
24-hour express delivery
Stock of more than 12,000 references
Warranty up to 5 years
Our professionals guarantee you the highest quality and reliability
Best price guarantee
Compared to the most outstanding websites in the industry
Description
The 18W 1800lm LIFUD LED Panel 30x30cm for Three Phase Track combines a very modern square design with excellent luminous efficiency and quality.
The light source of the LED panel has a luminosity of 1800 lumens which is equivalent to that emitted by a conventional 40W panel. In this way, a very significant saving is achieved compared to this type of traditional low-consumption luminaires. It supports multi-voltage between 85V 265V AC and an ambient temperature range of -22ºC to 45ºC.
Applications of the 18W 1800lm LIFUD LED Panel 30x30cm for Three Phase Track
Specially designed for installation on three-phase track, it is mainly used in commercial or work spaces such as: shops, hotels, restaurants, supermarkets, exhibition halls, museums or offices. It provides a high quality and very uniform light that improves working conditions. It also includes an opal diffuser that reduces glare.
Enjoy the best LED lighting with the most advanced and efficient products on the market, such as the LED Panel 30x30cm 18W 1800lm available from our online shop Ledkia.
