  • 12V DC, 24V DC, 36V DC, 48V DC
    Voltage Range 12V DC, 24V DC, 36V DC, 48V DC
  • 768 W
    Max Wattage 768 W
  • IP67
    IP Rating IP67
  • No
    Battery Operated No
Image of DMX512 & RDM 12/48V 4-Channel Decoder SKYDANCE D4-WPS IP67
    Image of DMX512 & RDM 12/48V 4-Channel Decoder SKYDANCE D4-WPS IP67
    Image of DMX512 & RDM 12/48V 4-Channel Decoder SKYDANCE D4-WPS IP67
1 / 2
  • 12V DC, 24V DC, 36V DC, 48V DC

    Voltage Range

    12V DC, 24V DC, 36V DC, 48V DC

  • 768 W

    Max Wattage

    768 W

  • IP67

    IP Rating

    IP67

  • No

    Battery Operated

    No

  • 34 mm x 57 mm x 153 mm

    Dimensions

    34 mm x 57 mm x 153 mm

  • 57 mm

    Width

    57 mm

  • 34 mm

    Height

    34 mm

  • SKYDANCE

    Brand

    SKYDANCE

  • 20.5 A

    Current Intensity

    20.5 A

Skydance

DMX512 & RDM 12/48V 4-Channel Decoder SKYDANCE D4-WPS IP67

Skydance
Download technical datasheet

Ref. Ledkia: 177632

Manuf. ref.: 0093137

Number Of Channels 4

55,99 €

VAT included

In Stock, delivery in 16-21 days

PRO CLUB badge

Are you a lighting professional or a company?

  • Great discounts off PVP
  • Extended Warranty
  • Exclusive Services

Buy now, pay later

Credit payment

    • 30 calendar days to return

      You can renounce to this product during the first 30 calendar days from receipt, provided that the product remains in perfect condition for use.


      Custom-made products and cut-to-size strips are excluded.


      Full conditions here: After-Sales Service.

    • 5-7 days Delivery

      If you place your order today before 18:00h, delivery within 5-7 days (working days).


      Shipping is free on purchases over 49,99 € (incl. VAT).


      Full conditions here: Shipping methods.

    • 100% secure payments

      payment method image 1

      payment method image 2

      At Ledkia we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation.


      More information: Payment methods.

    • Warranty up to 5 years

      Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.


      You will find the exact product warranty in the technical details.


      Full conditions here: After-Sales Service.

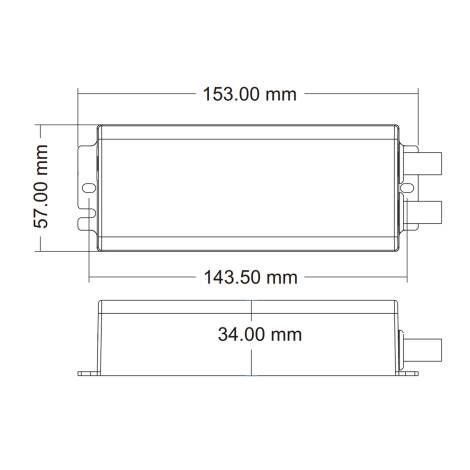

Dimensions

  • Depth153 mm
  • Height34 mm
  • Width57 mm
Scheme image

Downloads

  • pdf file

    Technical Data Sheet PDF

  • pdf file

    Instruction Manual

  • pdf file

    DoC_177632_359611

Certificates and Stamps

CertificateCertificate

Technical Specifications

  • Electrical Features

    • Current Intensity20.5 A
    • Max Wattage768 W
    • Voltage level required for the product to function correctly.
      Voltage Range12V DC, 24V DC, 36V DC, 48V DC

  • Materials and Finishes

    • ColourWhite

  • Mechanical Features

    • Temperature range in which the product can operate optimally, ensuring its performance without overheating or damage.
      Ambient Working Temperature-20 °C~+55 °C
    • The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
      IP RatingIP67
    • LocationOutdoor, Indoor

  • Product Information

    • BrandSKYDANCE
    • CertificatesCE, RoHS
    • Guarantee3 years

  • Driver Information

    • WifiNo

Description

The SKYDANCE D4-WPS DMX512 & RDM Decoder is a compact 4-channel controller for RGB and RGBW LED installations. Supporting DMX512 and RDM protocols, it allows addressable, two-way communication and remote configuration while accepting a wide 12–48V DC input range for versatile power setups. IP67-rated housing provides robust weatherproofing for outdoor and harsh-environment use. Designed for precise channel control, the unit delivers accurate colour mixing and consistent dimming across RGB and RGBW fixtures. Ideal for architectural lighting, signage and stage systems, the SKYDANCE D4-WPS combines protocol compatibility, flexible voltage support and durable ingress protection in a single decoder solution. SEO keywords: DMX512 decoder, RDM decoder, RGB controller, RGBW controller, IP67, 12–48V DC.
