Range Expert
  • 100 W
    Wattage 100 W
  • 220-240V AC
    Voltage Range 220-240V AC
  • 20000 lm
    Lumen 20000 lm
  • 300 mm
    Diameter 300 mm

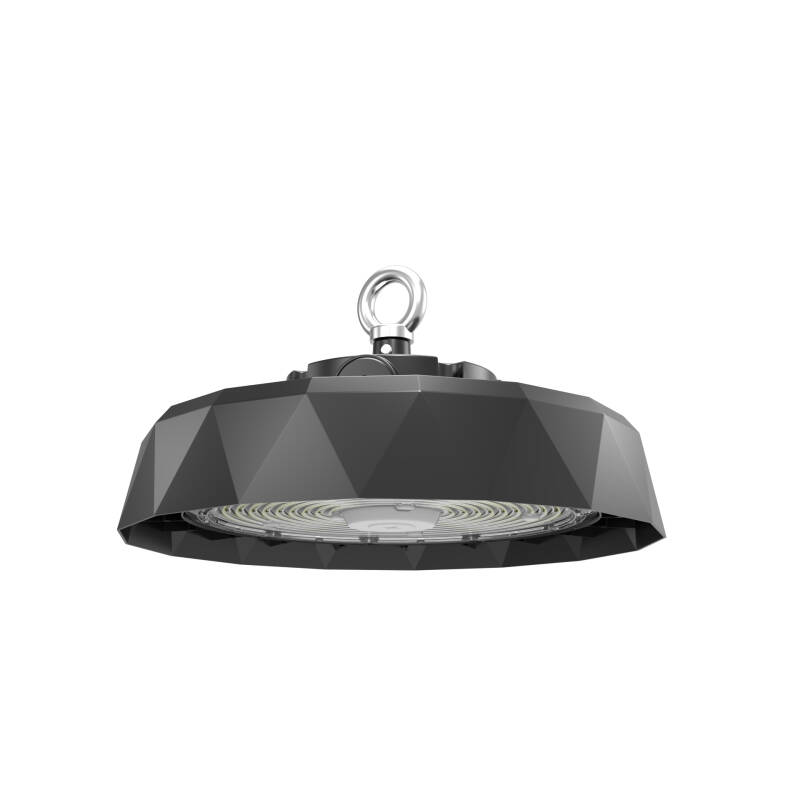

Image of UFO DALI/Push Dimmable LED High Bay HBM Evo LUMILEDS 200lm/W SOSEN
    Image of UFO DALI/Push Dimmable LED High Bay HBM Evo LUMILEDS 200lm/W SOSEN
    Image of UFO DALI/Push Dimmable LED High Bay HBM Evo LUMILEDS 200lm/W SOSEN
    Image of UFO DALI/Push Dimmable LED High Bay HBM Evo LUMILEDS 200lm/W SOSEN
    Image of UFO DALI/Push Dimmable LED High Bay HBM Evo LUMILEDS 200lm/W SOSEN
    Image of UFO DALI/Push Dimmable LED High Bay HBM Evo LUMILEDS 200lm/W SOSEN
1 / 5
  • 100 W

    Wattage

    100 W

  • 220-240V AC

    Voltage Range

    220-240V AC

  • 20000 lm

    Lumen

    20000 lm

  • 300 mm

    Diameter

    300 mm

  • 320

    Number of LEDs

    320

  • DALI, Push button

    Type Of Dimming

    DALI, Push button

  • 0.95

    Power Factor

    0.95

  • IP65

    IP Rating

    IP65

  • No

    Battery Operated

    No

  • 148 mm x Ø300 mm

    Dimensions

    148 mm x Ø300 mm

  • IK08

    IK Protection

    IK08

  • 200 lm/W

    Luminous Efficiency

    200 lm/W

  • Aluminium

    Fitting Material

    Aluminium

  • 80

    Colour Rendering Index

    80

  • Yes

    Dimmable

    Yes

  • -30 °C~+45 °C

    Working Temperature

    -30 °C~+45 °C

UFO DALI/Push Dimmable LED High Bay HBM Evo LUMILEDS 200lm/W SOSEN

Download technical datasheet

Ref. Ledkia: 177557

Wattage 100 W

Colour Temperature Daylight 5000K

Optic 90º

In Stock, delivery in 16-21 days

78,99 €

VAT included
Energetic efficiency

In Stock, delivery in 16-21 days

Not Included Remote

PRO CLUB badge

Are you a lighting professional or a company?

  • Great discounts off PVP
  • Extended Warranty
  • Exclusive Services

Buy now, pay later

Credit payment

    • 30 calendar days to return

      You can renounce to this product during the first 30 calendar days from receipt, provided that the product remains in perfect condition for use.


      Custom-made products and cut-to-size strips are excluded.


      Full conditions here: After-Sales Service.

    • 5-7 days Delivery

      If you place your order today before 18:00h, delivery within 5-7 days (working days).


      Shipping is free on purchases over 49,99 € (incl. VAT).


      Full conditions here: Shipping methods.

    • 100% secure payments

      payment method image 1

      payment method image 2

      At Ledkia we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation.


      More information: Payment methods.

    • Warranty up to 5 years

      Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.


      You will find the exact product warranty in the technical details.


      Full conditions here: After-Sales Service.

Dimensions

  • Weight1.3 kg
  • Diameter300 mm

Downloads

  • pdf file

    Technical Data Sheet PDF

  • pdf file

    DoC_177557_359442

Certificates and Stamps

CertificateCertificateCertificateCertificate

Technical Specifications

  • Electrical Features

    • Electrical Insulation ClassI
    • Frequency50-60 Hz
    • Light SourceLUMILEDS SMD2835
    • Minimum and maximum voltage fluctuation that the product can withstand momentarily.
      Nominal Voltage120 V - 277 V
    • Type Of DimmingDALI, Push button
    • Voltage level required for the product to function correctly.
      Voltage Range220-240V AC
    • Wattage100 W

  • Mechanical Features

    • Temperature range in which the product can operate optimally, ensuring its performance without overheating or damage.
      Ambient Working Temperature-20 °C~+50 °C
    • Protection grade that the product offers against physical impacts. It is measured on a scale from IK00 to IK10, with IK10 being the highest level of resistance to impact and mechanical damage.
      IK ProtectionIK08
    • The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
      IP RatingIP65
    • LocationOutdoor
    • Type of lens that determines the distribution and quality of the light. It influences the illumination angle and light efficiency.
      Optic90º
    • Internal temperature range in which the product can operate efficiently and safely. It is important to ensure its reliability under different usage conditions.
      Working Temperature-30 °C~+45 °C

  • Product Information

    • CertificatesCE, RoHS, UKCA, ERP
    • Guarantee7 years
    • Product SeriesHBM

  • Materials and Finishes

    • ColourBlack
    • Fitting MaterialAluminium
    • Not IncludedRemote

  • LED Features

    • Measures how accurately a light source displays colours compared to natural light. A high CRI (close to 100) ensures accurate colour rendering.
      Colour Rendering Index80
    • Defines the light tone, from warm white to cool white, measured in Kelvin (K).
      Colour Temperature5000K
    • Estimated lifespan of the product before it loses performance. Based on optimal, non-continuous use, and measured in hours of operation under controlled conditions.
      Hours100.000 hours
    • Light ColourDaylight
    • Lumen20000 lm
    • Ratio between light output (lumens) and energy consumed (watts). A high value indicates better efficiency, ideal for saving energy without compromising lighting.
      Luminous Efficiency200 lm/W
    • Number of LEDs320
    • Power Factor0.95
    • Standard colour deviation (MacAdam)SDCM ≤ 7

  • Driver Information

    • Driver BrandSOSEN
    • Driver Intensity400 mA - 600 mA
    • Driver Power120 W
    • Voltage level that the driver uses to power the LEDs or electrical components of the product, ensuring their proper functioning.
      Driver Tension180 V-260 V
    • Type Of DriverDALI
    • WifiNo

Description

The UFO DALI/Push Dimmable LED High Bay HBM Evo from the HBM series is a high bay industrial luminaire designed for demanding outdoor environments. It features a luminous efficacy of 200 lm/W, integrates a SOSEN driver with DALI and Push dimming control, and is built with robust aluminium housing for enhanced durability.

General information about UFO DALI/Push Dimmable LED High Bay HBM Evo LUMILEDS 200lm/W SOSEN

This high bay fixture incorporates a LUMILEDS SMD2835 light source delivering high luminous performance suitable for large spaces. Its aluminium construction ensures mechanical strength and effective heat dissipation, complemented by an IK08 impact protection rating and IP65 ingress protection, making it resistant to dust and water jets. The integrated SOSEN driver supports both DALI and Push dimming, allowing precise light intensity control. The product operates within a temperature range of -20 °C to +50 °C and features a power factor of 0,95, ensuring efficient electrical performance. Its electrical insulation class I guarantees safety in professional installations.

Use and applications

This high bay luminaire is designed for outdoor installation, making it suitable for industrial and commercial sectors requiring reliable and efficient lighting. Its robust aluminium housing and IP65 protection allow installation in outdoor environments exposed to dust and moisture, such as loading docks or exterior warehouse areas. The IK08 rating supports installations where mechanical impact resistance is necessary, ensuring durability in demanding scenarios.

Thanks to the SOSEN driver with DALI and Push dimming, it adapts to varying lighting needs and control systems, facilitating integration in professional projects. The operating temperature range from -20 °C to +50 °C allows deployment in diverse climates. This luminaire provides a solid solution for projects where efficiency, durability, and controllability are critical, supported by a luminous efficacy of 200 lm/W and a power factor of 0,95.

Key benefits

  • High luminous efficiency thanks to LUMILEDS SMD2835 technology, ensuring effective light output.
  • Robust mechanical protection with aluminium housing and IK08 rating, providing resistance to impacts.
  • IP65-rated enclosure guarantees protection against dust ingress and water jets for outdoor use.
  • Advanced dimming control via SOSEN driver compatible with DALI and Push systems for flexible lighting management.
  • Wide operating temperature range supports reliable performance in varied climatic conditions.

Highlighted specifications

Power factor: 0,95; Colour rendering index (CRI): 80; Electrical insulation class: I; Ambient working temperature: -20 °C to +50 °C.

Installation and maintenance

Installation must follow the specified mounting system indicated for high bay luminaires. The product requires connection to a 220–240 V AC supply and is compatible with DALI and Push dimming controls for flexible operation. Maintenance should ensure the luminaire remains clean and free of debris to preserve IP65 protection. Disconnect the power supply before any intervention. The aluminium housing facilitates heat dissipation, contributing to the longevity and stable operation of the lighting system.


Specialized lighting distribution in Ireland. If you are looking to buy UFO DALI/Push Dimmable LED High Bay HBM Evo LUMILEDS 200lm/W SOSEN with a professional warranty, it is a leading choice for durability and efficiency. Estimated shipping in 5 to 6 days (subject to stock availability). Check price and availability here.
