Dimensions

Weight1.3 kg
Height180 mm
Diameter248 mm

Downloads

PDF Datasheet 177512_359087 IE
DoC_177512_359087

Certificates and Stamps

Technical Specifications

Electrical Features
- Electrical Insulation ClassI
- Frequency50-60 Hz
- Light SourceLUMILEDS SMD2835
- Minimum and maximum voltage fluctuation that the product can withstand momentarily.
  Nominal Voltage220 V - 240 V
- Product's ability to withstand voltage spikes or electrical overloads, protecting internal components from potential damage due to current fluctuations.
  Overvoltage Protection6 kV
- Remote ControlNo
- Voltage level required for the product to function correctly.
  Voltage Range220-240V AC
- Wattage100 W
Mechanical Features
- Temperature range in which the product can operate optimally, ensuring its performance without overheating or damage.
  Ambient Working Temperature-40 °C~+50 °C
- Ability to move or rotate the spotlight to direct the light as desired.
  DirectionalNo
- Protection grade that the product offers against physical impacts. It is measured on a scale from IK00 to IK10, with IK10 being the highest level of resistance to impact and mechanical damage.
  IK ProtectionIK08
- InstallationPendant
- The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
  IP RatingIP65
- LocationOutdoor
- Type of lens that determines the distribution and quality of the light. It influences the illumination angle and light efficiency.
  Optic90º
- Sensor TypeWithout sensor
Product Information
- CertificatesCE, RoHS, CB, UKCA, ERP
- Guarantee5 years
- Product SeriesHBD
Materials and Finishes
- ColourBlack
- Fitting MaterialAluminium
- IncludesDriver LIFUD
- Not IncludedRemote
LED Features
- Brightness range17000 lm - 12000 lm - 9000 lm
- Measures how accurately a light source displays colours compared to natural light. A high CRI (close to 100) ensures accurate colour rendering.
  Colour Rendering Index80
- Defines the light tone, from warm white to cool white, measured in Kelvin (K).
  Colour Temperature6000K
- Estimated lifespan of the product before it loses performance. Based on optimal, non-continuous use, and measured in hours of operation under controlled conditions.
  Hours80.000 Horas
- Light ColourDaylight
- Lumen17000 lm
- Ratio between light output (lumens) and energy consumed (watts). A high value indicates better efficiency, ideal for saving energy without compromising lighting.
  Luminous Efficiency170 lm/W
- Number of LEDs195
- Power Factor0.95
- Standard colour deviation (MacAdam)SDCM ≤ 6
Driver Information
- Driver BrandLIFUD
- Driver Intensity300 mA-500 mA
- Driver ModelLF-FHB120YD
- Driver Power120 W
- Voltage level that the driver uses to power the LEDs or electrical components of the product, ensuring their proper functioning.
  Driver Tension180 V-260 V
- Selectable Wattage100 W - 80 W - 60 W
- Type Of DriverLIFUD 0-10V dimmable NO flicker
- WifiNo

Description

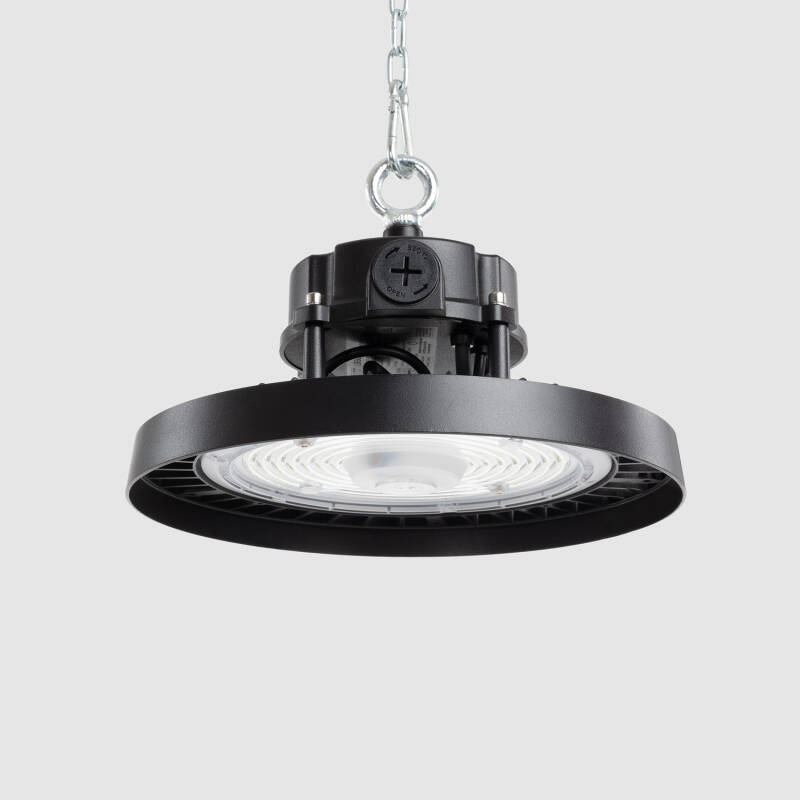

The UFO LED 0-10V Dimmable High Bay HBD Evo is a high-performance industrial luminaire designed for demanding environments. It features a LUMILEDS SMD2835 light source with a luminous efficacy of 170 lm/W and incorporates a LIFUD driver with 0-10V dimming capability, ensuring precise control and energy efficiency.

General information about UFO LED 0-10V Dimmable High Bay HBD Evo LUMILEDS 170lm/W LIFUD

This high bay luminaire is constructed with robust aluminium housing, providing mechanical strength and excellent heat dissipation. It offers a high degree of protection with an IP65 rating for dust and water resistance, complemented by an IK08 impact resistance level, suitable for industrial and outdoor installations. The luminaire operates within a wide ambient temperature range from -40 °C to +50 °C, ensuring reliable performance in harsh conditions. It includes an integrated LIFUD driver with a power factor of 0,95 and overvoltage protection up to 6 kV, enhancing electrical safety. The luminaire belongs to the HBD series, known for sealed design tailored for dusty or humid industrial environments, offering improved efficiency in medium power ranges.

Use and applications

This industrial high bay luminaire is designed to provide reliable illumination in outdoor settings, making it suitable for installations where environmental protection and robustness are essential. Its IP65 enclosure and IK08 resistance make it appropriate for zones exposed to dust and mechanical impacts, typical in industrial or municipal outdoor areas. The aluminium construction ensures durability, while the 0-10V dimming function allows integration with advanced lighting control systems, adapting to various operational needs.

The luminaire operates efficiently within a voltage range of 220-240 V AC and withstands ambient temperatures from -40 °C to +50 °C, supporting continuous operation in demanding climates. Its overvoltage protection and electrical insulation class I provide additional safety for professional installations. This solution is ideal for projects where precision control, robustness, and energy efficiency are critical, ensuring long-term reliability and ease of maintenance.

Key benefits

Enhanced energy efficiency thanks to the high luminous efficacy of the LUMILEDS SMD2835 light source.
Robust protection against dust and water ingress with IP65 rating, suitable for challenging outdoor environments.
Excellent mechanical resistance with IK08 impact protection, ensuring durability in industrial settings.
Advanced lighting control enabled by the 0-10V dimmable LIFUD driver, allowing flexible intensity adjustment.
Electrical safety reinforced by overvoltage protection and class I insulation, supporting secure installations.

Highlighted specifications

Power factor: 0,95; Luminous efficiency: 170 lm/W; Protection level: IP65; Impact resistance: IK08; Ambient temperature range: -40 °C to +50 °C.

Installation and maintenance

The UFO LED High Bay is designed for pendant mounting, facilitating installation in industrial or outdoor environments. Installation must follow the indicated mounting system to ensure optimal performance and safety. Maintenance procedures should consider the luminaire's robust construction and protection features to preserve its operational integrity. Disconnect the power supply before any intervention. The product does not include a remote control, so external control systems must be compatible with the 0-10V dimming interface.
