Range Essential
  • 150 W
    Wattage 150 W
  • 220-240V AC
    Voltage Range 220-240V AC
  • 18000 lm
    Lumen 18000 lm
  • 300 mm
    Diameter 300 mm
Image of Solid X3 150W UFO LED High Bay 90lm/w
    Image of Solid X3 150W UFO LED High Bay 90lm/w
    Image of Solid X3 150W UFO LED High Bay 90lm/w
    Image of Solid X3 150W UFO LED High Bay 90lm/w
    Image of Solid X3 150W UFO LED High Bay 90lm/w
1 / 4
  • 150 W

    Wattage

    150 W

  • 220-240V AC

    Voltage Range

    220-240V AC

  • 18000 lm

    Lumen

    18000 lm

  • 300 mm

    Diameter

    300 mm

  • 192

    Number of LEDs

    192

  • 0.9

    Power Factor

    0.9

  • UGR <22

    Glare Factor

    UGR <22

  • IP65

    IP Rating

    IP65

  • No

    Battery Operated

    No

  • 80 mm x Ø300 mm

    Dimensions

    80 mm x Ø300 mm

  • 80 mm

    Height

    80 mm

  • IK07

    IK Protection

    IK07

Solid X3 150W UFO LED High Bay 90lm/w

Download technical datasheet

Ref. Ledkia: 177098

Colour Temperature No Flicker Daylight 6000K

UFO LED 0-10V Dimmable High Bay HBD Evo LUMILEDS 170lm/W LIFUD

Premium range

37,19 €

23,59 €

VAT included
Energetic efficiency

In Stock, delivery in 16-21 days

PRO CLUB badge

Are you a lighting professional or a company?

  • Great discounts off PVP
  • Extended Warranty
  • Exclusive Services

Buy now, pay later

Credit payment

    • 30 calendar days to return

      You can renounce to this product during the first 30 calendar days from receipt, provided that the product remains in perfect condition for use.


      Custom-made products and cut-to-size strips are excluded.


      Full conditions here: After-Sales Service.

    • 5-7 days Delivery

      If you place your order today before 18:00h, delivery within 5-7 days (working days).


      Shipping is free on purchases over 49,99 € (incl. VAT).


      Full conditions here: Shipping methods.

    • 100% secure payments

      payment method image 1

      payment method image 2

      At Ledkia we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation.


      More information: Payment methods.

    • Warranty up to 5 years

      Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.


      You will find the exact product warranty in the technical details.


      Full conditions here: After-Sales Service.

Dimensions

  • Diameter300 mm
  • Height80 mm

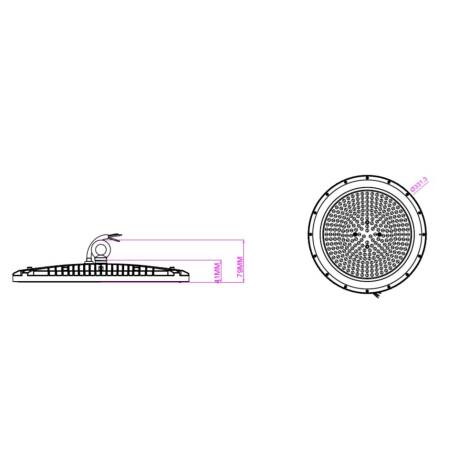

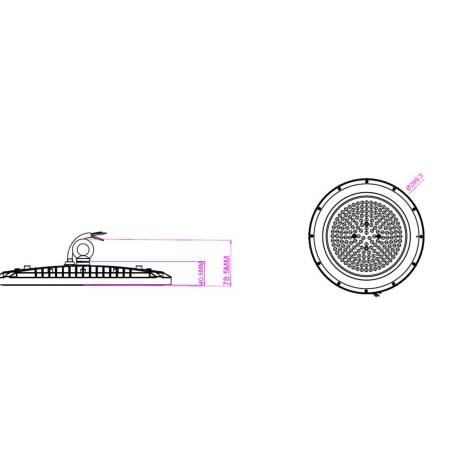

Scheme image

Downloads

  • pdf file

    PDF Datasheet 177098_358093 IE

  • pdf file

    DoC_177098_358093

Certificates and Stamps

CertificateCertificateCertificate

Technical Specifications

  • Electrical Features

    • Electrical Insulation ClassI
    • Frequency50-60 Hz
    • Light SourceLUMILEDS SMD2835
    • Minimum and maximum voltage fluctuation that the product can withstand momentarily.
      Nominal Voltage220 V - 240 V
    • Product's ability to withstand voltage spikes or electrical overloads, protecting internal components from potential damage due to current fluctuations.
      Overvoltage Protection2 kV
    • Voltage level required for the product to function correctly.
      Voltage Range220-240V AC
    • Wattage150 W

  • Materials and Finishes

    • ColourBlack
    • Fitting MaterialAluminium
    • RAL Colour9005

  • LED Features

    • Measures in degrees how light spreads from the source. A wide angle covers more area, while a narrow one is ideal for highlighting details.
      Beam Angle90º
    • Measures how accurately a light source displays colours compared to natural light. A high CRI (close to 100) ensures accurate colour rendering.
      Colour Rendering Index80
    • Defines the light tone, from warm white to cool white, measured in Kelvin (K).
      Colour Temperature6000K
    • Low-glare products offer more comfortable lighting, suitable for extended use.
      Glare FactorUGR <22
    • Estimated lifespan of the product before it loses performance. Based on optimal, non-continuous use, and measured in hours of operation under controlled conditions.
      Hours40.000 hours
    • Efficiency of the LEDs, measured as the amount of light generated per unit of energy consumed (lumens per watt). High efficiency ensures energy savings without losing light quality.
      LED Performance130 lm/W
    • Light ColourDaylight
    • Lumen18000 lm
    • Ratio between light output (lumens) and energy consumed (watts). A high value indicates better efficiency, ideal for saving energy without compromising lighting.
      Luminous Efficiency120 lm/W
    • Technology that ensures stable, flicker-free light. It improves visual experience and reduces eye fatigue.
      No FlickerNo Flicker
    • Number of LEDs192
    • Power Factor0.9
    • Standard colour deviation (MacAdam)SDCM ≤ 6
    • ULOR2 %

  • Mechanical Features

    • Temperature range in which the product can operate optimally, ensuring its performance without overheating or damage.
      Ambient Working Temperature-20 °C~+40 °C
    • Protection grade that the product offers against physical impacts. It is measured on a scale from IK00 to IK10, with IK10 being the highest level of resistance to impact and mechanical damage.
      IK ProtectionIK07
    • Installation of the bracketSuspension
    • The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
      IP RatingIP65
    • LocationOutdoor, Indoor
    • Type of lens that determines the distribution and quality of the light. It influences the illumination angle and light efficiency.
      Optic90º
    • SupportPendant

  • Product Information

    • CertificatesCE, RoHS, UKCA
    • Guarantee3 years
    • Product SeriesUFO Solid

  • Driver Information

    • WifiNo

Description

The Solid X3 150W UFO LED High Bay is a high bay luminaire designed for industrial environments, delivering a luminous efficiency of 90 lm/W and equipped with a power factor of 0.9. It features a 150 W power consumption and integrates a reliable driver for consistent performance.

General information about Solid X3 150W UFO LED High Bay 90lm/w

This high bay fitting incorporates a robust aluminium housing that ensures durability in demanding settings. It features a 90º optic for focused light distribution and provides a low ULOR of 2%, minimising upward light emission. The luminaire is rated IP65 for protection against dust and water jets, and IK07 for impact resistance, making it suitable for both indoor and outdoor installations. It includes overvoltage protection of 2 kV and operates within a temperature range of -20 °C to +40 °C. The CRI of 80 ensures acceptable colour rendering for industrial tasks. The luminaire is part of the UFO Solid series, known for its sturdy construction and stable output, tailored to industrial and logistics applications.

Use and applications

The Solid X3 150W UFO LED High Bay is designed to provide efficient lighting in industrial zones where durability and precise light control are essential. It suits indoor warehouses requiring robust fixtures with high luminous flux, thanks to its IP65 protection and IK07 impact resistance. Additionally, it can be installed in outdoor industrial environments due to its resistance to dust and water jets, which supports reliable operation under variable ambient conditions.

Operating within a nominal voltage of 220–240 V AC and equipped with a suspension mounting system, this luminaire adapts to professional installations demanding secure fixing and maintenance ease. Its low UGR factor below 22 contributes to visual comfort by controlling glare. This solution is oriented to projects where robustness, efficient power consumption, and reliable control are key factors in lighting performance.

Key benefits

  • Enhanced durability thanks to an aluminium housing that withstands industrial environments.
  • Improved visual comfort with a glare factor below 22, reducing eye strain in workspaces.
  • Reliable protection against dust and water with IP65 rating for versatile installation options.
  • Effective impact resistance provided by IK07 certification, ensuring fixture integrity.
  • Consistent light quality with a CRI of 80, suitable for industrial colour rendering needs.

Highlighted specifications

Power consumption: 150 W; Luminous flux: 13.500 lm; Protection rating: IP65; Impact resistance: IK07.

Installation and maintenance

The luminaire is installed by suspension mounting, ensuring secure and adaptable positioning in industrial settings. Installation must follow the indicated system to guarantee safety and performance. The fixture requires disconnection of the power supply before any intervention. Its robust design facilitates maintenance while maintaining protection and electrical insulation class I.

Disconnect the power supply before any intervention.


Specialized lighting distribution in Ireland. If you are looking to buy Solid X3 150W UFO LED High Bay 90lm/w with a professional warranty, it is a leading choice for durability and efficiency. Estimated shipping in 3 to 4 days (subject to stock availability). CE, RoHS, UKCA certified for professional installations and projects. Check price and availability here.
