Wattage 10000 W

1 / 2

Wattage
10000 W
Max Wattage
11 kW
MPPT Tension Range
180 V-900 V
Max Mppt Intensity
15 A
Number Of Solar Trackers Mppt
2
IP Rating
IP65
Battery Operated
Yes
Dimensions
430 mm x 550 mm x 207 mm
Width
550 mm
Height
430 mm
Connectivity
Wi-Fi
Brand
SAJ
Working Temperature
0ºC - 0ºC

Wattage 10000 W

10000 W
In Stock, estimated shipping from 12/05/2025

2.372,57 €

VAT included

In Stock, estimated shipping from 12/05/2025

Are you a lighting professional or a company?

Great discounts off PVP
Extended Warranty
Exclusive Services

See alternatives

Dimensions

Height430 mm
Depth207 mm
Weight25 kg
Dimensions430 mm x 550 mm x 207 mm
Width550 mm

Downloads

Technical Data Sheet PDF

Certificates and Stamps

Technical Specifications

Technical Information
- Temperature range in which the product can operate optimally, ensuring its performance without overheating or damage.
  Ambient Working Temperature-20 °C~+50 °C
- Quality, safety and compliance certifications that the product has obtained, such as CE, RoHS or UL, which guarantees that it meets industry standards and current regulations.
  CertificatesRoHS, CE, UKCA
- Level of electrical protection of the product against shocks. Indicates whether it is suitable for different conditions of use, guaranteeing safety in the installation.
  Electrical Insulation ClassI
- The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
  IP RatingIP65
- Specification that describes the purpose or application of the product, such as lighting, air conditioning, or security, among others.
  LocationOutdoor, Indoor
- Maximum current that a charge controller with maximum power point tracking (MPPT) can manage, optimizing the performance of solar systems.
  Max Mppt Intensity15 A
- The maximum amount of power that the product can safely consume, indicated in watts. It is important to ensure proper installation and avoid overloading.
  Max Wattage11 kW
- Voltage range over which an MPPT (maximum power point tracking) controller operates optimally to maximize the efficiency of a PV system.
  MPPT Tension Range180 V-900 V
- Number of batteries necessary for the operation of the product, important to determine its autonomy and time of use.
  Number Of Batteries1
- Number of devices that manage the performance of solar panels with maximum power point tracking (MPPT) technology, optimizing energy production.
  Number Of Solar Trackers Mppt2
- Indicates how much energy the light source consumes, measured in watts (W). In LED lighting, the power is much lower than in traditional sources, and is related to the light intensity (lumens).
  Wattage10000 W
- Internal temperature range in which the product can operate efficiently and safely. It is important to ensure its reliability under different usage conditions.
  Working Temperature0ºC - 0ºC
Product Data
- Manufacturer or company responsible for designing and producing the product. A recognized name ensures quality and support.
  BrandSAJ
- Period during which the customer has the right to have their product repaired or replaced in the event of manufacturing defects or malfunctions under normal conditions of use. For more information, consult our After-sales page.
  Warranty3 years
Product Information
- Technology or means that allows the product to connect to networks, devices or systems, such as Wi-Fi, Bluetooth or cables. Make it easy to control or integrate into your smart home.
  ConnectivityWi-Fi

Description

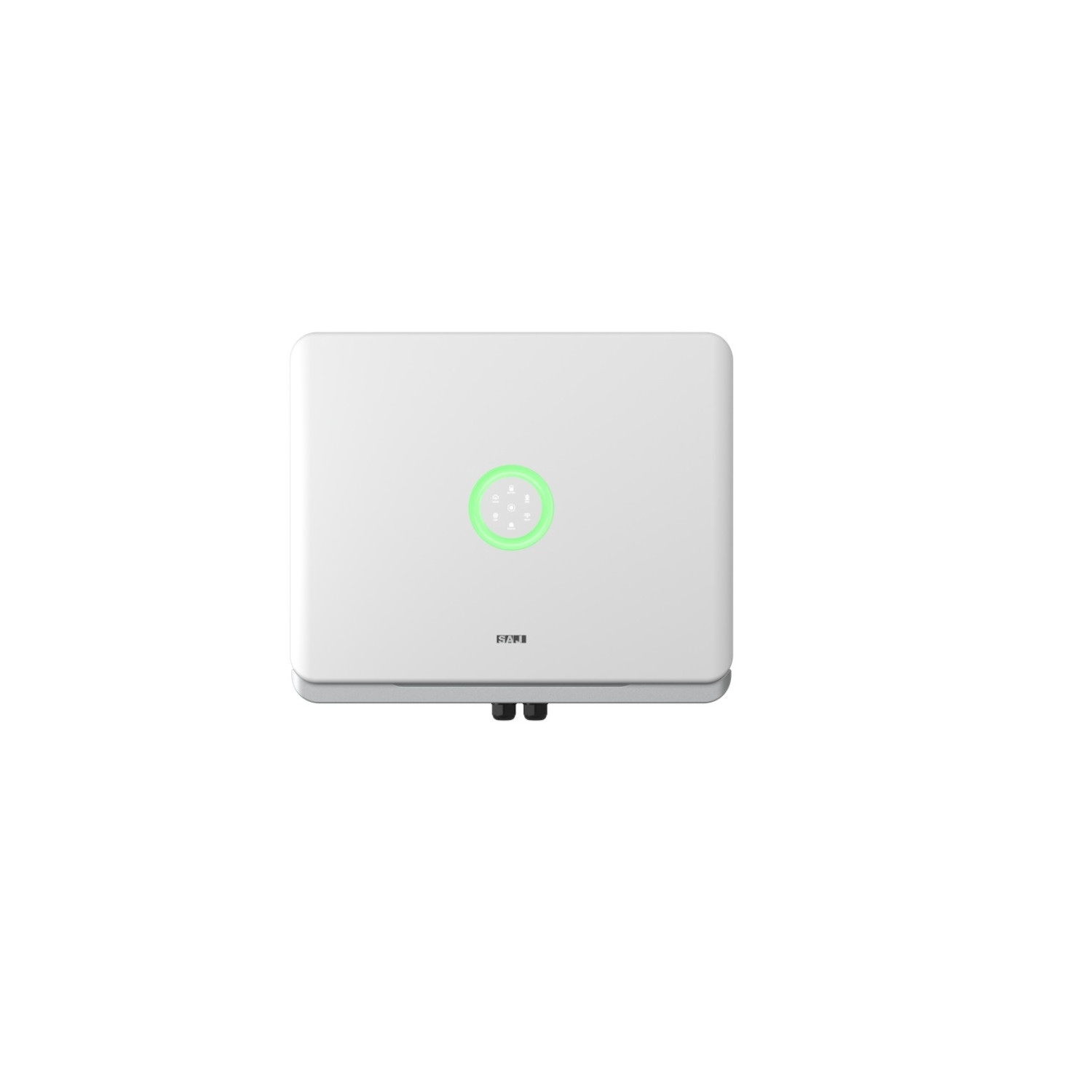

The Three-Phase Hybrid Solar Inverter SAJ H2 High Voltage Pylontech Battery Charger 10 kW is an inverter that can charge high voltage batteries and can also be connected to the mains. They are the most interesting inverters because during the day they charge the battery with the surplus energy, at night the battery provides light, when the battery runs out, it starts consuming from the mains. It has two MPPT inputs where two strings of panels can be connected. Using the ePortal platform and a WiFi connection, you can monitor production and consumption data or carry out remote maintenance.

This inverter can work with or without batteries. Its main function is to transform the direct current from the panels into alternating current and charge high voltage batteries. This inverter can charge batteries with the surplus of the photovoltaic production and in this way have energy available at night and be as self-sufficient as possible. It needs a minimum battery voltage of 180 Volts so we will have to connect in series at least 4 Pylontech 48V high voltage batteries. These 4 batteries will also need a Pylontech BMS module to ensure a stable voltage and prevent them from discharging below the maximum depth of discharge.

The SAJ H2 hybrid range offers a very interesting entry level range in an industry that is active at night. The price/performance ratio is extremely attractive and the return on investment is very attractive.

Features of the Three-Phase Hybrid Solar Inverter SAJ H2 High Voltage Pylontech Battery Charger 10 kW

It has 2 MPPT (Maximum power point tracking) regulators with a wide range of operating voltage that will allow us to make series of panels with greater comfort and flexibility. The MPPT work between 180 and 900VDC.

To get the inverter to reduce output power and avoid dumping excess production to the grid it will be necessary to purchase a compatible wattmeter (sold separately) or increase the storage capacity of the batteries. It has a very good connectivity thanks to the integrated Wifi and RS232 communication. It has an App for IOS and Android to monitor at all times. Its interface is simple and visual to be able to control its operation or any type of error.

H2 inverters can be installed indoors and outdoors thanks to their IP65 protection level and do not incorporate fans, so they are quieter than other inverters on the market.
