Voltage Range 400V AC, 220-240V AC
IP Rating IP54

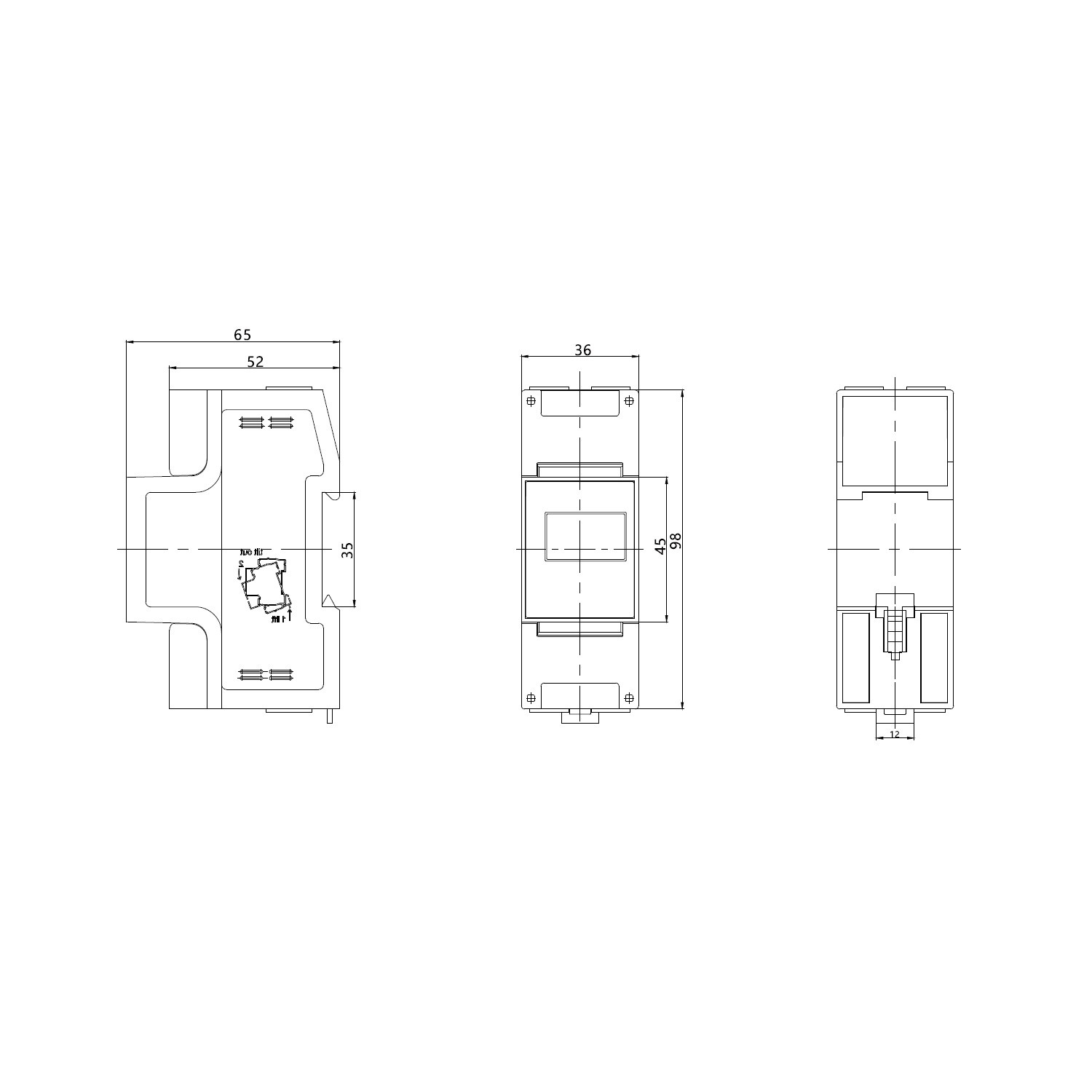

Dimensions 98 mm x 36 mm x 65 mm
Width 36 mm

1 / 3

Voltage Range
400V AC, 220-240V AC
IP Rating
IP54
Dimensions
98 mm x 36 mm x 65 mm
Width
36 mm
Height
98 mm
Fitting Material
PC
Brand
CHINT
Working Temperature
-10 °C~+75 °C

Type Of Current Single phase

Single phase
In Stock, delivery in 15-20 days

Before 101,99 €

-9% (You save 9,00 €)

92,99 €

VAT included

In Stock, delivery in 15-20 days

Are you a lighting professional or a company?

Great discounts off PVP
Extended Warranty
Exclusive Services

See alternatives

Dimensions

Height98 mm
Depth65 mm
Dimensions98 mm x 36 mm x 65 mm
Width36 mm

Downloads

Technical Data Sheet PDF

Certificates and Stamps

Technical Specifications

Technical Information
- Temperature range in which the product can operate optimally, ensuring its performance without overheating or damage.
  Ambient Working Temperature-40 °C~+85 °C
- Quality, safety and compliance certifications that the product has obtained, such as CE, RoHS or UL, which guarantees that it meets industry standards and current regulations.
  CertificatesRoHS, CE, UKCA
- Composition of the product or its components, such as aluminum, steel, plastic or glass. The material influences the durability, design and thermal properties of the product.
  Fitting MaterialPC
- Range of cycles per second at which the product operates, measured in hertz (Hz). A standard value ensures compatibility with local electrical networks.
  Frequency50-60 Hz
- The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
  IP RatingIP54
- Specification that describes the purpose or application of the product, such as lighting, air conditioning, or security, among others.
  LocationOutdoor, Indoor
- Specifies the type of current the product uses, either alternating current (AC) or direct current (DC), relevant to ensure compatibility with the electrical system.
  Type Of CurrentSingle phase
- Voltage level required for the product to function correctly.
  Voltage Range400V AC, 220-240V AC
- Internal temperature range in which the product can operate efficiently and safely. It is important to ensure its reliability under different usage conditions.
  Working Temperature-10 °C~+75 °C
Product Data
- Manufacturer or company responsible for designing and producing the product. A recognized name ensures quality and support.
  BrandCHINT
- Period during which the customer has the right to have their product repaired or replaced in the event of manufacturing defects or malfunctions under normal conditions of use. For more information, consult our After-sales page.
  Warranty3 years

Description

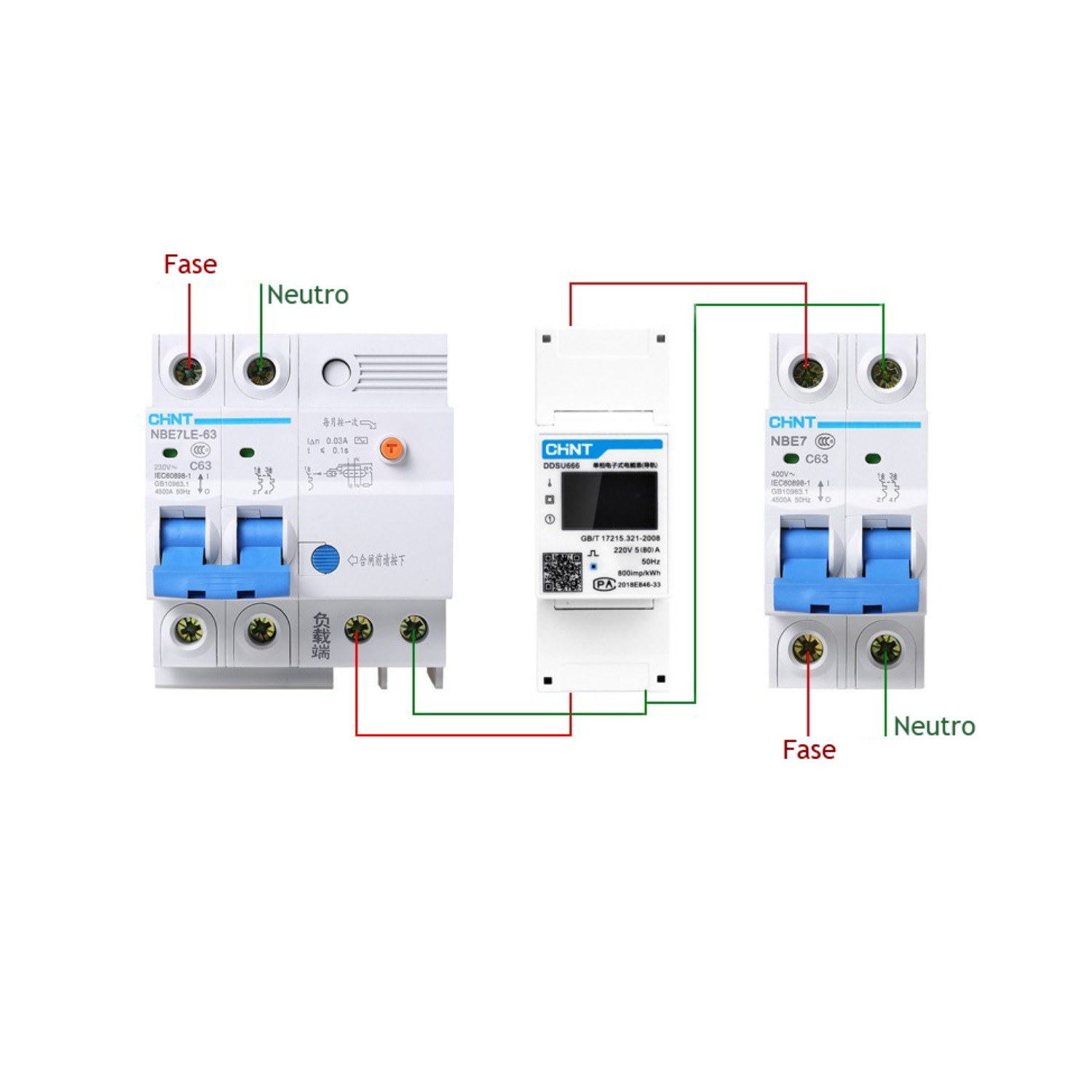

The SAJ SMART METER 24h Consumption Analyser Meter for zero discharge in Hybrid Inverters H1 and H2 is a necessary accessory to configure the injection to 0 of the SAJ Inverters of the H1 and H2 series of our website. We have two models, the three-phase model DTSU666 and the single-phase model DDSU666 by means of which you can measure and block the current discharged to the grid.

The SAJ SMART METER 24h Consumption Analyser Meter for zero discharge in Hybrid Inverters H1 and H2 is a digital meter for 24-hour monitoring of electricity consumption. This analyser is able to measure the consumption of the home or industry, constantly adapting the power delivered by the photovoltaic system to the consumption of the installation. It is a necessary accessory if we wish to configure the self-consumption photovoltaic installation so that it does not feed energy into the electricity grid. The meter knows what the energy demand of the house is. For example, if the house consumes 3 kW and the solar plant is generating 2 kW, the meter will only consume 1 kW from the meter. On the other hand, if there are surpluses, the meter can discharge to the grid or zero discharge depending on the configuration that we have made.

It is ideal for the pricing of the energy of your home or company and on the other hand, it allows you to manage the surplus production of the photovoltaic installations of self-consumption "On grid", performing zero injection or controlled injection depending on the needs of the moment. The inverter includes an RS485 Modbus RTU communications protocol and it is with this protocol that the meter informs the inverter whether or not there is a discharge. The meter is mounted on DIN rail and can measure a multitude of electrical magnitudes and also performs bidirectional energy measurement calculating: kWh and kVArh.

To configure the system to zero discharge:

1. Open the eSolar O&M application and make sure all devices are connected to it.

2. Access the eSolar SEC interface.

3. Click on the settings icon in the top right corner.

4. Go to the export limitation by phase energy configuration option.

5. Set the export limit value to 0% to avoid any energy dumping.

Complement your photovoltaic installation with the different meters, protection boxes and electrical material for Photovoltaic Solar Energy from the wide catalogue that we offer on our website.
