Wattage 240 W
Voltage Range 220-240V AC
Type Of Dimming DALI 2
Power Factor 0.96

Wattage
240 W
Voltage Range
220-240V AC
Type Of Dimming
DALI 2
Power Factor
0.96
IP Rating
IP67
Dimensions
39 mm x 60 mm x 201 mm
Width
60 mm
Height
39 mm
Fitting Material
Aluminium
Dimmable
Yes

Colour : Grey

Pre-Order, estimated shipping from 05/05/2025

113,99 €

VAT included

Pre-Order, estimated shipping from 05/05/2025

Are you a lighting professional or a company?

Great discounts off PVP
Extended Warranty
Exclusive Services

See alternatives

Dimensions

Height39 mm
Depth201 mm
Dimensions39 mm x 60 mm x 201 mm
Width60 mm

Downloads

Technical Data Sheet PDF

Certificates and Stamps

Technical Specifications

Technical Information
- Temperature range in which the product can operate optimally, ensuring its performance without overheating or damage.
  Ambient Working Temperature-20 °C~+50 °C
- Quality, safety and compliance certifications that the product has obtained, such as CE, RoHS or UL, which guarantees that it meets industry standards and current regulations.
  CertificatesRoHS, CE, CCC, ENEC, UKCA
- Specification of the color of the product or its light (in the case of products such as lamps or light bulbs), which may affect the aesthetics and functionality of its use.
  ColourGrey
- It indicates that the product allows parameters such as light intensity, speed or color temperature to be adjusted, providing greater flexibility and customization.
  DimmableYes
- Level of electrical current that the driver is capable of handling to power components, such as LEDs, ensuring safe and efficient operation.
  Driver Intensity4200 mA-6700 mA
- Voltage level that the driver uses to power the LEDs or electrical components of the product, guaranteeing their correct operation.
  Driver Tension18 V-57 V
- Level of electrical protection of the product against shocks. Indicates whether it is suitable for different conditions of use, guaranteeing safety in the installation.
  Electrical Insulation ClassI
- Composition of the product or its components, such as aluminum, steel, plastic or glass. The material influences the durability, design and thermal properties of the product.
  Fitting MaterialAluminium
- Range of cycles per second at which the product operates, measured in hertz (Hz). A standard value ensures compatibility with local electrical networks.
  Frequency50-60 Hz
- Level of protection against the entry of solids and liquids, according to international regulations. The two numbers indicate protection against dust (first number) and against water (second number).
  IP RatingIP67
- Specification that describes the purpose or application of the product, such as lighting, air conditioning, or security, among others.
  LocationOutdoor, Indoor
- Product's ability to withstand voltage spikes or electrical surges, protecting internal components from possible damage due to fluctuations in current.
  Overvoltage Protection10 kV
- Indicates the electrical efficiency of the product by measuring the relationship between the useful power and that consumed. A value close to 1 represents more efficient consumption.
  Power Factor0.96
- Voltage level necessary for the product to function correctly. Ensures its compatibility with the electrical network or with specific power systems.
  Voltage Range220-240V AC
- Indicates how much energy the light source consumes, measured in watts (W). In LED lighting, the power is much lower than in traditional sources, and is related to the light intensity (lumens).
  Wattage240 W
Product Data
- Period during which the customer has the right to have their product repaired or replaced in the event of manufacturing defects or malfunctions under normal conditions of use. For more information, consult our After-sales page.
  Warranty3 years
Product Information
- System used to control product characteristics, such as intensity regulation, color temperature or speed, adjusting its performance according to the user's needs.
  Type Of DimmingDALI 2

Description

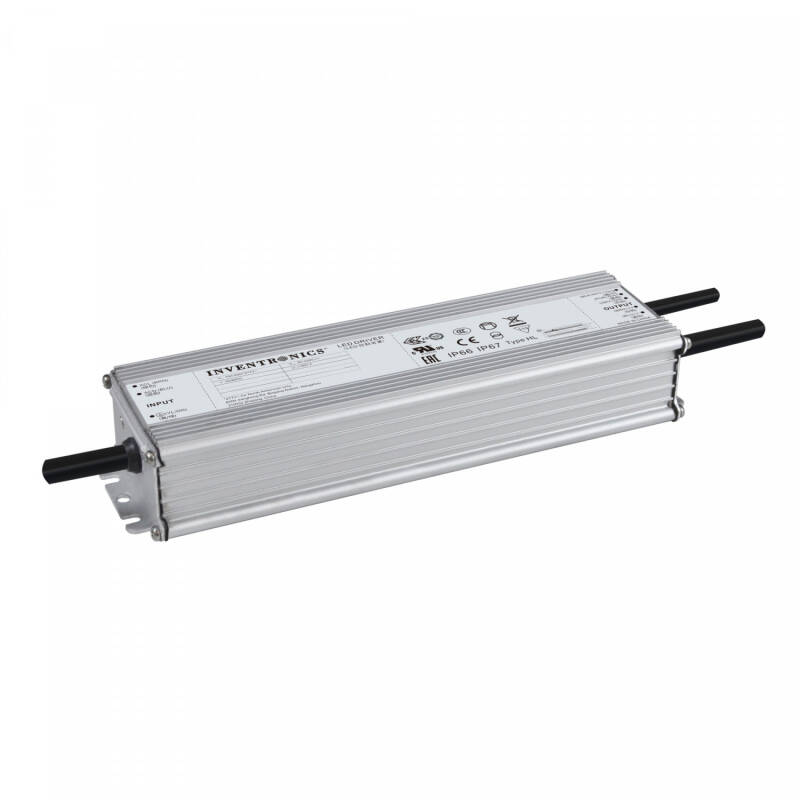

Driver from the prestigious company INVENTRONICS specifically designed for LED street lighting. A LED driver is responsible for converting the alternating current from the electrical grid into direct current suitable for illuminating LED chips. To know if a driver will work with our luminaire, PCB or panel, we should check the output voltage and current of the driver.

Features of the 220-240V INVERTRONICS DALI-2 Dimmable Driver 18-57V DC Output 4200-6700mA 240W IP67 EUM-240S670BG

This driver has multi-voltage input. This means it can withstand voltage fluctuations during a short period without suffering damage. Additionally, its output is also multi-voltage, meaning it can deliver a constant voltage within a range, allowing the same driver to be used for various applications with different current and voltage requirements.

Once the driver is powered, the voltage will automatically adjust, and the output voltage will be constant. The DALI-2 dimmable driver must be used with a compatible dimmer, which will allow us to easily select the desired light intensity. Its power factor is very high, making it a very efficient driver.

The high efficiency of this driver and its compact metal casing allow it to operate in cooler temperatures, significantly improving reliability and extending its lifespan.

This driver, in addition to having DALI-2 dimming, can also be dimmed via 1-5V, 10V PWM modulation. On the other hand, it has 3 types of dimming:

- Nighttime Self-Adaptation: automatically adjusts the dimming curve based on the on-time of the last two days, with the midpoint of the dimming curve being midnight.

- Self-Adaptation Percentage: automatically adjusts the on-time at each step by a constant percentage.

- Additional Timer: follows the programmed timing curve after being turned on without changes.
