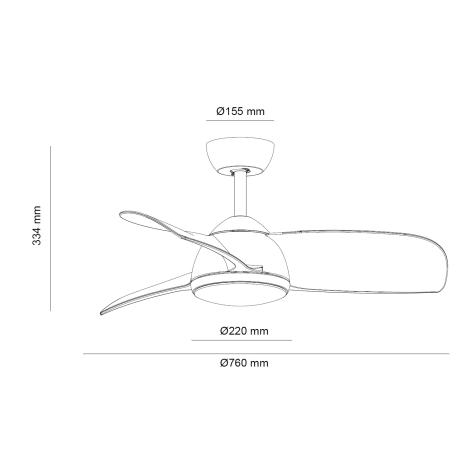

Dimensions

Ceiling Rose Dimensions60 mm x Ø155 mm
Diameter760 mm
Height334 mm
Weight4.7 kg
Dimensions334 mm x Ø760 mm

Downloads

Technical Data Sheet PDF

Certificates and Stamps

Technical Specifications

Product Information
- Technology or means that allows the product to connect to networks, devices or systems, such as Wi-Fi, Bluetooth or cables. Make it easy to control or integrate into your smart home.
  ConnectivityRF
- Rango Nivel de Sonido23 dB - 38 dB
- Ideal space to use this product, such as living rooms, bedrooms or outdoors. Helps you choose the perfect lighting according to the environment and desired functionality.
  Recommended AreaSmall (up to 10 m²)
- Speed Range140 RPM - 265 RPM
- Device or system that regulates and adjusts the functions of the product, such as light intensity, color temperature or automatic on/off.
  Switch TypeWall controller + Remote
- System used to control product characteristics, such as intensity regulation, color temperature or speed, adjusting its performance according to the user's needs.
  Type Of DimmingRemote Control
- Type of motor used in products such as fans or mechanical devices. It can be an AC, DC, or high-performance motor depending on the application.
  Type Of MotorDC
Technical Information
- Temperature range in which the product can operate optimally, ensuring its performance without overheating or damage.
  Ambient Working Temperature-20 °C~+50 °C
- Quality, safety and compliance certifications that the product has obtained, such as CE, RoHS or UL, which guarantees that it meets industry standards and current regulations.
  CertificatesRoHS, CE, UKCA
- Specification of the color of the product or its light (in the case of products such as lamps or light bulbs), which may affect the aesthetics and functionality of its use.
  ColourWhite
- Level of electrical protection of the product against shocks. Indicates whether it is suitable for different conditions of use, guaranteeing safety in the installation.
  Electrical Insulation ClassII
- Energy consumed by the LED ceiling fan, measured in watts (W). Determines the level of energy efficiency and cooling capacity.
  Fan Wattage35 W
- Composition of the product or its components, such as aluminum, steel, plastic or glass. The material influences the durability, design and thermal properties of the product.
  Fitting MaterialABS, Metal
- Range of cycles per second at which the product operates, measured in hertz (Hz). A standard value ensures compatibility with local electrical networks.
  Frequency50-60 Hz
- Information on how the product should be placed or mounted, such as instructions on whether it requires professional installation or is easy to do by the end user.
  InstallationSurface
- The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
  IP RatingIP20
- Specification that describes the purpose or application of the product, such as lighting, air conditioning, or security, among others.
  LocationIndoor
- Number of fan speed settings. It allows you to choose between different levels of air circulation, from a gentle flow to a more powerful one.
  Number Of Speeds6
- Voltage level required for the product to function correctly.
  Voltage Range220-240V AC
Product Data
- Manufacturer or company responsible for designing and producing the product. A recognized name ensures quality and support.
  BrandTECHBREY
- Number or name that identifies the series or product line to which an item belongs, generally indicating the style, characteristics or version of a range.
  Product SeriesPoros
- Period during which the customer has the right to have their product repaired or replaced in the event of manufacturing defects or malfunctions under normal conditions of use. For more information, consult our After-sales page.
  Warranty3 years

Description

The Poros Silent Ceiling Fan with DC Motor 76cm incorporates a light source with LED technology and CCT of 18W power. Featuring a minimalist and elegant look. With its large dimensions, this fan is able to generate a soft and constant breeze that refreshes the atmosphere, even in the largest rooms.

The fan incorporates a DC motor that stands out for its lightness, durability, efficiency and low power consumption. Some of the advantages of a fan with a DC motor over a fan with an AC motor are:

- Extremely quiet and wobble-free fan. Thanks to its DC motor we manage to reduce the sound emitted by the fan, up to 50% compared to AC motors, making the fan perfect for rest, study and work rooms.

- Low consumption. Fans with DC motors consume up to 70% less energy than those with AC motors, which means savings on your household electricity bill.

- They are quicker to start up, change speed and stop. In addition, it incorporates 6 speed modes compared to the 3 or 4 speeds of AC motors.

It has a remote control with 6 functions:

- Switching on and off
- Colour temperature selection (Warm-Neutral-Cool)
- Light regulation
- 6 speeds
- Timer 1/2/4 hours
- Summer/Winter function

The Air Dual technology or Reverse System provides the fan with 2 operating modes (summer/winter). With this system, the direction of rotation of the motor and the blades is reversed to dissipate the hot air in summer and evenly distribute the heat from the heating in winter, which improves the thermal sensation, optimises the operation of the heating and contributes to energy saving.

To synchronise the driver with the remote control, connect the fan to the mains and press the ON/OFF button on the remote control for 8 seconds.

It integrates CCT LED light, which allows us to change the colour temperature between 3 types of light (warm light, cold light and neutral light) and create various atmospheres according to our needs.

The Poros Silent Ceiling Fan is a perfect way to keep the rooms in your home cool and bright without having to install an air conditioner.

* The maximum distance of the fan from the ceiling is 48 cm.
* This fan is capable of cooling an area of up to 10 m².

*Includes a spare pole that allows you to extend your fan by 10cm.
