Flexible Multi-Contact MC4 2/1 IP68 Connectors for a 4-6mm² Cable
Price
Before €
€
Price not available
FREE
Flexible Multi-Contact MC4 2/1 IP68 Connectors for a 4-6mm² Cable
Ref: 7296 / CNT-MC4-2146-FL
Similar products
Description Flexible Multi-Contact MC4 2/1 IP68 Connectors for a 4-6mm² Cable

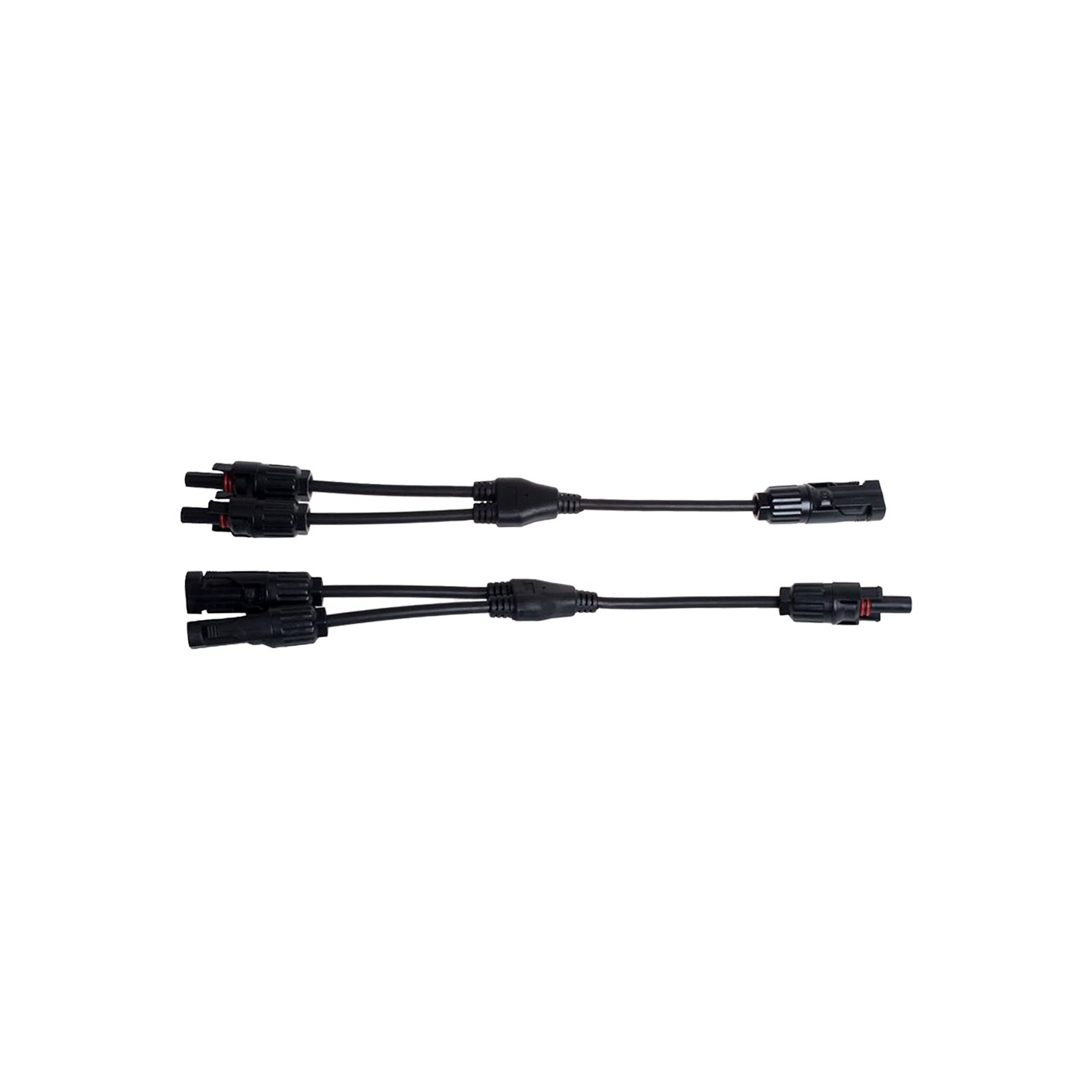

These Flexible Multi-Contact MC4 2/1 Connectors are used for connecting 2 photovoltaic modules in parallel, integrated under cover or within any type of installation, with different cables with 4 to 6mm² dimensions which make up part of the installation. They feature a blocking system and they're easy to install.
The distance between one point on the connector and the other is 33cm.
Its design complies with the strict electrical requirements in photovoltaic installations, aside from offering safe connections and avoiding accidental disconnections.
Characteristics Flexible Multi-Contact MC4 2/1 IP68 Connectors for a 4-6mm² Cable
| Maximum Tension: | 1500 V |
| Intensity Level: | 32 A |
| Protection Class: | II |
| Cable Size: | 6 mm² |
| Use: | Outdoor, Indoor |
| IP Protection: | IP68 |
| Material: | PC |
| Working Temperature: | -40ºC-90ºC |
| Warranty: | 5 Years |
| Certifications: | TÜV, CE & RoHS |
