  • 220-240V AC
    Voltage Range 220-240V AC
  • IP20
    IP Rating IP20
  • No
    Battery Operated No
  • 36 mm x 85 mm x 66 mm
    Dimensions 36 mm x 85 mm x 66 mm
Image of HUAWEI CHINT DDSU666-H Zero Discharge 24h Consumption Analyzer Meter with Toroidal
  • 220-240V AC

    Voltage Range

    220-240V AC

  • IP20

    IP Rating

    IP20

  • No

    Battery Operated

    No

  • 36 mm x 85 mm x 66 mm

    Dimensions

    36 mm x 85 mm x 66 mm

  • 85 mm

    Width

    85 mm

  • 36 mm

    Height

    36 mm

  • HUAWEI

    Brand

    HUAWEI

  • -25 °C~+70 °C

    Working Temperature

    -25 °C~+70 °C

HUAWEI

HUAWEI CHINT DDSU666-H Zero Discharge 24h Consumption Analyzer Meter with Toroidal

HUAWEI
Download technical datasheet

Ref. Ledkia: 93122-194532

Manuf. ref.: CHNT-DDSU666-TR

Type Of Current Three phase

SUMMER 2 SALE

Before 208,99 €

-21% (You save 44,00 €)

164,99 €

VAT included

In Stock, delivery in 15-20 days

PRO CLUB badge

Are you a lighting professional or a company?

  • Great discounts off PVP
  • Extended Warranty
  • Exclusive Services

Buy now, pay later

Credit payment

  • 30 Day Return

    You can renounce to this product during the first 30 calendar days from receipt, provided that the product remains in perfect condition for use.


    Custom-made products and cut-to-size strips are excluded.


    Full conditions here: After-sales service.

  • 5-7 days Free Delivery

    If you place your order today before 18:00h, delivery within 5-7 days (working days).


    Shipping is free on purchases over 49,99 € (incl. VAT).


    Full conditions here: Delivery methods.

  • 100% secure payments

    payment method image 1

    payment method image 2

    At Ledkia we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation.


    More information: Payment methods.

  • Up to 5 year warranty

    Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.


    You will find the exact product warranty in the technical details.


    Full conditions here: After-sales service.

Dimensions

  • Depth66 mm
  • Height36 mm
  • Width85 mm

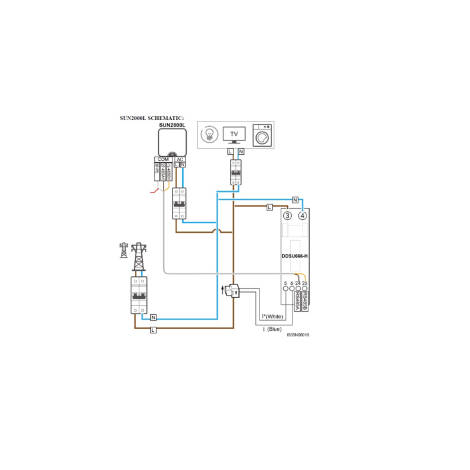

Scheme image

Downloads

  • pdf file

    Technical Data Sheet PDF

Certificates and Stamps

CertificateCertificateCertificate

Technical Specifications

  • Technical Information

    • Temperature range in which the product can operate optimally, ensuring its performance without overheating or damage.
      Ambient Working Temperature-25 °C~+60 °C
    • Quality, safety and compliance certifications that the product has obtained, such as CE, RoHS or UL, which guarantees that it meets industry standards and current regulations.
      CertificatesRoHS, CE, UKCA
    • Frequency50-60 Hz
    • InstallationDIN
    • The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
      IP RatingIP20
    • Type Of CurrentThree phase
    • Voltage level required for the product to function correctly.
      Voltage Range220-240V AC
    • Internal temperature range in which the product can operate efficiently and safely. It is important to ensure its reliability under different usage conditions.
      Working Temperature-25 °C~+70 °C

  • Product Data

    • Manufacturer or company responsible for designing and producing the product. A recognized name ensures quality and support.
      BrandHUAWEI
    • Guarantee3 years

  • Product Information

    • LocationIndoor
Illuminate your outdoor spaces

Description

The HUAWEI CHINT DDSU666-H 24h Consumption Analyser Meter for zero discharge with Toroidal is a necessary accessory to configure the injection to 0 of the HUAWEI SUN2000 Inverter of our website. We have two models, the three-phase model and the single-phase model by means of which you can measure and block the current discharged to the grid.

The CHINT DDSU666-H Energy Meter is a digital meter for 24-hour monitoring of electricity consumption. This analyzer is able to measure the consumption of the home or industry by constantly adapting the power delivered by the photovoltaic system to the consumption of the installation. It is a necessary accessory if we wish to configure the self-consumption photovoltaic installation so that it does not feed energy into the electricity grid. The meter knows the energy demand of the home. For example, if the house consumes 3 kW and the solar plant is generating 2 kW, the meter will only consume 1 kW from the meter. On the other hand, if there are surpluses, the meter can discharge to the grid or make zero discharge depending on the configuration that we have made.

It is ideal for the pricing of the energy of your home or company and on the other hand, it allows you to manage the surplus production of the photovoltaic installations of self-consumption "On grid", performing zero injection or controlled injection depending on the needs of the moment. The inverter includes an RS485 Modbus RTU communications protocol and it is with this protocol that the meter informs the inverter whether or not there is a discharge. The meter is mounted on DIN rail and can measure a multitude of electrical magnitudes and also performs bidirectional energy measurement calculating: kWh and kVArh.

Complement your photovoltaic installation with the different meters, protection boxes and electrical material for Photovoltaic Solar Energy from the wide catalogue that we offer on our website.
