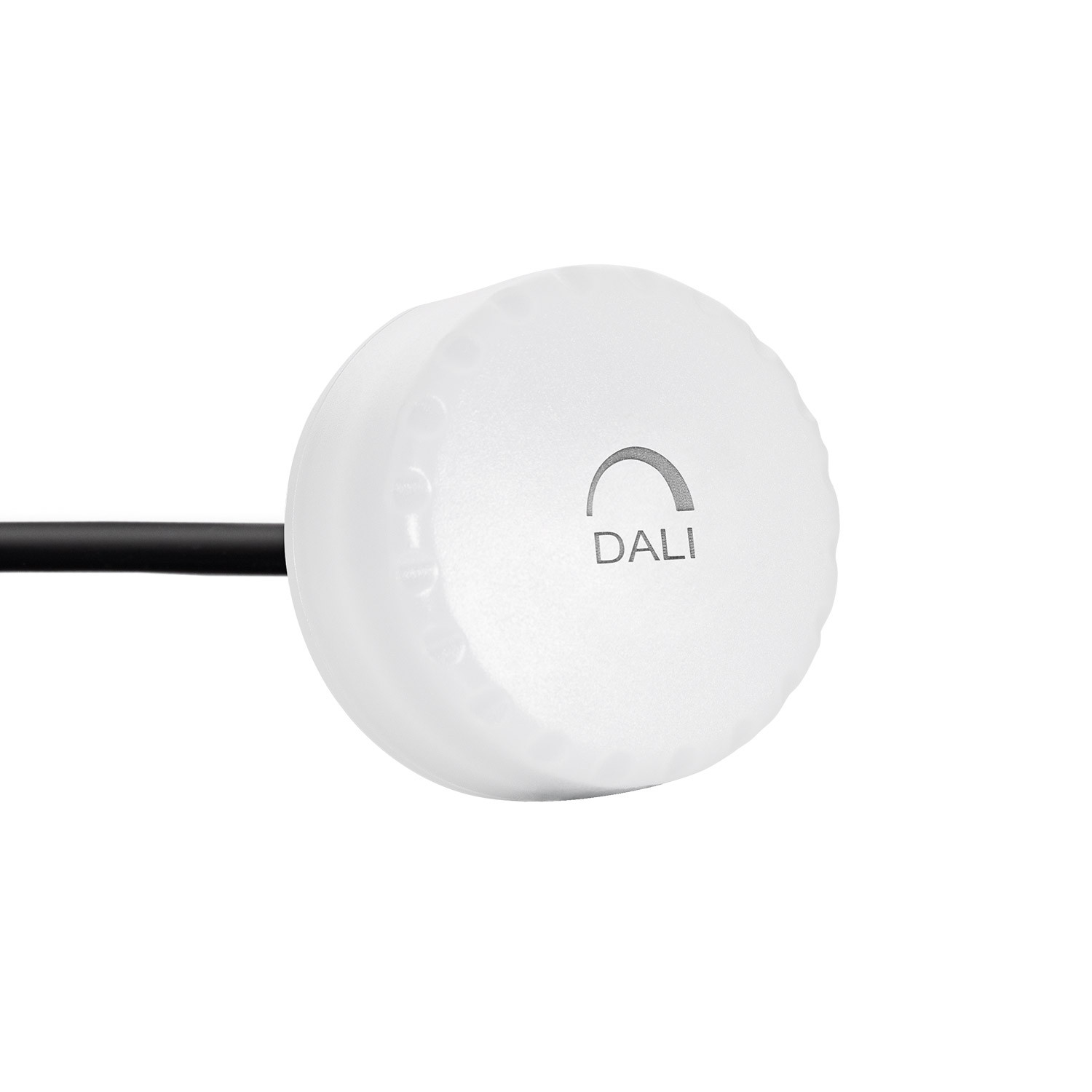

DALI Dimming IP65 for Smart UFO LED High Bays

Download technical datasheet

Ref. Ledkia: 87791

Ref. Fab: SNS-DL-LM-UFO-SMRSL

Choose Finish

PC

  • In Stock, delivery in 15-20 days

Before 25,40 €

-32% (You save 8,13 € )

17,27 €

23% VAT included

In Stock, delivery in 15-20 days

Doesn't include: Remote Control

Buy now, pay later

Credit payment

You can renounce to this product during the first 30 calendar days from receipt, provided that the product remains in perfect condition for use.


Custom-made products and cut-to-size strips are excluded.


Full conditions here: After-sales service.

If you place your order today before 18:00h, delivery within 5-7 days (working days).


Shipping is free on purchases over 49,99 € (incl. VAT).


Full conditions here: Delivery methods.

payment method image 1

payment method image 2

At Ledkia we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation.


More information: Payment methods.

Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.


You will find the exact product warranty in the technical details.


Full conditions here: After-sales service.

Don't forget the accessories 2

  • Product 100W 160lm/W Industrial UFO LUMILEDS Smart LED High Bay LIFUD Dimmable

    100W 160lm/W Industrial UFO LUMILEDS Smart LED High Bay LIFUD Dimmable

    In Stock, delivery in 15-20 days

    12 options

    55,49 €

    Product 200W 160lm/W Industrial UFO LUMILEDS Smart LED High Bay LIFUD Dimmable

    200W 160lm/W Industrial UFO LUMILEDS Smart LED High Bay LIFUD Dimmable

    In Stock, delivery in 15-20 days

    6 options

    67,28 €

Dimensions

  • Total Weight:0.05 Kg
  • Size:34xØ50 mm
  • Height:34 mm
  • Width:50 mm
  • Diameter:Ø50 mm
  • Length:50 mm

Downloads

  • Technical Data Sheet PDF

Certificates and Stamps

Certificate

Technical Specifications

  • Dimmable:DALI
  • Use:Indoor, Outdoor
  • IP Protection:IP65
  • Size:34xØ50 mm
  • Height:34 mm
  • Width:50 mm
  • Length:50 mm
  • Diameter:Ø50 mm
  • Total Weight:0.05 Kg
  • Air Temp. For Operation:-40ºC / +65ºC
  • Doesn't include: Remote Control
  • Warranty:3 Years
  • Certifications:CE & RoHS, UKCA

Our advantages

  • Team of experts at your service

    Personal customer service

  • 24-hour express delivery

    Stock of more than 12,000 references

  • Warranty up to 5 years

    Our professionals guarantee you the highest quality and reliability

  • Best price guarantee

    Compared to the most outstanding websites in the industry

Description

DALI Dimming IP65 for Smart UFO LED High Bays, conforms to the DALI IEC 62386 protocol. It is a perfect analogue-to-digital converter to transform the analogue signal of the 1-10V drivers into a Da+/Da- digital signal. In this way we can adapt any 1-10V luminaire so that it can be controlled by a DALI interface. The output of the 1-10V driver should have only 2 dimming wires.

DALI (Digital Addressable Lighting Interface) is a common interface that allows us to dim, program on/off, automate and generate timers. A DALI network consists of a DALI controller and one or more DALI Drivers. The DALI protocol allows grouping in up to 16 groups and includes 64 IP addresses. It is useful for saving energy and adapting to different scenarios.
