Twilight Sensor + Motion Sensor + Base Kit for a UFO LED High Bay

Twilight Sensor + Motion Sensor + Base Kit for a SAMSUNG UFO LED High Bay

Ref: 3275 / KT-BSSNSMVCR-HE

Before

Price not available

Would you like us to call you?
FREE

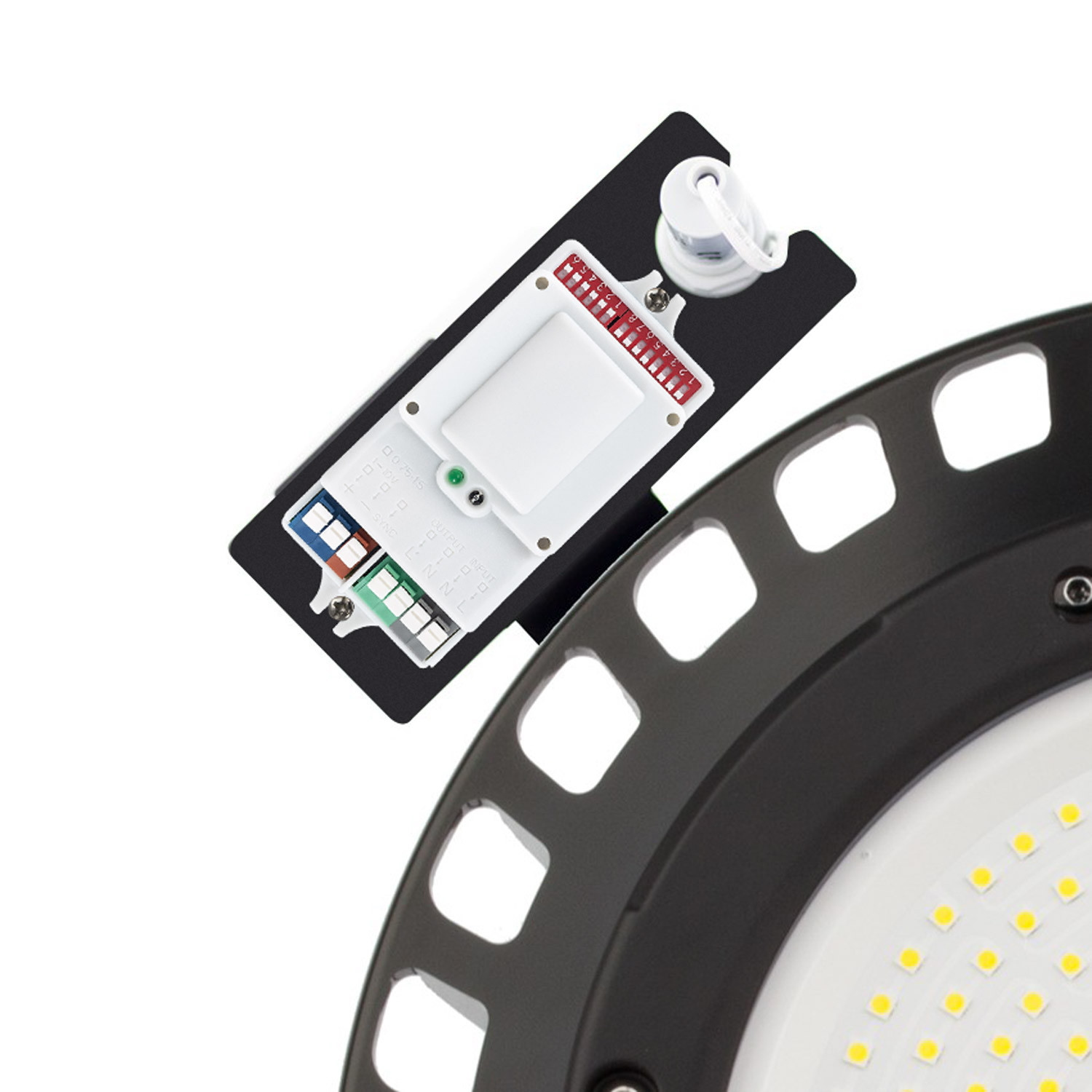

Twilight Sensor + Motion Sensor + Base Kit for a SAMSUNG UFO LED High Bay

Ref: 3275 / KT-BSSNSMVCR-HE

  • 1-10 V
  • 360º
  • IP20
  • 50-60 Hz
  • 5 Years
  • UKCA
  • Aluminium, PC
  • Indoor

Similar products

Description Twilight Sensor + Motion Sensor + Base Kit for a SAMSUNG UFO LED High Bay

This Kit includes a support, a Twilight Sensor and a Motion Sensor.

The Motion Sensor turns our luminaire ON when it detects movement within its range, returning to standby or power-saving mode when the movement is no longer detected, saving on energy consumption.

Its detection range can be configured, as with its on-time (period in which the luminaire remains 100% lit after no movement is detected), its standby or power-saving mode, the brightness of the standby or power-saving mode (50%, 40%, ...) and its light detection mode (the luminaire can be programmed to light up if ambient light is low enough). It has a detection distance of up to 8 metres, a 150º angle when installed on walls and a 360º angle when installed on ceilings.

With a 360º detection radius and a 1-100% dimmable flow, this twilight sensor is compatible with luminaires equipped with dimmable 1-10V Drivers. It works gradually, increasing and decreasing brightness in accordance with the ambient light it receives (this function can be modified so that you may choose how much ambient light makes the luminaire turn on). So, as ambient light decreases, the sensor increases the brightness of the luminaire and vice versa, as ambient light increases, the brightness of the luminaire decreases, allowing you to have constant, appropriate light that's extremely efficient.

The support is made from iron.

Perfect for installing in industrial warehouses, offices, supermarkets, aisles, etc.

Measurements:

  • Support: 145x40 mm
  • Motion Sensor: 100x50x25 mm
  • Twilight Sensor: Ø20x70 mm



*Compatible with SAMSUNG UFO LED High Bays.



Characteristics Twilight Sensor + Motion Sensor + Base Kit for a SAMSUNG UFO LED High Bay

Frequency: 50-60 Hz
Dimmable: 1-10 V
Beam Angle: 360º
Use: Indoor
IP Protection: IP20
Material: Aluminium, PC
Working Temperature: -35 ºC ~ +70 ºC
Warranty: 5 Years
Certifications: UKCA, CE & RoHS
Brand: SAMSUNG
