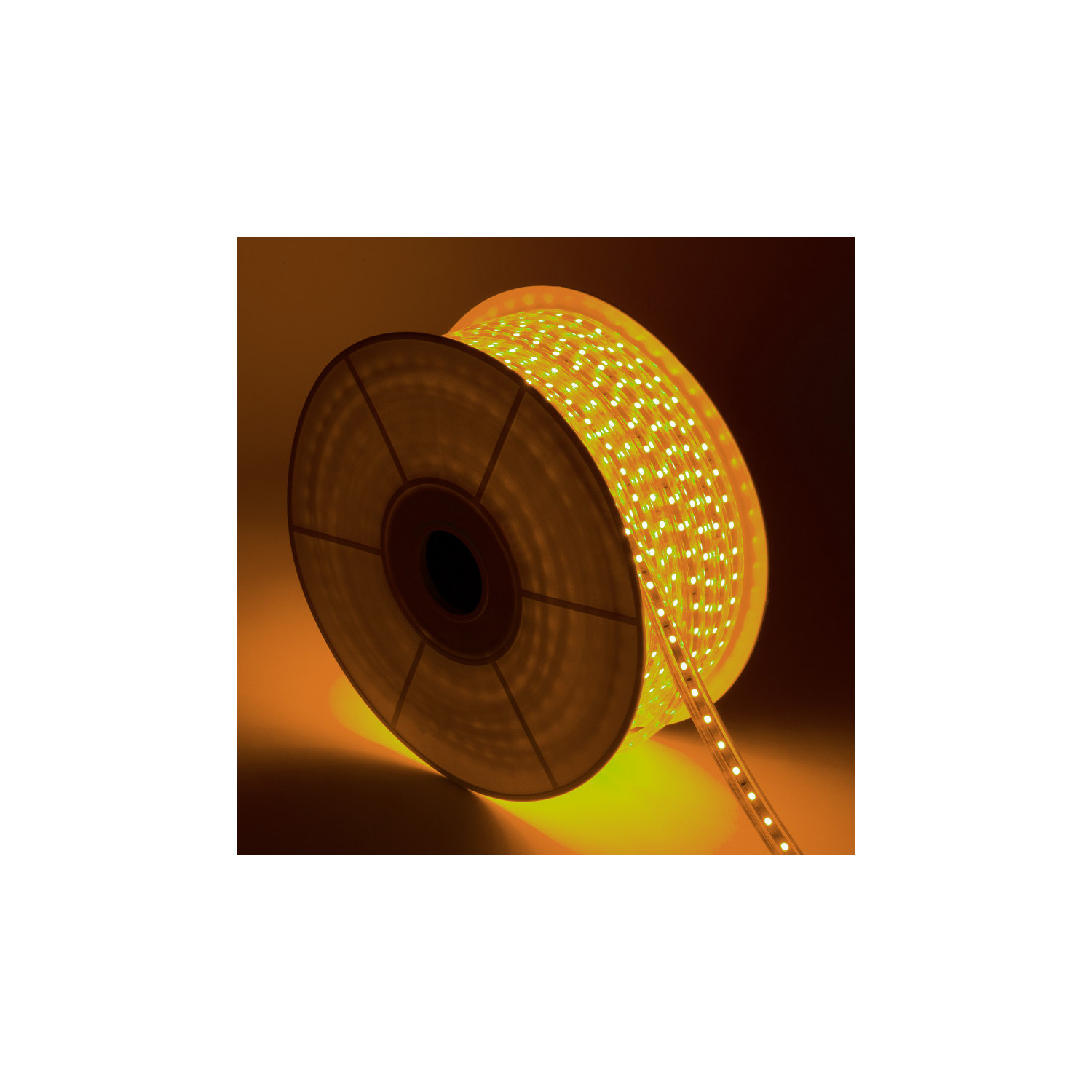

Orange LED Strip Dimmable 220V AC 100 LED/m IP67 Custom Cut Every 25cm
Price
Before €
€
Price not available
Ref: 87950 / KK-BTL-220-2835-100LM-RNG
The Dimmable Orange LED Strip 220V AC 100 LED/m IP67 Custom Cut Every 25cm does not require any power supply as it is connected directly to the mains by means of a rectifier cable. Its flexibility allows it to adapt to almost any surface.
Features of the Dimmable Orange LED Strip 220V AC 100 LED/m IP67 Custom Cut Every 25cm
The 100 LED/m SMD 2835 LED strip consumes only 7W per metre. Manufactured with top quality materials, it offers maximum protection against solid external agents and magnificent protection against liquids, which is summarised in the IP67 protection factor of the strip, making it suitable for both indoor and outdoor use.
With the Dimmable Orange LED Strip 220V AC 100 LED/m IP67 Custom Cut Every 25cm includes a rectifier cable and a strip end cap, parts that it is recommended to protect properly, with some silicone or a suitable type of sealant, so that the IP67 protection is not compromised. A maximum of 50 metres of LED strip can be connected to a rectifier.
If the strip is going to be cut, it must be taken into account that the Dimmable LED Strip Reel 220V AC 100 LED/m 50m Orange IP67 Cut every 25 cm can only be cut in complete 25 cm sections and only in the authorised area. Its great flexibility means that it can be adjusted to the particularities of the space or element to be illuminated, although it is not possible to make right angles or acute angles.
Applications of the Dimmable Orange LED Strip 220V AC 100 LED/m IP67 Custom Cut Every 25cm
The Dimmable Orange LED Strip Dimmable 220V AC 100 LED/m IP67 Custom Cut Every 25cm makes it widely used as secondary lighting and/or decorative element on facades, ceilings, showcases and cabinets, shelves, shop windows, pictures and mirrors, and even for staircase and corridor marking. The options are endless.
*For correct operation and to avoid incidents, the connections must be protected with an insulating element against humidity and water.
*LED strips should never be switched on when they are wound up, as this could cause overheating and burn out the LEDs.
Power: | 7 W/m |
Cut every: | 25 cm |
Led Strip Installation: | MAX. 50 m |
Voltage: | 220-240V AC |
Frequency: | 50-60 Hz |
Protection Class: | II |
Dimmable: | TRIAC |
Light Source: | SMD2835 |
Number of LEDs: | 100 LED/m |
CRI: | 80 |
Lumens: | 785 lm/m |
Luminous Efficiency: | 112 lm/W |
Energy Efficiency 2021 (UE-1369/2017): | A+ |
Energy Efficiency 2023 (UE-2019/2015): | F |
Beam Angle: | 120º |
Use: | Outdoor |
IP Protection: | IP67 |
Size: | 7x14 mm |
Height: | 7 mm |
Width: | 14 mm |
Length: | 50 m |
Working Temperature: | -30°C ~ +50°C |
Includes: | Rectifier Cable |
Life Span: | 30,000 Hours |
Warranty: | 3 Years |
Certifications: | UKCA, CE & RoHS |
