Dimensions

Length1 m
Diameter17 mm

Downloads

Technical Data Sheet PDF
manual_tiras_led_6_idiomas
DoC_127185_266446

Certificates and Stamps

Technical Specifications

LED Features
- Defines the light tone, from warm white to cool white, measured in Kelvin (K).
  Colour Temperature6000K
- Estimated lifespan of the product before it loses performance. Based on optimal, non-continuous use, and measured in hours of operation under controlled conditions.
  Hours50.000 hours
- Light ColourDaylight
- Number of LEDs Per Metre120 led/m
- Power Per Meter8 W/m
Electrical Features
- Electrical Insulation ClassII
- Frequency50-60 Hz
- LED Strip Installation50 m
- Light SourceSMD2835
- Mains connectionRectifier
- Remote ControlNo
- Type Of DimmingTRIAC
- Voltage level required for the product to function correctly.
  Voltage Range220-240V AC
Mechanical Features
- Temperature range in which the product can operate optimally, ensuring its performance without overheating or damage.
  Ambient Working Temperature-20 °C~+50 °C
- Measurement at which the product can be cut.
  Cut Points100 cm
- The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
  IP RatingIP65
- LocationOutdoor, Indoor
Product Information
- CertificatesCE, RoHS, UKCA
- Guarantee3 years
- Product SeriesSFLEX17
Materials and Finishes
- ColourTranslucent White
- Fitting MaterialPVC, Silicone
- IncludesRectifier Cable
Driver Information
- WifiNo

Description

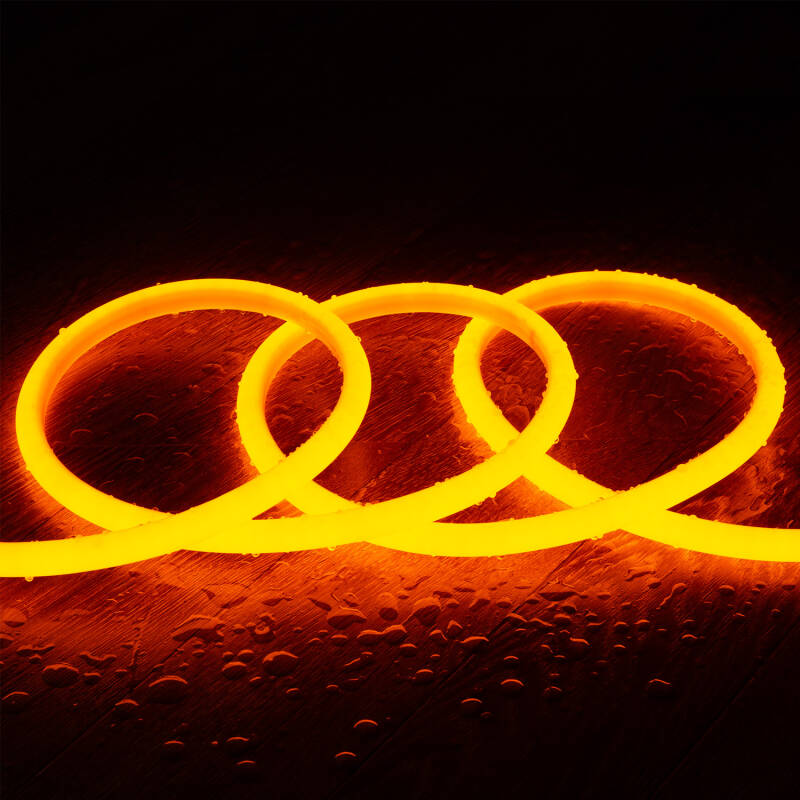

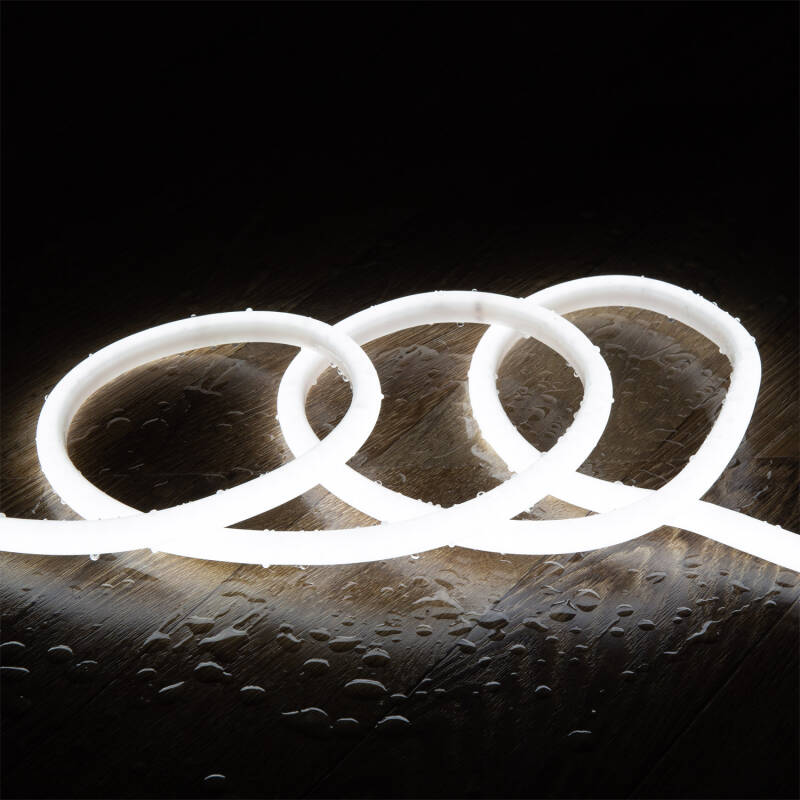

The 220V LED Neon Strip Dimmable Round SFLEX17 8W/m Cut at Every 100cm IP65 Custom Length is a lighting element with great decorative value.

Features of the 220V LED Neon Strip Dimmable Round SFLEX17 8W/m Cut at Every 100cm IP65 Custom Length

This type of strip features a coating with an opal finish that diffuses the light and recreates the look of classic neon signs. Its installation is extremely simple and requires no special tools. Made with high‑quality materials such as silicone, this strip is highly flexible, allowing it to adapt to all kinds of spaces such as corners, curves, logos, or signs—though it cannot be bent into sharp or right angles.

This neon strip can be cut every 100 cm at designated black marks along its length, enabling full adaptation to your project. These marks indicate the precise points where cuts must be made, ensuring each cut is accurate and safe. It must never be cut outside these marks; otherwise, that section will become completely unusable.

The Dimmable 220V Circular SFLEX17 IP65 Neon LED Strip – Custom Cut Every 100 cm brings a fresh new approach to decorative lighting. In addition, its weather resistance makes it ideal for both indoor and outdoor spaces. Available in a wide range of colors in our effectLED online store.

Compatible with all accessories from the SFLEX17 range.

For proper operation and to avoid issues, connections must be protected with an element that insulates against moisture and water.

Neon strips should never be powered while rolled/coiled up, as this may cause overheating and damage the LEDs.

This product is custom‑made according to your specifications and is therefore exempt from the right of withdrawal.

It is recommended not to power more than 50 m continuously from a single controller.

For optimal performance, it is recommended to install neon strips in ventilated areas, away from direct sunlight, and to ensure temperatures do not exceed 40 °C.
