In this guide we explain how to connect a LED spotlight with motion sensor in a technical and safe way, ensuring optimal system performance.
Table of Contents
What is an outdoor LED spotlight with motion sensor?

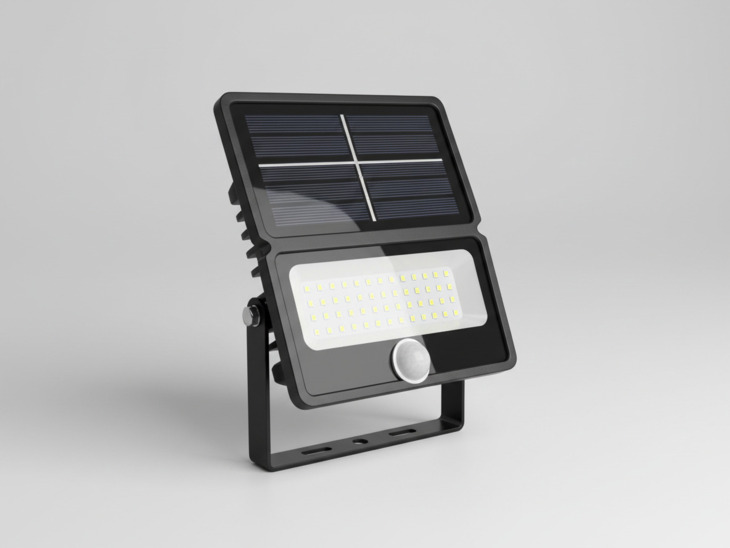

Within the range of LED flood lights there are different variants, and one of them is the one that incorporates the motion sensor. This type of luminaire integrates a detector that automatically activates the lighting when it detects thermal variations generated by people, vehicles or moving objects within its range of coverage.
The LED spotlight with motion sensor is especially used in:
- Facades: In residential or commercial facades, this is mainly used to illuminate accesses and doors when it detects presence. Its automatic activation improves security, acts as a deterrent to intrusions and facilitates visibility at night without the need to keep the light on continuously.
- Parking lots: In parking lots and garages, this system allows the lighting to be activated only when it detects vehicles or people in motion. This significantly reduces electricity consumption compared to permanent lighting systems, improves visibility during maneuvers and increases safety in areas with intermittent traffic.
- Industrial buildings: In industrial environments, the floodlight is used at entrances and outdoor perimeters where constant illumination is not required. Its use optimizes energy consumption during night shifts or periods of low activity, ensuring immediate illumination when operator or vehicle movement is detected.
- Gardens and perimeter areas: In gardens and residential perimeters, it reinforces security by detecting presence in lateral or not very visible areas. In addition, it provides convenience by automatically turning on when people pass by, avoiding switches and reducing unnecessary energy expenditure.
- Homeowners’ communities: In residential communities, this type of projector is installed in garage entrances and common areas. Its automatic activation improves the perception of security among neighbors and reduces community electricity costs by preventing luminaires from remaining on all night.
If you have doubts about how to choose a LED spotlight with motion sensor, we leave you here an explanatory guide where we detail its characteristics and the key aspects that you should take into account before installing it.
Why is it such an efficient solution?
This type of floodlight combines high luminous efficiency with an intelligent automatic switch-on system that only activates when it detects presence. This considerably reduces unnecessary operating hours, optimizes energy consumption and prolongs the life of the equipment. In addition, by illuminating immediately upon any movement, it improves visibility, reinforcing security at entrances and outdoor areas.
Recommended products
In Stock, delivery in 16-21 days
22.79 £
Solar 5W LED Floodlight with Motion & Twilight Sensor IP65
View product
In Stock, delivery in 24/48h
41.99 £
Solar 10W LED Floodlight IP54 with PIR Motion & Twilight Sensor
View product
In Stock, delivery in 24/48h
22.89 £
S2 50W LED Floodlight 120lm/W IP65 with Motion Sensor
View product
In Stock, delivery in 15-20 days
21.19 £
Solar 6W LED Floodlight IP54 with PIR Motion & Twilight Sensor
View product
Necessary Components for Installation
Before making the connection, it is essential to correctly identify the elements of the system:
LED spotlight with sensor
The equipment already incorporates:
- Sensor: It is in charge of detecting movement. It works by identifying changes in the infrared radiation emitted by people, vehicles or objects with a temperature different from the environment. When it detects a variation within its configured angle and range, it sends the signal for the projector to turn on automatically.
- Control electronics: Receives the sensor signal and manages when to activate or deactivate the spotlight according to the configured parameters. In addition, it stabilizes the general operation of the equipment and coordinates the switching on with the LED driver, avoiding erratic activations or flickering.
- LED Driver: It is the component in charge of transforming the alternating current into stable direct current suitable for the LED chips. It regulates the voltage and intensity to guarantee an efficient operation, without overloads and with a longer life of the LED module.
- Dimming system (TIME, LUX, SENS): Allows adjusting the behavior of the projector according to the needs of the installation.
Electrical protection
Adequate electrical protection is essential to ensure a safe and durable installation. We recommend that the circuit be protected by a differential switch against possible shunts or indirect contacts. In outdoor installations, it is essential to use a watertight junction box and cable glands that ensure the IP degree of protection of the unit, preventing the entry of humidity or dust that could compromise the operation of the equipment.
Installation Process
The following is a clear explanation of the technical procedure following professional criteria.
- Cut off power
Before carrying out any manipulation in the installation, it is essential to cut off the power supply from the main panel, disconnecting the magnetothermal corresponding to the circuit where you are going to work. Once lowered, the absence of voltage must be checked to ensure that no current is circulating. You should never work with active tension, as it is one of the most common mistakes in domestic installations and poses a real risk.
- Prepare the wiring
Inside the connection box you will usually find three conductors: brown or black, which corresponds to the phase (the cable that brings in the current); blue, which is the neutral; and green/yellow, which is the earthing. Before connecting the LED flood light with motion sensor, lightly peel off the tips if necessary and make sure that the copper is clean and firm, avoiding loose threads that could cause false contacts or derivations.
- LED projector connection
On the back of the light you will find a patch or eraser with three clearly identified connections. Just insert each cable into its corresponding terminal and make sure it is securely attached. The key in this type of LED flood light is that the detector is already internally wired to automatically interrupt the phase when it detects presence. With these three cables properly connected, the system is installed and ready to run.
- Correct mechanical fastening
The physical installation of the flood light is as important as the electrical connection. Secure the stand firmly on a solid, stable surface, ensuring that the focus is tilted slightly downward to optimize the light beam and sensor detection. In addition, check that the joints and fasteners are properly sealed to maintain the IP protection degree. A firm and well-executed fastening prevents vibrations, leaks and helps to prolong the life of the equipment.
- Adjust the sensor
Once the current is connected, the flood light will activate when motion is detected. This control system is key to optimize performance, avoiding unnecessary igniters and maximizing energy savings.
Our spotlights can be adjusted:
| TIME | Time that remains on after the last detection |
| LUX | Ambient light level at which it is activated. If set to minimum, it will only work at night. |
| SENSITIVITY | Sensitivity or detection distance. A professional setting avoids unnecessary switching on and optimizes energy savings. |
Common connection errors
Although the connection of LED spotlight with integrated motion sensor is a simple process, there are frequent mistakes that can affect its operation, such as not connecting the grounding, not sealing the cable entry correctly compromising the IP rating, installing the spotlight at an inadequate height, orienting the sensor towards heat sources or placing it in front of reflective surfaces. These practices can cause constant activations, erratic operation or even reduce the lifetime of the equipment, affecting both the efficiency and safety of the installation.
Professional technical recommendations
For maximum performance, we recommend installing it at a height of approximately 2 to 3 meters, ensuring that the detection angle is free of obstacles that may interfere with its operation. It is essential that the equipment has a minimum protection rating of IP65 to ensure resistance to dust and humidity outdoors. In addition, we recommend a color temperature of 4000K to improve visibility and the perception of security, as well as sizing the power correctly according to the space to be illuminated, avoiding unnecessary excess consumption. If you have doubts about what is the right power for your outdoor LED floodlight, we leave you a guide that can help you choose the most suitable option according to the model and lighting needs.
When is it advisable to hire a professional?
Although we have clearly explained how to connect it, it is advisable to call in a specialized installer when it is necessary to modify the electrical panel, when working at heights or when the installation is in an industrial environment. In these cases, an inadequate intervention can compromise both the safety and the correct functioning of the system.
A professional installation guarantees real electrical safety, greater equipment durability and optimum energy efficiency. Having specialized technicians not only minimizes risks, but also ensures that the projector operates with maximum efficiency and reliability in the long term.
Keys to Optimal Performance
The correct connection of this type of LED floodlight is simple and highly efficient if done properly. Properly installed equipment improves safety, reduces energy consumption and provides intelligent automation in any outdoor environment. However, before installation it is also essential to correctly define the type of outdoor LED floodlight you need.
In addition, an installation carried out according to appropriate technical criteria guarantees stable operation and prolongs the life of the system. A commitment to correct execution from the start is the key to obtaining maximum performance and reliability in the long term.
